- Page 1 PECTRADYNAMICS, ERFORMANCE ISTRIBUTION MPLIFIER PD10-RM-B 220VAC PERATING ANUAL / PECTRADYNAMICS, NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com se habla español...

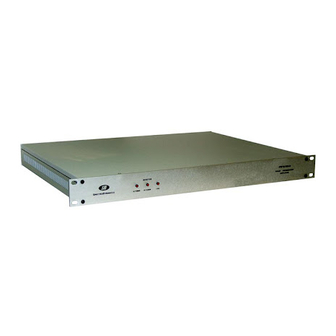

- Page 2 PD10-RM-B Description The PD10-RM-B is a TTL pulse distribution amplifier that accepts one input and provides ten outputs. The outputs are designed to drive low impedance loads and long 50 or 75-ohm cables. The propagation delay through the amplifier is typically 10 ns.
-
Page 3: Safety And Preparation For Use
To operate the unit, locate the AC power entry connector on the rear panel and connect the power cable. When power is applied to the unit, a red led located on the front panel, labeled “AC Power”, should light up. Copyright © SpectraDynamics, Inc. 2005... - Page 4 DC Power LED The LED is on when DC power is applied to unit and the unit is operating properly. 1PPS LED The LED will flash on the falling edge of the 1 PPS output signal. Copyright © SpectraDynamics, Inc. 2005...
-
Page 5: The Back Panel
Pulse input. The input signal should conform to TTL levels. Outputs Distribution amplifier output. The outputs are designed to drive 50 ohm cables. The outputs provide a 2 volt peak-to peak signal into a 50 ohm load. Copyright © SpectraDynamics, Inc. 2005... -
Page 6: Specifications
Propagation delay 50 ohm load Differential delay Channel - Channel Impedance input 1000 Ohms output High level 50 ohm load Low level 50 ohm load Temperature-delay 0 - 50 ºC ps/ºC Coefficient 25 - 35 ºC Copyright © SpectraDynamics, Inc. 2005... - Page 7 This warranty shall be in effect for one (1) year from the date a PD10-RM-B is sold by SDI. SDI makes no other warranty, express or implied, and makes no warranty of the fitness for any particular purpose. SDI’s obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or consequential damages or delay.
