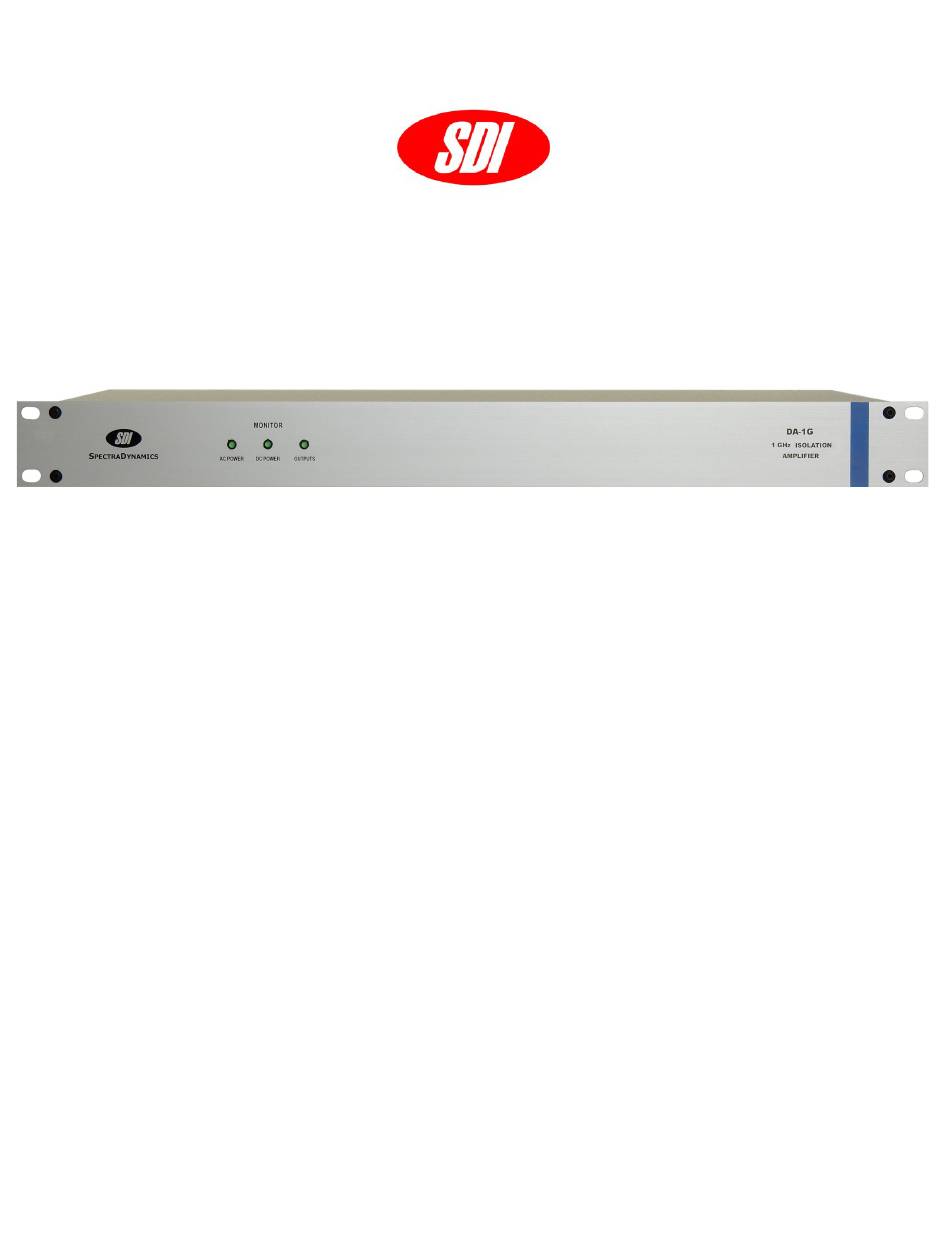

- Page 1 PECTRA YNAMICS DA-1G 1 GHz D ISTRIBUTION MPLIFIER PERATING ANUAL SPECTRADYNAMICS, INC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...
- Page 2 DA-1G 1 GHz Distribution Amplifier Operating Manual Copyright © 2022 SpectraDynamics, Inc. All rights reserved. DA-1G:2022MD...
-
Page 3: Table Of Contents
Contents Introduction ……………………………………………………………………..1 Safety and preparation for use ………………………………..……….…….. 2 2.1 Electrical ……………….…………………………………………….……. 2 2.2 Instrument ……..…………….………………………………….….…….. 3 Front panel description …….…………………………………………….…… 4 Back panel description ………………………………………………….……. 5 Installation ……………………………………………………………….…….. 6 Operation ……………………………………………………………………… Troubleshooting ………………………………………………………………. 8 Specifications …………………………………………………………………. 9 Warranty and service …………………………………………………………... -
Page 5: Introduction
The inputs and outputs are chassis grounded. The DA-1G is designed to be powered by a 100 to 240 VAC mains source or by a +12 to +36 VDC for instruments acquired with the DC power option. If both AC and DC sources are powering the instrument, the DC source will be used as backup power in case of AC power outages. -
Page 6: Safety And Preparation For Use
2.0 Safety and Preparation for Use The DA-1G was designed for indoor use only and is not intended for operation outdoors or in a wet environment. The instrument may be mounted in a standard 19-inch instrumentation rack or may be used on a laboratory bench. -
Page 7: Instrument
DC disconnect means for the instrument. 2.2 Instrument Safety and Preparation for Use The DA-1G is designed to distribute RF signals with a frequency of 700 to 1100 MHz. Output levels below +7 dBm will trigger a fault condition which can be monitored from the front panel. -
Page 8: Front Panel Description
The monitor LED will be on if all RF outputs are greater than +7 dBm. RF signal levels less than +7 dBm will trigger a fault condition and the Monitor LED will not light up. However the DA-1G will still provide twelve buffered copies of the RF input signal. Page 4... -
Page 9: Back Panel Description
If the DC Power option is installed, this instrument may also operate on DC power from +12 to +36 VDC as the main power supply. When the DA-1G is set up to operate with both AC and DC power sources at the same time the DC power is used as backup power in case of AC power outages. -
Page 10: Installation
The instrument may be mounted in a standard 19-inch instrument rack or may be operated on a laboratory bench. Connecting Power The DA-1G ships with a standard North American, European, or Chinese IEC power cord. Locate the AC POWER entry module on the rear of the enclosure and connect the power cord. -
Page 11: Operation
AC to DC power supply to ensure uninterrupted continuous operation. Once AC power is supplied to the DA-1G, the LED on the front panel labeled AC POWER will turn on. If you also applied DC voltage, the LED labeled DC POWER will also turn on. -
Page 12: Troubleshooting
RF input signal. If the instrument is providing the copies of the input signal you may continue using the DA-1G. If the power level of the RF signal provided is greater than +7 dBm and the Monitor LED remains off, the instrument will have to be returned for repair. -
Page 13: Specifications
8.0 Specifications PARAMETER CONDITIONS UNITS Output power level 1 dB compression Bandwidth +/- 1 dB 1100 Gain @ 1 GHz -0.5 Impedance Input Ohms Output Return loss Input (S11) 1 GHz Output (S22) 1 GHz Distortion +10 dBm Isolation Output to output Output to input Phase noise 1 Hz... -
Page 14: Warranty And Service
SDI’s option, any product not meeting the said specifications. This warranty shall be in effect for one (1) year from the date a DA-1G is sold by SDI. SDI makes no other warranty, express or implied, and makes no warranty of the fitness for any particular purpose. - Page 15 EC Declaration of Conformity The DA-1G distribution amplifier has been designed and manufactured in accordance with the below referenced Standards and complies with all essential requirements of the Directives listed below. Directives: 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonization of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.
