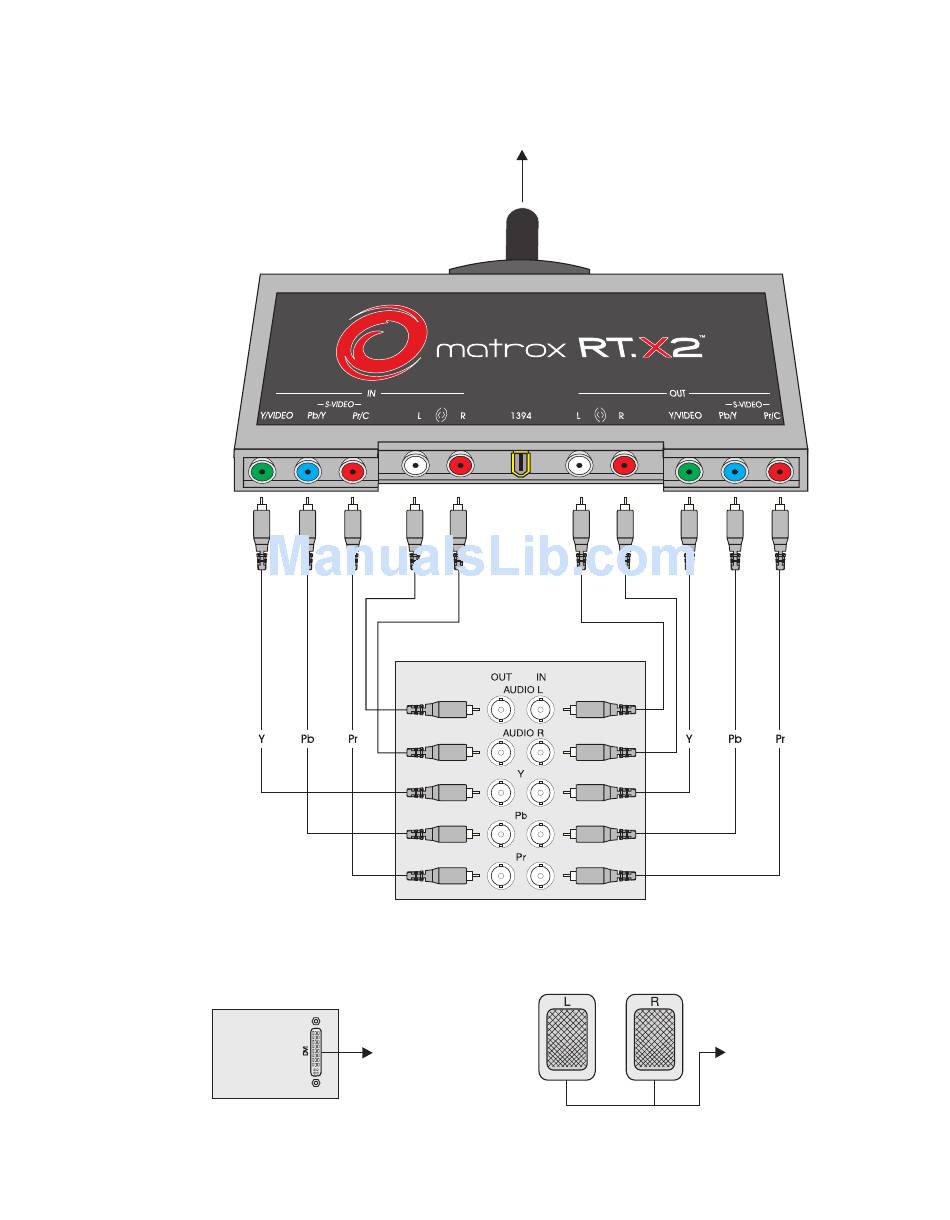

Analog component connections using same
device for capture and export to tape
DVI monitor
To RT.X2 card
Source/Recorder
Computer speakers
To DVI connector
on RT.X2 card
(not available on
RT.X2 LE/SD)
To AUDIO
connector on
RT.X2 card
Typical Matrox RT.X2 connections
