Using the RT.X2 S-Video adapter cables

To support S-Video (Y/C) connections to your RT.X2 breakout box, your RT.X2
kit includes two S-Video adapter cables (one for S-Video input and one for
S-Video output).
¦ Note
won't be able to connect an analog component device at the same time.
° To use the RT.X2 S-Video cables:
For S-Video input, connect the S-Video adapter cable labeled Y to the Pb/Y
1
IN connector, and connect the S-Video adapter cable labeled C to the Pr/C
IN connector, at the front of the RT.X2 breakout box.
Connect the other end of the cable to the S-Video OUT connector on your
2
source device.
For S-Video output, connect the S-Video adapter cable labeled Y to the Pb/Y
3
OUT connector, and connect the S-Video adapter cable labeled C to the Pr/C
OUT connector, at the front of the RT.X2 breakout box.
Connect the other end of the cable to the S-Video IN connector on your
4
record device.

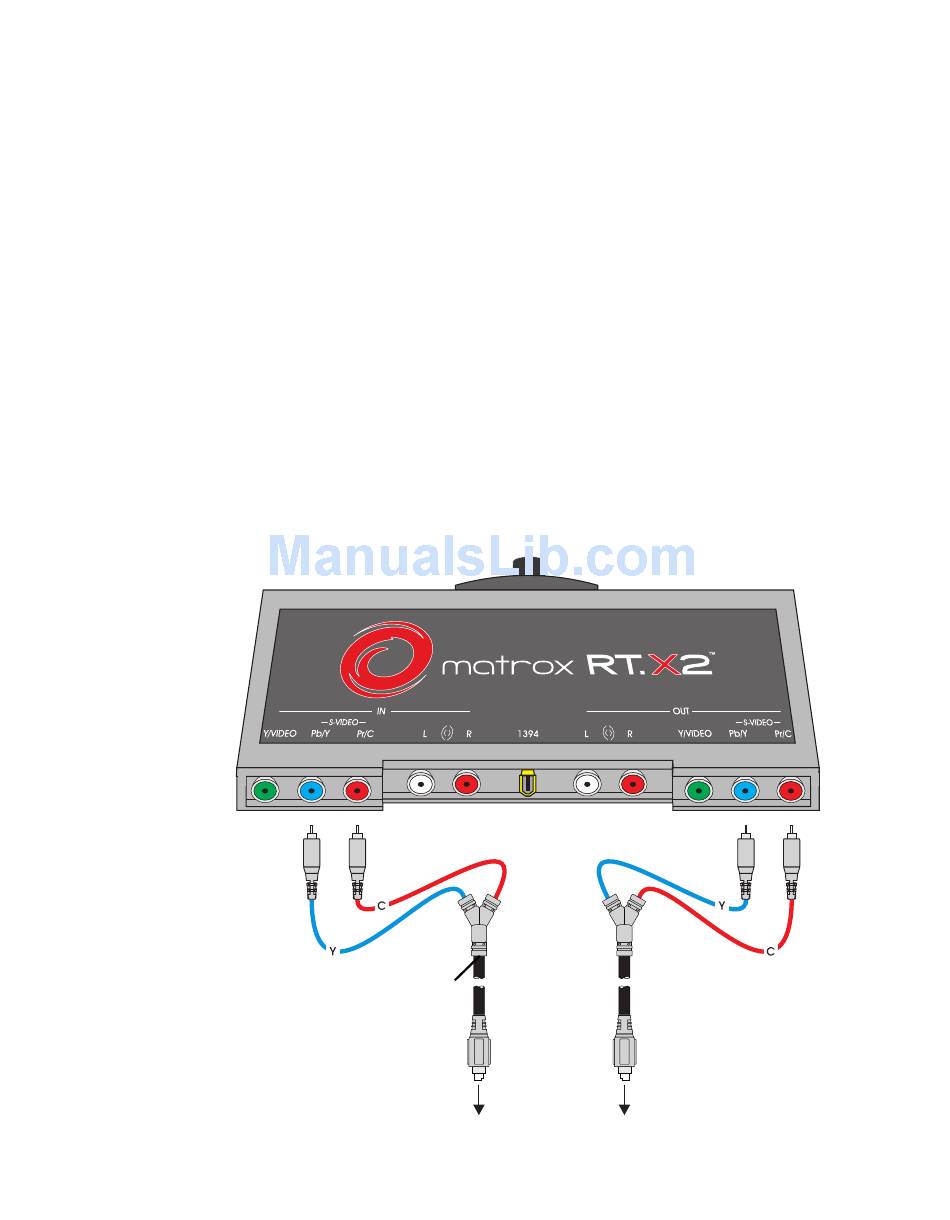

To S-Video OUT connector
on source device
When you connect an S-Video device to the RT.X2 breakout box, you
RT.X2 S-Video
adapter cable
To S-Video IN connector
on record device
Using the RT.X2 S-Video adapter cables
15
