16

Typical Matrox RT.X2 connections

Illustrations in the following sections show some typical audio and video
connections for capturing and exporting to tape. In these illustrations, we've
connected a DVI monitor to view the signal that is being captured or recorded,
and we're monitoring audio from the sound card to the computer speakers
(requires you to connect the small connectors to the corresponding jacks of your
computer's sound card, and your computer speakers to the AUDIO jack of the
RT.X2 card as explained on page 12).

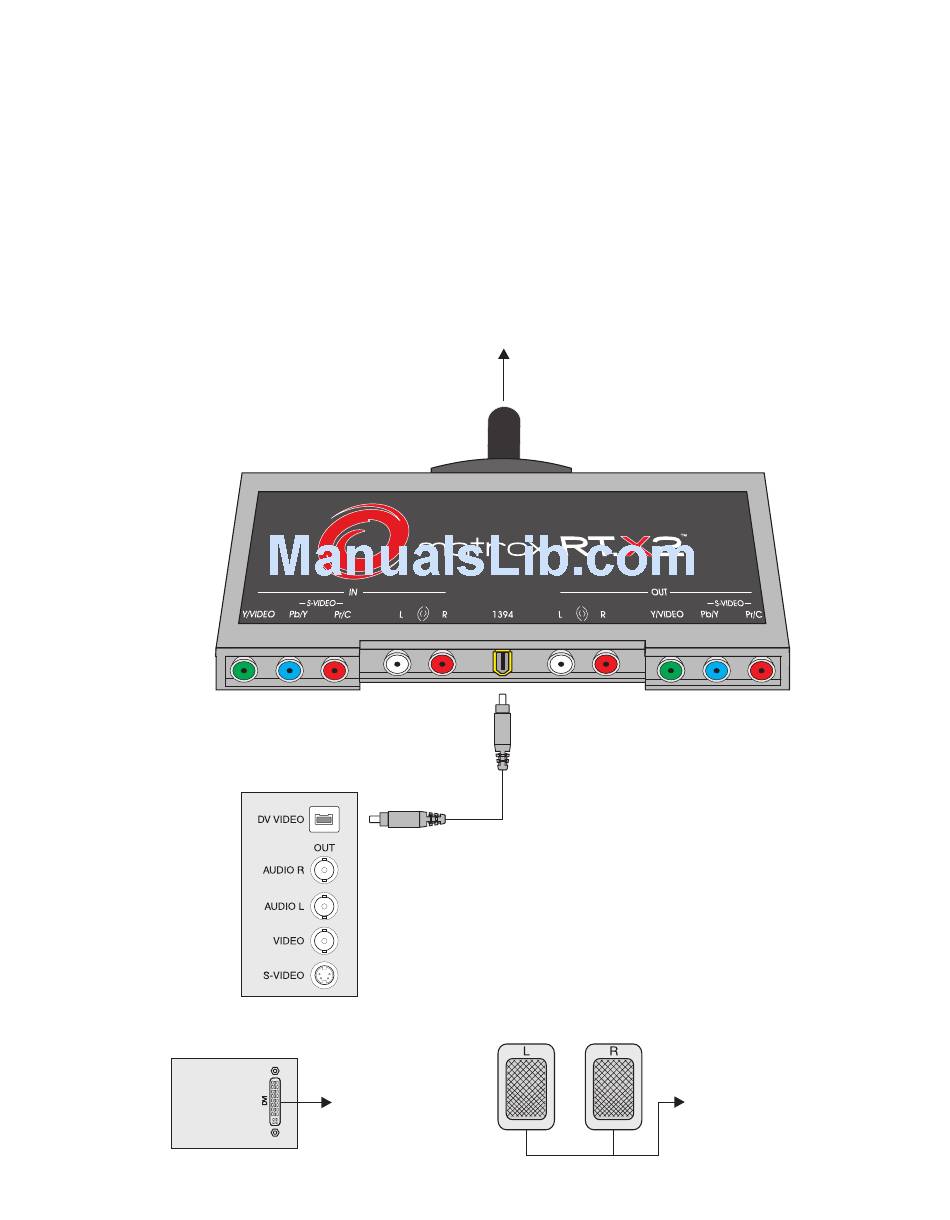

DV-1394 connections

DVI monitor
Chapter 3, Connecting External Devices to Matrox RT.X2
DV-1394 device
To DVI connector
on RT.X2 card
(not available on
RT.X2 LE/SD)
To RT.X2 card
Computer speakers
To AUDIO
connector on
RT.X2 card
