Operation, maintenance

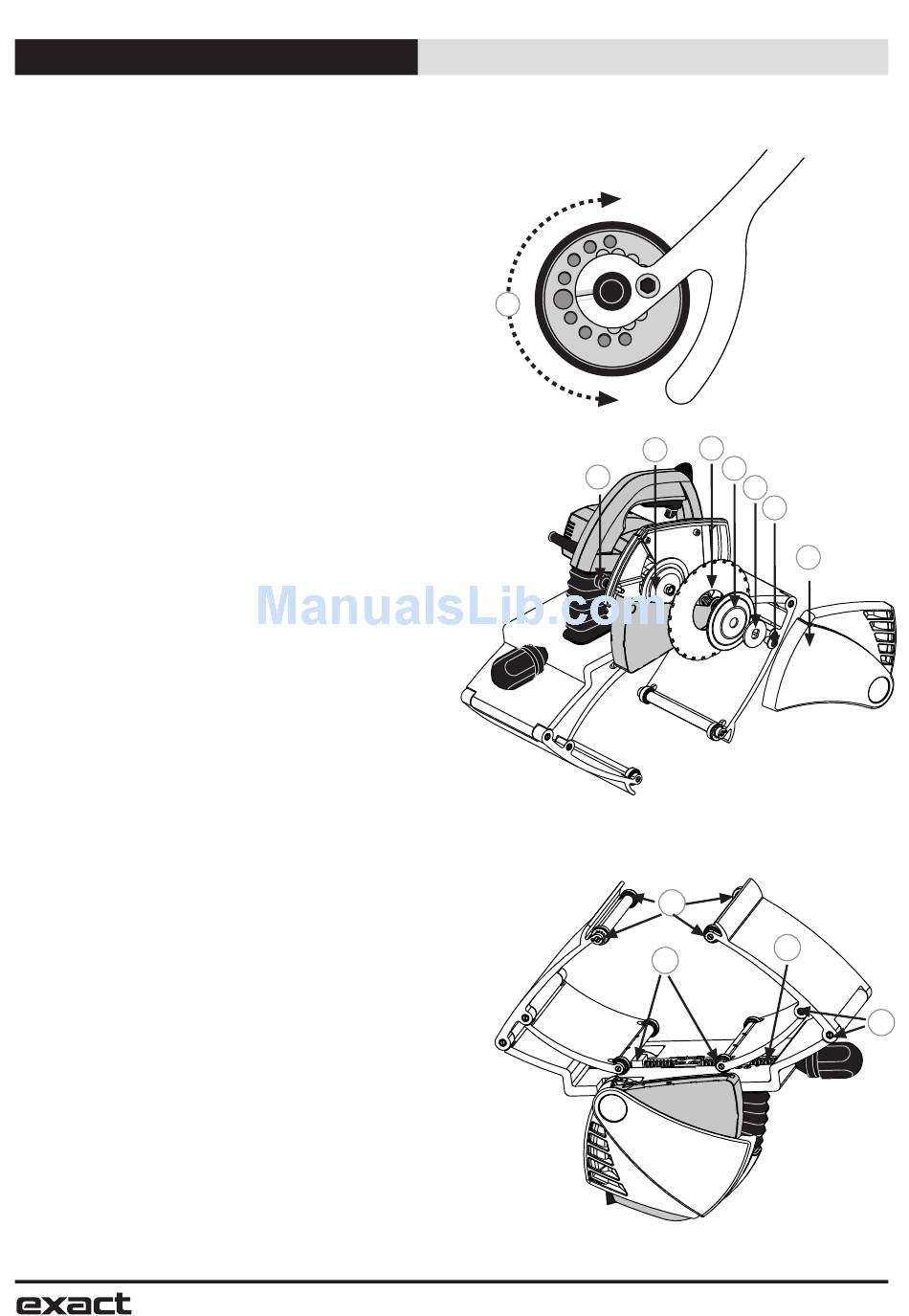

The wheel can be adjusted in 9 positions; mid position
and 4 steps to left and right. To adjust the wheel,
loosen the locking screw (Fig N/1) and turn the
wheel center clockwise or counterclockwise to the
desired position (Fig N/2), and lock the wheel again
(Fig N/3). If the blade has wandered too much to
the right, adjust wheel center clockwise. It the
misalignment is to the left, adjust counterclockwise.
The number of steps depend on the actual
misalignment. Remember to lubricate the adjusting
wheel at regular intervals.
Installing and changing the
saw blade
Remove the power plug from the socket. Check that
the motor unit is locked in the upper position.
Remove the blade guard cover (Fig. O/1) by opening
the two finger screws (Fig. O/2). Press the spindle-
lock button (Fig. A/11) and simultaneously rotate
the blade by hand until the spindle-lock button drops
a further distance of about 7 mm. Now the rotation
of the blade is prevented. Use the blade key to open
the blade attachment bolt. Remove the securing bolt
(Fig. O/3), the washer (Fig. O/4), the blade flange
disc (Fig. O/5), and the blade (Fig. O/6).
Before installing a new blade, check that both blade
flange discs are clean. Place a new or sharpened
blade on the back flange disc (Fig. O/7), so that the
marked side of the blade is facing outwards and the
arrows on the blade are facing in the same direction
as the rotation direction markings on the inside of
the blade case. Ensure that the new blade goes
right to the bottom in the back flange disc. Put the
blade flange disc, the washer, and the securing bolt
back in place. Press the spindle lock button and
tighten the blade securing bolt. Put the blade guard
cover back in place and tighten the finger bolts.
Maintenance and servicing
instructions
Remove the power plug from the socket before
servicing or cleaning the pipe saw. All maintenance
operations carried out on the pipe saw's electrical
components must be carried out at an approved
service agency.
Fig N
2
Fig O
2
Fig P
14
e n g l i s h
6
7
5
4
3
1
1
3
4
2
