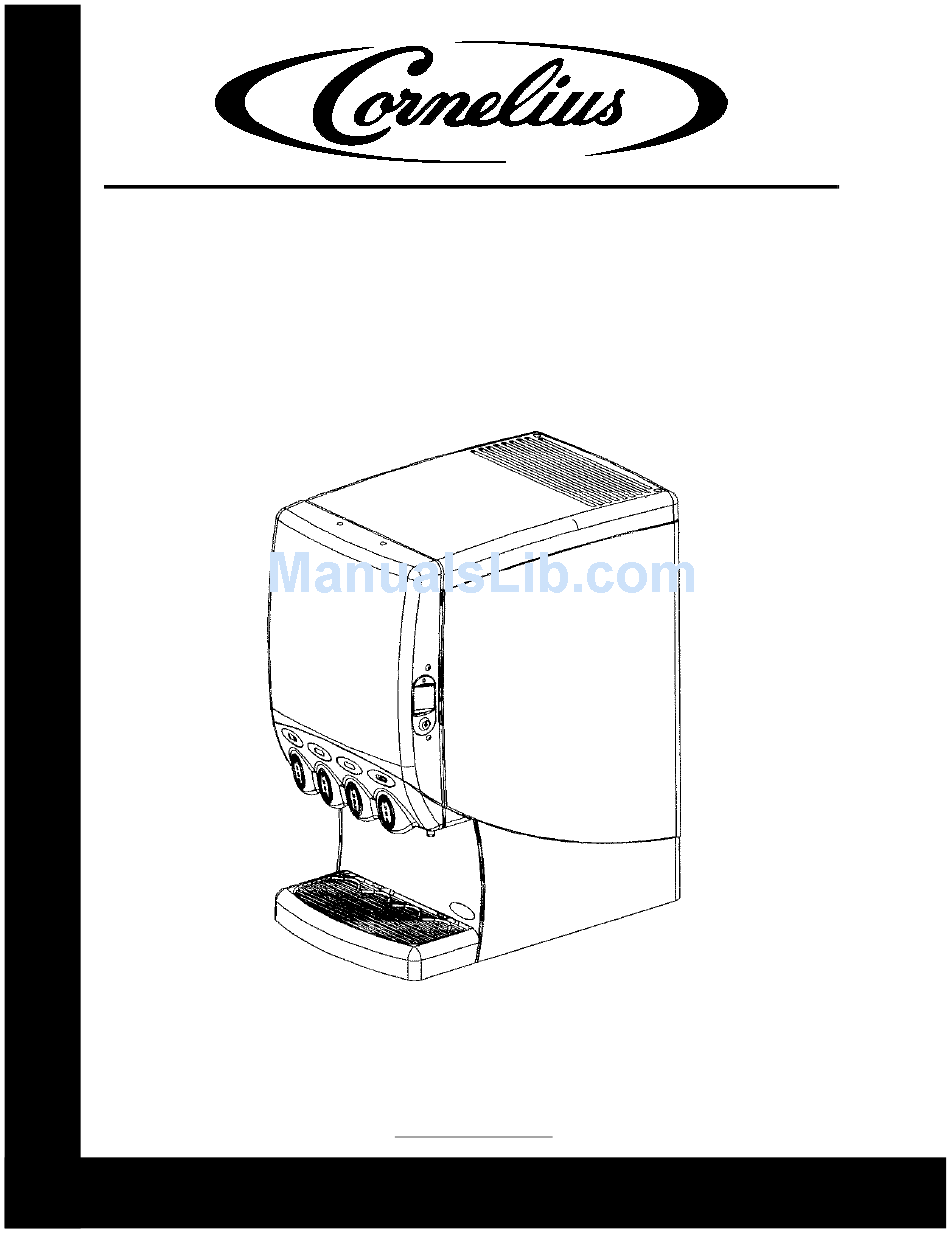

- Page 1 ® QUEST NT 4000 Service Manual Release Date: February 19, 2004 Publication Number: 720901117SER Revision Date: November 23, 2004 Revision: C Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.
- Page 2 800-238-3600 FAX:763-422-3297 FAX:800-535-4231 Trademarks and copyrights: Aurora, Cornelius, Decade, Hydro Boost, Sitco, Spirit, UF-1, Vanguard, Venture, Olympus, and Vista are registered trademarks of IMI Cornelius Inc. Optifill trademark is pending. This document contains proprietary information and it may not be reproduced in any way without permission from Cornelius.
-
Page 3: Table Of Contents
IMI CORNELIUS INC........ -
Page 5: Unit Specifications
3.0 ounces (88.7 ml) per second water flow, see part number 720901017 Rev. D for reference. Ice Bank/Pull Down: Weight 14-16 lbs. Pull Down: 3.5 - 5 hours at 75°F (24°C) © 2004, IMI Cornelius Inc. - 1 - Publication Number: 720901117SER... -
Page 6: Concentrate Handling & Loading
ONCENTRATE The Quest Juice Dispenser is designed to use either disposable juice concentrate containers or the optional Cornelius generic refillable container sold separately. Thoroughly shake concentrate prior to use. Place concentrate containers on the dispensing platform shelf inside the refriger- ated cabinet. -
Page 7: Brixing Procedure
• 1-Thermometer • 1-Refractometer Your will also need a flat blade screwdriver to turn a screw if brix adjustments are required. NOTE: The refractometer shown above, P/N 511004000, is available through your local Cornelius Distributor. HECKING DJUSTING THE ETTING The following instructions are for use with a refractometer. - Page 8 This will clear remnant drink from the dis- pense nozzle AND help move the flow control to its new setting. Publication Number: 720901117SER - 4 - © 2004, IMI Cornelius Inc.
-
Page 9: Planned Maintenance Schedule
Place the mixing chambers, nozzles, and static mixers in a separate container of sanitizing solution and agitate vigorously. Allow the parts to soak for two minutes. Rinse thoroughly with fresh tap water. Reinstall the static mixer, nozzles, and mixing chambers. © 2004, IMI Cornelius Inc. - 5 - Publication Number: 720901117SER... -
Page 10: Semi-Annual
If the Ice bath level is below the “Full” indicator, top it off with water. Refer to the Filling the Ice Bath procedure in the Installation section of this manual. Publication Number: 720901117SER - 6 - © 2004, IMI Cornelius Inc. -
Page 11: Annually
Do not use any tool other than your finger tips to manipulate the Fig. 2 tubing into the housing or you may damage the tube. © 2004, IMI Cornelius Inc. - 7 - Publication Number: 720901117SER... - Page 12 Insert the two concentrate delivery tubes into the pump tubing ends and secure them using the new hose clamps supplied in the kit. Be sure to use pliers to squeeze and tighten the hose clamps. Fig. 3 Publication Number: 720901117SER - 8 - © 2004, IMI Cornelius Inc.
-
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following pages contain trouble-shooting information intended to aid an experienced service person in diagnosing operational problems that may occur. For further assistance, contact the IMI Cornelius Technical Services department at 1-888-248-5568 (630-539-6850 outside the United States) between the hours of 7:30A.M. - Page 14 • Dispense/Flush lever in FLUSH • Move lever to DISPENSE posi- position tion • Concentrate too cold, not properly • Concentrate should be 35-40°F thawed (1.7-4.5°C) prior to loading Publication Number: 720901117SER - 10 - © 2004, IMI Cornelius Inc.
- Page 15 No power to transformer or no • Confirm transformer has line volt- 28VAC output from transformer age present on primary side. If no 28VAC output from the secondary replace transformer © 2004, IMI Cornelius Inc. - 11 - Publication Number: 720901117SER...
- Page 16 Disconnect the 4-wire harness (VRB) stuck on. from the lower right corner of the VRB. If the unit continues to dis- pense on its own the VRB is defective (relay stuck on) Publication Number: 720901117SER - 12 - © 2004, IMI Cornelius Inc.
-
Page 17: Diagrams
Quest Service Manual DIAGRAMS YSTEM IRING IAGRAM © 2004, IMI Cornelius Inc. - 13 - Publication Number: 720901117SER... -
Page 18: Main Electrical Box Wiring Diagram
Quest Service Manual LECTRICAL IRING IAGRAM Publication Number: 720901117SER - 14 - © 2004, IMI Cornelius Inc. -
Page 19: Spare Parts
Dispense Nozzle, Static Mixer, & O-Ring 720508801 Push Button Control Board 720508802 Portion Control Board 720511606 Ballast Board 720703502 Foam Gasket, Lower Door 720704001 Latch, Door 720501504 Condenser 720504904 Frame Assy, Base © 2004, IMI Cornelius Inc. - 15 - Publication Number: 720901117SER... -
Page 20: Quest Series Juice Dispenser - 230Vac (Based On 10 Machines)
720507101 Dispense Nozzle, Static Mixer, & O-Ring 720508801 Push Button Control Board 720508802 Portion Control Board 720511606 Ballast Board 720703502 Foam Gasket, Lower Door 720704001 Latch, Door 720501504 Condenser Publication Number: 720901117SER - 16 - © 2004, IMI Cornelius Inc. -
Page 21: Warranty
IMI Cornelius Inc. will repair or, at its option, replace the compressor. Labor charges and the cost of relays, overloads, and capacitors are not included. - Page 22 Quest Service Manual The table below will be used by IMI Cornelius Inc. as a STANDARD service call guide to determine fair and reasonable labor charges for warranty repairs. Charges in excess of these rates will be subject to review and/or adjustments.
- Page 23 IMI Cornelius Inc. www.cornelius.com...
