Installation Preparation; Tools And Materials Required; Remove The Packaging - GE Monogram ZV48T Installation Instructions Manual

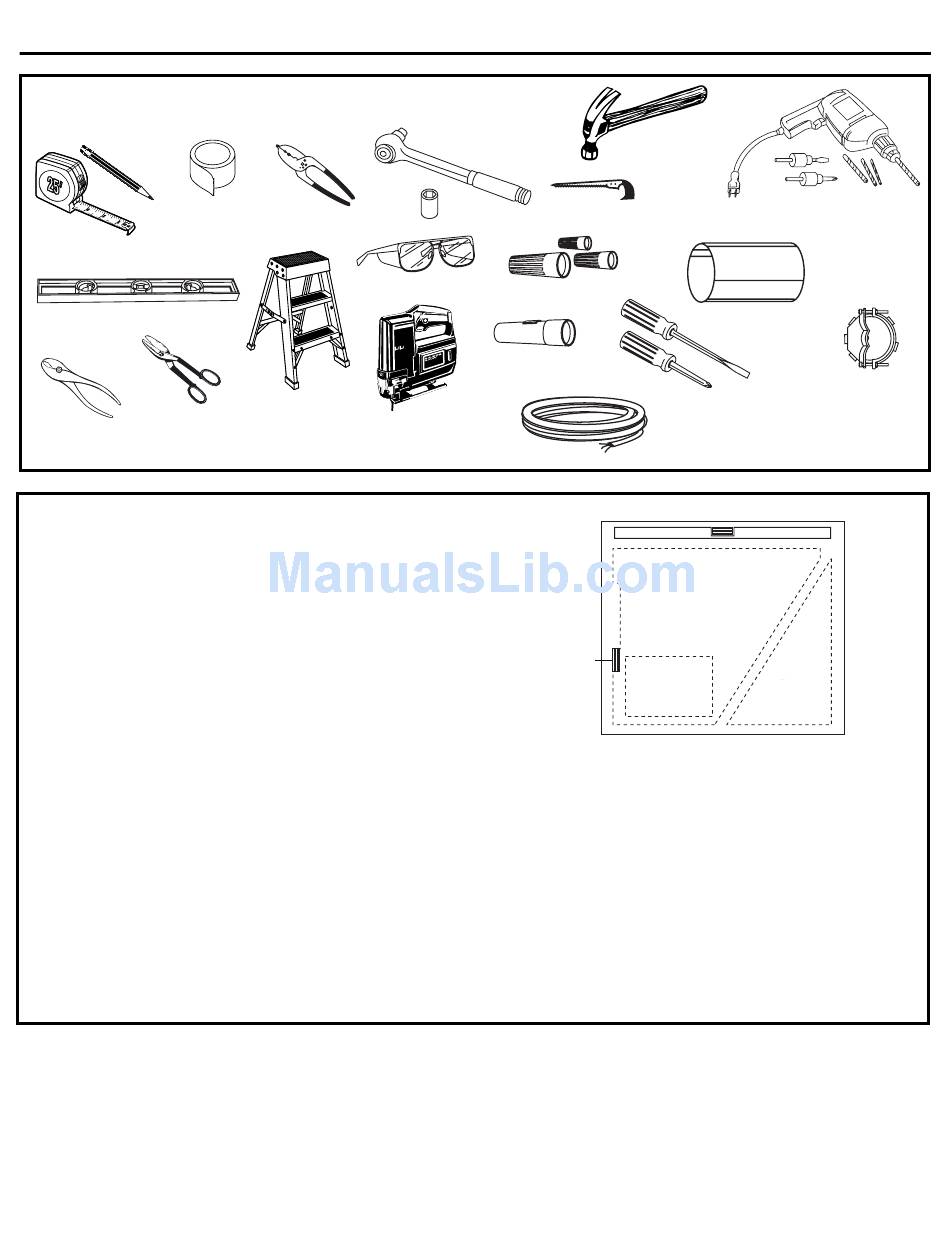

TOOLS AND MATERIALS REQUIRED

(NOT SUPPLIED)
Duct tape
Pencil and tape measure
Spirit level
Pliers
Metal Snips

REMOVE THE PACKAGING

• Lift out the wooden crossmember, as well as the top
protective carton.
• Lift out the four "L" shaped polystyrene protection
profiles.
• Remove the protection moldings around the smaller
carton box.
• Remove the small box housing the motor.
• Lift the hood out of the box.
CAUTION:
Lift the hood by grasping
the outside edges of the inlet opening of the hood.
Do not lift the hood by the exhaust opening divider—
damage will occur!

Installation Preparation

Wire cutter/stripper
Safety glasses
Step ladder
Saber saw
or Sawsall
Hammer
Key Hole Saw
Wire nuts
Flashlight
Wood
Mounting
Support
• Remove the shipping screws holding the wood
mounting piece to the back side of the hood.
Set aside the wood mounting piece and screws
for later installation. Do not discard.
• Remove the "V" shaped carton insert.
• Remove the parts package from the "V" shaped
cardboard insert.
• Remove the junction box cover and knockout.
• Install the strain relief onto the back or top of the hood.
• Remove all tape and packing material from the hood,
duct transition and motor.
8
Electric or battery operated drill
and 1/8", 3/8" bits
10" round metal
duct, length to
suit installation.
Phillips and flat
blade
screwdrdivers
Strain relief for
junction cover.
120V 60Hz. 15 or 20 Amp,
2-wire with ground. Properly
grounded branch circuit.
Hood
Motor Parts
Package
Shipping Carton
