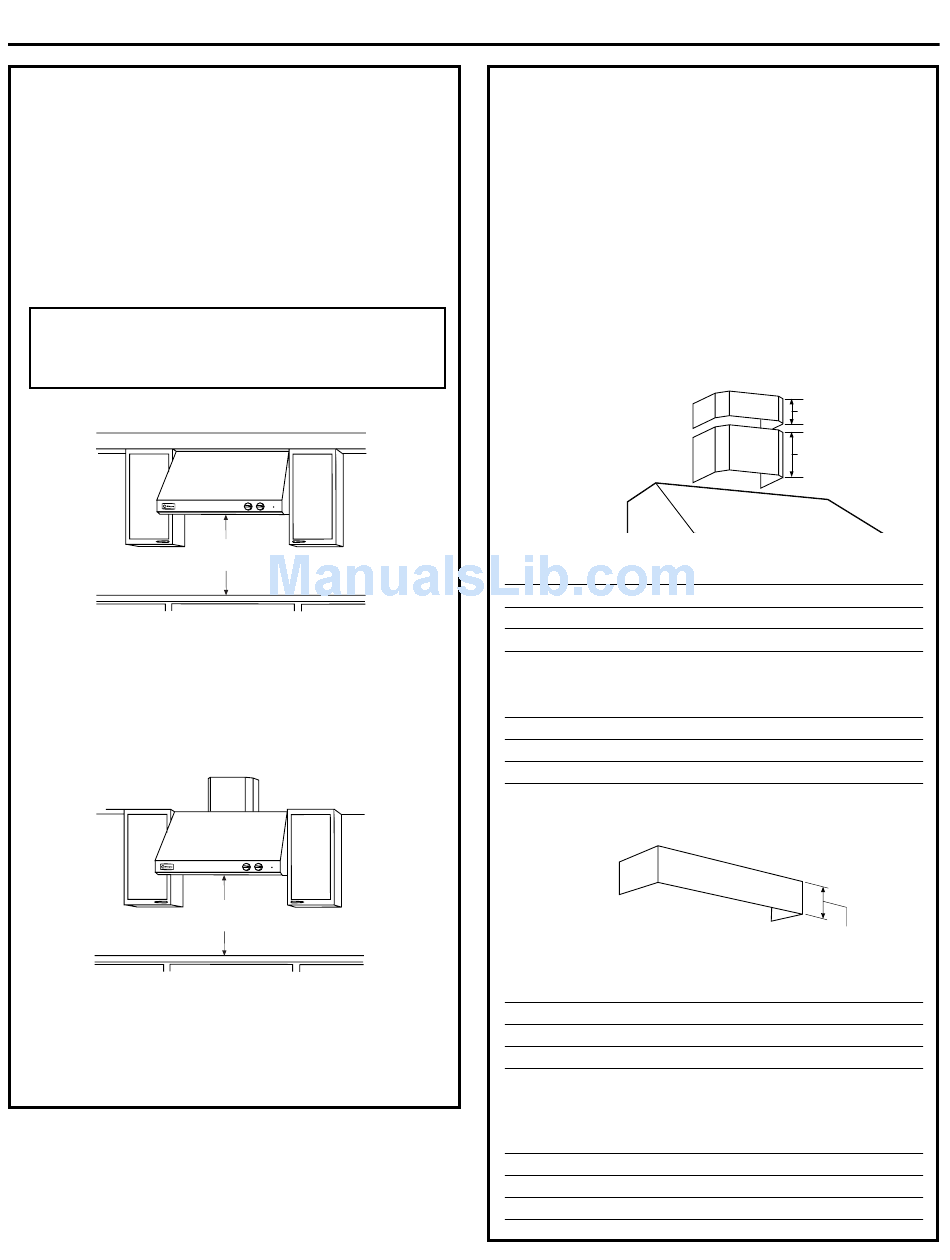

INSTALLATION CLEARANCES

These vent hoods are designed to be installed onto a
wall or beneath a soffit or cabinet.
• Install these hoods* 30" Min. to 36" Max. above the
cooking surface.
*These hoods may be installed 24" min. above a gas or
electric drop-in style cooktop. Always observe the 30"
to 36" clearance when installed over any professional
style cooktop or range.
Note: Clearances may vary due to type of cooking product and
local codes. Check with local inspectors to be sure standard is
applicable.
Soffit Installation
30" MIN.
36" MAX.
In this installation the ductwork running from the top
of the hood will be concealed in the soffit or upper
cabinetry.
Wall Mount Installation
30" MIN.
36" MAX.
For this installation, a decorative duct cover is
available to conceal the ductwork running from
the top of the hood. Use of the duct cover requires
special consideration to the installation height above
the countertop.
Advance Planning
SOFFIT
OPTIONAL DUCT COVER
ACCESSORIES
Standard and Full-Width decorative duct covers are
available in 6" and 12" heights. Duct covers may be
stacked, in various combinations, to conceal the
ductwork running from the top of the hood to the
ceiling.
• Before you begin, you should determine the
installation height of the hood and order the correct
size duct cover. The duct covers should be ordered at
the same time as the vent hood and be on site before
installation. Order the duct cover corresponding to
your model.
Standard Duct Covers
6" Duct Covers
Hood Model 6" Duct Cover
ZV48T, ZV48S ZX48DC6
ZV36T, ZV36S ZX36DC6
ZV30T, ZV30S ZX36DC6
12" Duct Covers
Hood Model 12" Duct Cover
ZV48T, ZV48S ZX48DC12
ZV36T, ZV36S ZX36DC12
ZV30T, ZV30S ZX36DC12
Full-Width Duct Covers
6" Duct Covers
Hood Model 6" Duct Cover
ZV48S ZX48FWDC6
ZV36S ZX36FWDC6
ZV30S ZX30FWDC6
12" Duct Covers
Hood Model 12" Duct Cover
ZV48S ZX48FWDC12
ZV36S ZX36FWDC12
ZV30S ZX30FWDC12
4
6" Duct Cover
12" Duct Cover
Dimensions
6"H x 19-11/16"W x 11-7/8"D
6"H x 15-3/4"W x 11-7/8"D
6"H x 15-3/4"W x 11-7/8"D
Dimensions
12"H x 19-11/16"W x 11-7/8"D
12"H x 15-3/4"W x 11-7/8"D
12"H x 15-3/4"W x 11-7/8"D
Optional 6"
or 12" Duct
Cover
Dimensions
6"H x 47-15/16"W x 11-7/8"D
6"H x 35-15/16"W x 11-7/8"D
6"H x 29-15/16"W x 11-7/8"D
Dimensions
12"H x 47-15/16"W x 11-7/8"D
12"H x 35-15/16"W x 11-7/8"D
12"H x 29-15/16"W x 11-7/8"D
