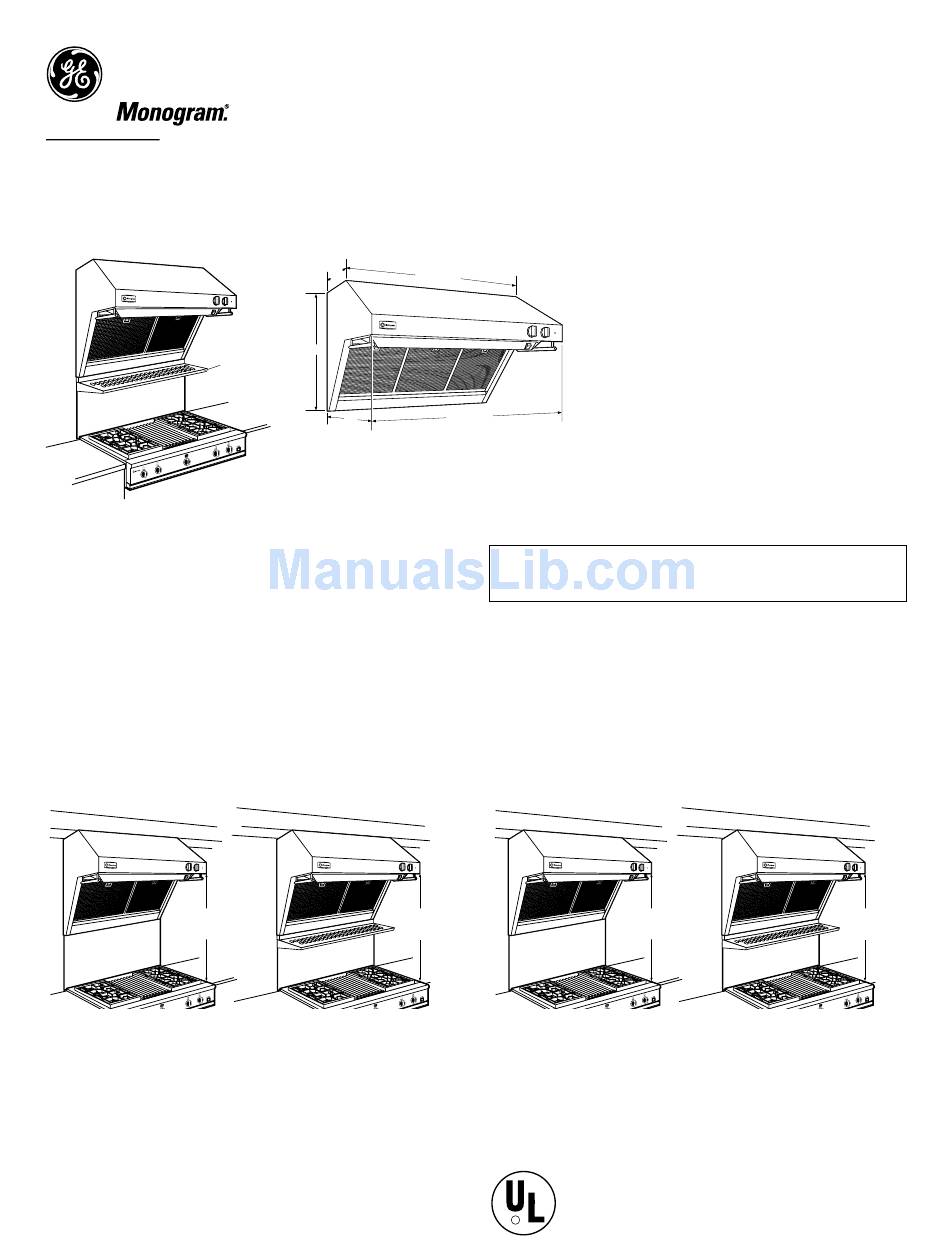

ZV48RSFSS – GE Monogram 48" Stainless Steel Professional Hood
Dimensions and Specifications (in inches)
Warming
Shelf
u a r d
B a c k g
Installation Clearances
These vent hoods are designed to be installed onto a wall or beneath a
soffit or cabinet.
Installation with Warming Shelf
• Hoods must be installed 32" Min., 38" Max. over any type cooking
surface when warming shelf is used.
Installation without Warming Shelf
• Install these hoods 30" Min. to 36" Max. above the cooking surface
when installed over any professional style cooktop or range.
• These hoods may be installed 24" min. above a gas or electric
drop-in style cooktop.
Soffit Installation
S O F F IT
30" Min.
36" Max.
Install these hoods 30" Min. to
36" Max. over a professional
style cooktop or range.
In this installation the ductwork running from the top of the hood will
be concealed in the soffit or upper cabinetry.
Specification Created 10/02
12"
47-15/16"
22-1/2"
25"
S O F F IT
32" Min.
38" Max.
Allow 32" Min. and 38" Max.
clearance above any cooking
surface when installed with shelf.
Each hood is shipped with a stainless steel backguard and
a warming shelf. Hoods may be installed with the shelf or
backguard alone, or with both as shown.
47-15/16"
Note: Clearances may vary due to type of cooking product and local
codes. Check with local inspectors to be sure standard is applicable.
Wall Mount Installation
S O F F IT
Install these hoods 30" Min. to
36" Max. over a professional
style cooktop or range.
For this installation, a decorative duct cover is available to conceal the
ductwork running from the top of the hood. Use of the duct cover requires
special consideration to the installation height above the countertop.
Listed by
Underwriters
Laboratories
R
S O F F IT
30" Min.
36" Max.
Allow 32" Min. and 38" Max.
clearance above any cooking
surface when installed with shelf.
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
service, 800.626.2000.
®
32" Min.
38" Max.
®
GE Profile
™
or
