PARTS PROVIDED

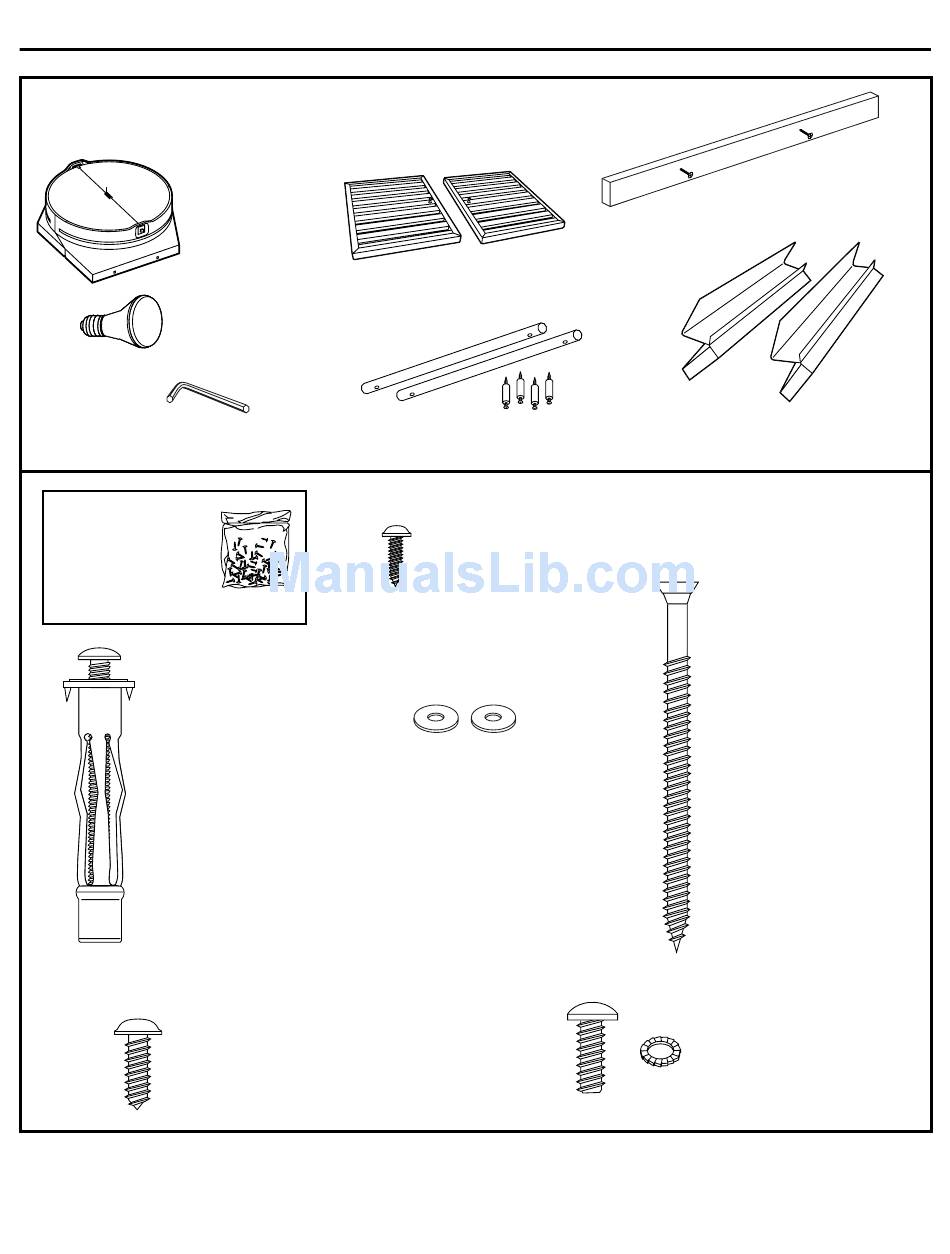

Locate the parts packed with the hood.
Duct Transition
with Damper
Heat Lamp
(2 with 48" models)
Allen Wrench
For Implement Rods
HARDWARE
PACKAGE
Locate and check
contents. Screws
shown actual size.
2 (3/16") hollow wall anchors
with screws to secure hood
to the wall at the bottom
6 Phillips head screws to
secure hood to the wood
support: (2 secured to
Installation Preparation
2 Stainless Steel Grease Filters
(3 filters with 48" models)
2 Implement Rods and 4 Stand-offs
wood support)
4 Phillips head screws to
secure the transition to the
hood outlet on the top
2 flat washers
for wall anchors
9
Wood Support
with Original Screws
2 Grease Filter Trays
(3 supports with 48" models.)
4 screws to secure the wood
support to the wall
POZIDRIV 3
1 safety screw and lock
washer, to secure the
blower: (screw is marked
with red or blue paint)
