Page 1: User Guide
Think Outside. Inside. user guide... - Page 2 Congratulations on your new ecobox. Your ecobox comes with a detachable power cord (US71059) and remote control (US71058). ________________________________________ ________________________________________ EcoQuest Business Owner Name Phone Number...

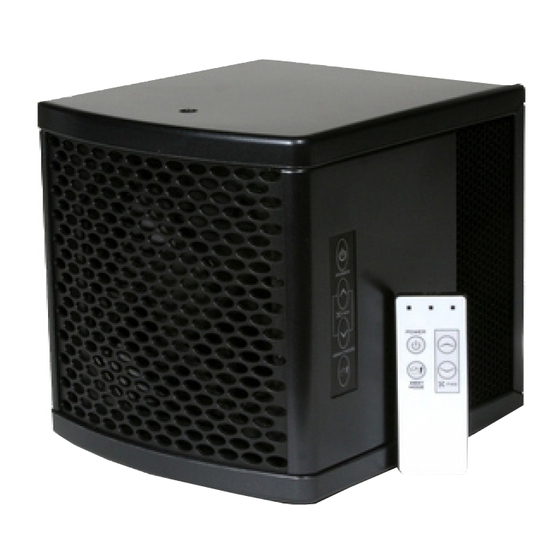

- Page 3 Meet your ecobox! carry handle front grill rear cover control pad power in side grills up to 1500 square feet of coverage 6.5” high x 6.5” wide x 7” deep weighs 2 pounds...
- Page 4 2 inches of clearance on either side. You can also place your ecobox in trouble areas for extra effectiveness. caution Do not operate ecobox near heat sources, open flame, or combustible vapors or gases.
-
Page 5: Power Supply
Plug power supply into the back of the ecobox and into a standard wall outlet. 15 volts DC 20 watts power consumption 30 watts power consumption (away mode) 3-speed fan... -
Page 6: Led Information
led information Green & Red LED Green LED solid = normal mode Green LED blinking = bulb absence/failure Green LED flash = remote or keypad command received Red LED solid = away mode (returns to normal mode after 2 hrs or user input is detected, whichever comes first) Red LED blinking = supply voltage is greater than 18VDC or less than 12VDC... -
Page 7: Control Pad
+ fan speed - fan speed away mode The control pad is conveniently located on the right side of your ecobox. caution Away Mode is intended for unoccupied spaces only. Please be sure all people and pets have vacated the area when Away Mode is in use. -
Page 8: Remote Control
- fan speed The ecobox remote control gives you the convenience of control from anywhere in the room. Before use, remove paper tab from the bottom of the remote. When replacing battery, choose a 3 Volt lithium cell CR2025. -
Page 9: Replacement Parts
US71060 If your unit fails to operate properly or you have questions, contact your EcoQuest Business Owner for further assistance. Contact EcoQuest at: EcoQuest International, 310 T. Elmer Cox Drive, Greeneville, TN 37743 800.989.2299 or visit www.EcoQuest.com for additional support. -
Page 10: Maintenance
Wipe down the outside with a damp (not wet) cloth. Reassemble when finished. caution Always unplug the power cord from the back of your ecobox before servicing. Removing cover may expose ultraviolet light source. To protect against eye damage, always unplug before servicing. - Page 11 Turn the RCI cell counterclockwise and remove. Reverse order to replace cell. caution Always unplug the power cord from the back of your ecobox before servicing. Removing cover may expose ultraviolet light source. To protect against eye damage, always unplug before servicing.
- Page 12 Remove the purification plate from its slot. Reverse order to replace plate. caution Always unplug the power cord from the back of your ecobox before servicing. Removing cover may expose ultraviolet light source. To protect against eye damage, always unplug before servicing.
- Page 13 Allow plate to dry completely before reinstalling. caution Always unplug the power cord from the back of your ecobox before servicing. Removing cover may expose ultraviolet light source. To protect against eye damage, always unplug before servicing.
-
Page 14: Deep Cleaning
Always unplug the power cord from the back of your ecobox before servicing. Removing cover may expose ultraviolet light source. To protect against eye damage, always unplug before servicing. -
Page 15: Fcc Declaration Of Conformity
This equipment has been tested and found to Name: EcoQuest International comply with the limits for Industrial, Scientific, Model: ecobox and Medical Equipment (ISM), pursuant to Part This device complies with 18 of the FCC Rules. These limits are designed Part 18 of the FCC Rules. - Page 16 printed on recycled paper 800.989.2299 310 t. elmer cox dr. greeneville, tn 37743 www.ThinkOutsideInside.com...
