OWNERS MANUAL
Installation
Operation
Specifications
Features
Maintenance
Warranty

Advertisement

Table of Contents
loading

Related Manuals for EcoQuest Fresh Air

Summary of Contents for EcoQuest Fresh Air

  • Page 1 OWNERS MANUAL Installation Operation Specifications Features Maintenance Warranty...

  • Page 3: Table Of Contents

    If the plug does not fit into the outlet, Your New Fresh Air by EcoQuest ......5 contact qualified personnel to install the proper Inspection &...

  • Page 4: Specifications

    Your new • 90 watts power consumption Fresh Air by EcoQuest is designed to provide years of trouble- • 24 to 30 KV, 20-30 Khz ion generation pulsator • Fixed 6 KV DC needle ion generator free, low maintenance operation.

  • Page 5: Your New Fresh Air By Ecoquest

    YOUR NEW FRESH AIR BY ECOQUEST INSPECTION & INSTALLATION 1. Remove protective packaging. • Eliminates smoke, odors, and tobacco smoke. 2. Remove unit from shipping carton. • Includes "Certified Space Technology" Radiant Catalytic Ionization (RCI), which incorporates the same process NASA uses to scrub the 3.

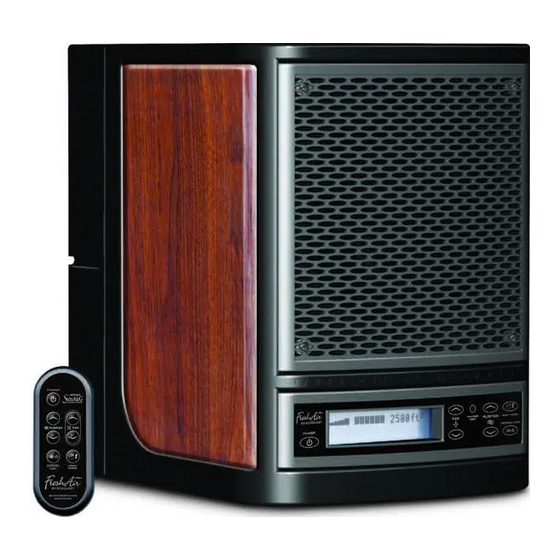

  • Page 6: Unit Features

    Back of Unit / Rear Access Main Power Switch Fuse Power Cord Receptacle LCD Display • Exclusive Radiant Catalytic Ionization (RCI) • Needlepoint and RF Ion Generation • Five Speed Fan • Adjustable Purifier control (High Mode only) • LCD Display...

  • Page 7: Operation

    OPERATION Fan Speed RCI cell and Ionization 1. Adjust the fan speed to your preference keeping in mind that higher fan speeds will give better results. 2. Using the Normal/High button, set the unit to NORMAL for typical use, or HIGH for increased smoke and odor control.

  • Page 8: Settings And Adjustments

    SETTINGS AND ADJUSTMENTS Fresh Air by EcoQuest can be turned on or off and adjusted using either the included remote or the control panel on the front of the unit. With the exception of the Reminder Reset button, both the remote and the control panel buttons have the same functions.
  • Page 9 POWER (STAND BY) PURIFIER UP/PURIFIER DOWN (HIGH MODE ONLY) Turns the unit ON and OFF. Works only when the Works when unit is in HIGH MODE to set the purifier Main Power switch (in back of unit) is turned on. level for the indoor area.

  • Page 10: Placement Of Unit

    PLACEMENT OF UNIT LCD DISPLAY Place the unit as high as possible LCD SCREEN to insure complete purification. The LCD Screen is used to display all current settings (see page 5), (On top of a bookshelf, high as well as any maintenance reminders and service messages. cabinet, etc.) Suggested locations, listed in the order of preference:...

  • Page 11: Maintenance And Service Reminders

    • Replace the old purifier plate with a new purifier plate • Vacuum the RCI cell. reminder following regular (available from your local EcoQuest Dealer). maintenance (see below). • Clean purifier plate (see page 12). • Vacuum front and rear grill openings.

  • Page 12: General Maintenance

    Do not use chemicals or solvents. Vacuum the front and rear grills periodically to remove any lint buildup. OPTIONAL ECOHELP FILTER The EcoHelp filter is not available for Fresh Air By EcoQuest 2.0 CLEANING THE RCI CELL: and later models. Check the serial label on your unit for model Remove the RCI cell and carefully vacuum accumulated lint.
  • Page 13 CHANGING THE RCI CELL: PURIFIER PLATE: The RCI cell should be changed when REPLACE RCI CELL Remove the rear lint screen (see pages 14 - 17). Carefully remove the appears on the display, or every three (3) years, whichever purifier plate from the card cage by grasping the middle of the edge comes first.

  • Page 14: Removing The Rear Lint Screen

    To remove the RCI cell, 3. Remove back cover. skip to step 7. For installation of the lint screen, go to page 16. WARNING: DO NOT OPERATE Fresh Air by EcoQuest without the rear lint screen and back cover properly installed.

  • Page 15: Removing The Purifier Plate & Rci Cell

    Please do not throw a used RCI cell into the garbage. The special germicidal UVX bulb used in the RCI cell contains a very small amount of mercury. You may return your used RCI cell to EcoQuest for proper disposal. Send the used cell to: EcoQuest International RCI Disposal 8.

  • Page 16: Installing The Rci Cell & Purifier Plate

    INSTALLING THE RCI CELL & PURIFIER PLATE To Install: Rear Lint Screen follow steps 7 - 11 Purifier Plate follow steps 4 - 11 RCI cell follow steps 1 - 11 1. Slide the RCI cell up and into the unit. Be sure the back 4.

  • Page 17: Installing The Rear Lint Screen

    8. Secure the top of the lint screen by replacing the two (2) lint screen holder screws. 9. Replace the back cover WARNING: DO NOT OPERATE Fresh Air by EcoQuest without the rear lint screen and back cover properly installed.

  • Page 18: Troubleshooting

    TROUBLESHOOTING Indicators of Operation: If you are operating your central heating and air conditioning When the unit is on, the LCD display will show either the fan fan or other ventilation system continuously, set the coverage up setting and NORMAL, or the fan setting, purifier setting, and square to the total ventilated indoor area, otherwise set the coverage up footage.
  • Page 19 Cell” message. according to the "Maintenance" section of this Owner's • Check RCI cell for proper installation. Manual. Order new purifier plates from your EcoQuest Dealer. • Replace the RCI cell. • The electrical stainless steel contacts are not contacting the screen portion of the purifier plate.
  • Page 20 American Conference of Governmental and/or lack of air movement. Industrial Hygienists (ACGIH) Standards. Fresh Air by EcoQuest • Symptom: Visual haze of smoke and/or particulate remain emits UV light wich can cause eye damage if the light were within the environment.
  • Page 21 If your unit fails to operate properly after performing See warranty card for specific details. trouble-shooting, contact your EcoQuest Dealer for If you have any questions concerning your Fresh Air by EcoQuest, further assistance, contact EcoQuest at the address please see your local EcoQuest Dealer.

  • Page 22: Fcc Declaration Of Conformity

    FCC DECLARATION OF CONFORMITY Name: EcoQuest Model: Fresh Air by EcoQuest This equipment has been tested and found to comply with the limits for Manufacturer: EcoQuest Manufacturing Industrial, Scientific, and Medical Equipment (ISM), pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection This device complies with Part 18 of the FCC Rules.
  • Page 24 65-00162-001 REV 03_05 FA 2.0 OM Did you forget to register your Fresh Air by EcoQuest? By registering, you’ll activate your warranty, and your privacy is guaranteed. Just fill out your warranty card and drop it in the mail. Copyright © 2005 EcoQuest International. All Rights Resevered. EcoQuest...
