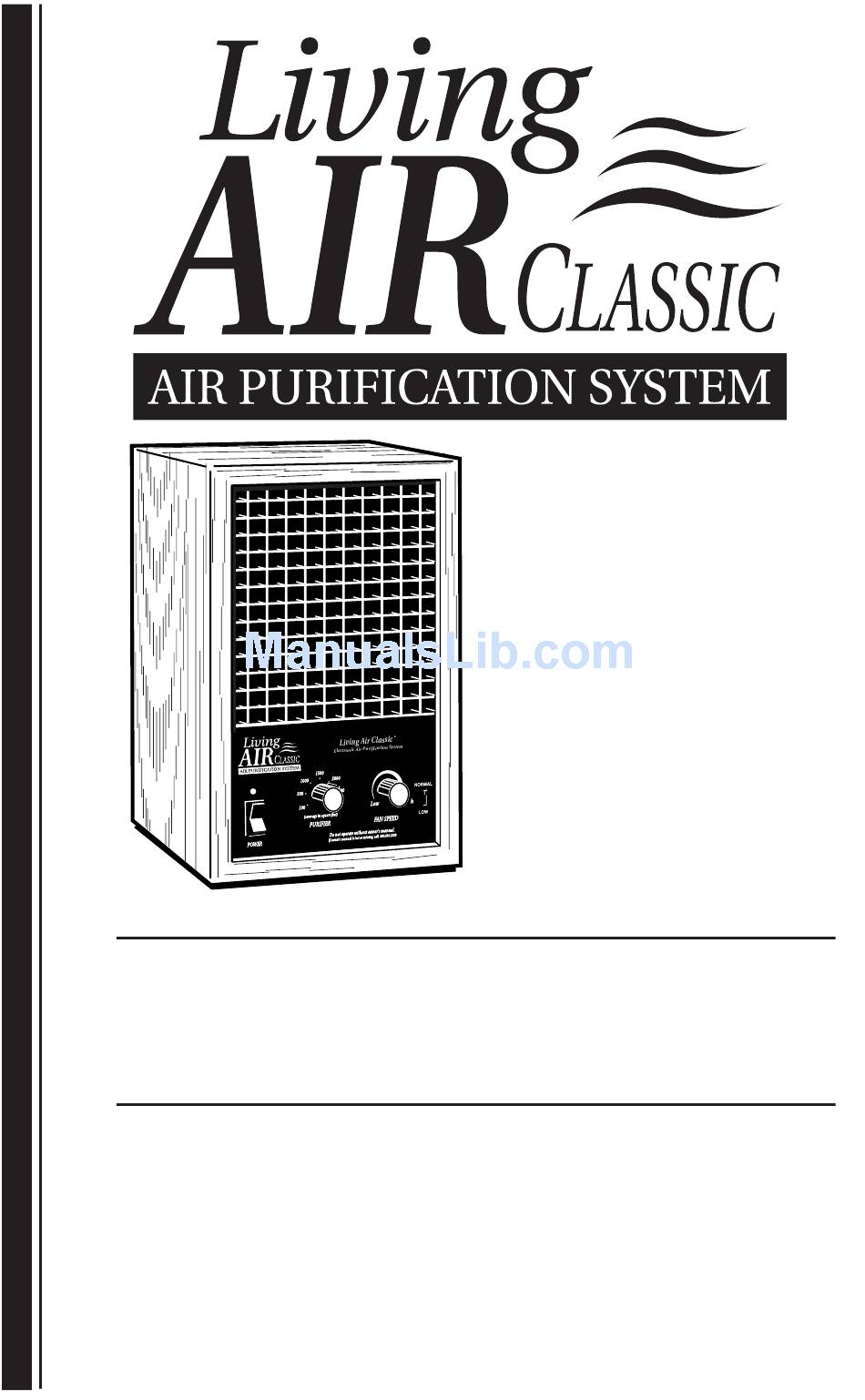

Living Air Classic
Electronic Air Purification 100, 110 and 220 volt Systems
310 T. Elmer Cox Drive • Greeneville, TN 37743 • 423.638.7246
CAUTION: read manual carefully for proper procedures and operation.
EcoQuest International
www.EcoQuest.com
OWNER'S MANUAL
• Application
• Notable Features
• Specifications
• Installation
• Operation
• Maintenance
• Warranty
®
®
Advertisement
Table of Contents
Related Manuals for EcoQuest LIVING AIR CLASSIC
Summary of Contents for EcoQuest LIVING AIR CLASSIC
- Page 1 • Notable Features • Specifications • Installation • Operation • Maintenance • Warranty Living Air Classic ® Electronic Air Purification 100, 110 and 220 volt Systems EcoQuest International ® 310 T. Elmer Cox Drive • Greeneville, TN 37743 • 423.638.7246 www.EcoQuest.com...
-
Page 2: Table Of Contents
Warranty ............12 Please record the serial number of your Living Air Classic:... -
Page 3: Applications
Applications Eliminate • Smoke • Odors • Tobacco Smoke • Pollen • Dust • Dust Mites • Large Particulate Plus it works as an appliance to Sanitize an area to Reduce • Mold • Mildew • Bacteria Notable Features • Compact •... -
Page 4: Principles Of Operation
PRINCIPLES OF OPERATION Nature cleanses the air with the lightning and rain. Lightning bolts produce ozone, as well as positive and negative ions which cleanse the air naturally. Rain helps bring the ozone and ions closer to the earth's surface. They are then attracted to atmospheric contaminants that are either removed from the air and attached to grounded objects or are oxidized. -
Page 5: Ecotech Purification Plate/Lint Screen Install
ECOTECH PURIFICATION PLATE INSTALLATION The Living Air Classic utilizes one Ecotech purification plate. 1. Rotate the Lint Screen retainer out of the way. 2. Remove the Lint Screen. 3. Fully insert Ecotech purification plate (a) between the guide-grooves in the top and... -
Page 6: Placing The Unit
A ceiling fan can also aid in distribution of cleansing properties. The Living Air Classic is most effective when placed in a position that allows the ions and ozone to be mixed evenly and thoroughly with the polluted air. -
Page 7: Setting / Adjusting Controls
SETTING AND ADJUSTING CONTROLS 1. FAN CONTROL The disbursement of cleansing properties is best accomplished with good air circulation. The FAN control should be set as high as reasonably possible without creating an undesirable noise level. This will be determined by personal preference and the distance you wish the cleansing properties to be dispersed. -
Page 8: Maintenance
MAINTENANCE Periodic maintenance is required to insure that the Living Air Classic operates properly. A severely polluted environment can foul an Ecotech purification plate in as little as two weeks or as long as a year. Shown here are basic maintenance procedures that should be carried out to keep your unit running at top performance. -
Page 9: Troubleshooting
REPLACING THE FUSE A fuse holder is located on the back of the unit next to the power cord. To replace or check the fuse, unscrew the fuse holder cap by turning it counterclockwise then remove the cap and fuse. If the fuse is blown, replace with a new slow blow type fuse. - Page 10 Troubleshooting - What to look for first. 1. I have plugged in the unit, turned "ON" the power switch and nothing happens…what's wrong? • Make sure the electrical outlet is capable of providing power to the unit. • Check the Lint Screen located at the back of the machine to ensure that the safety switch activator clip depresses the safety switch.
- Page 11 5.What are the most typical application problems? • Symptom: A belief that the proper equipment is placed in the environment and the equipment appears unsuccessful. Problem: Lack of air movement, improper placement of the unit. • Symptom: Strong odors still remain with the environment after placement. Problem: Lack of ozone, improper placement of the unit.
-
Page 12: Warranty
90 days from the same date of purchase. See warranty card for specific details. If you have any questions concerning your Living Air Classic system, please see your local EcoQuest Dealer. If your unit is defective, please contact EcoQuest International, 310 T.
