Load Controller / Single

Installing the Load Controller / Single System

GETTING STARTED

This part of the installation should be done after the air spring kit is installed. If you
have any questions, please call Air Lift customer service at (800) 248-0892.
If you are adding this control system to an Air Lift LoadLifter5000 application, then no
modifications to the low pressure sensor are necessary. If you are adding this control system
to an Air Lift 1000 or RideControl application, and if your specific application requires a
minimum of 10 p.s.i., then it will be necessary to adjust the low pressure sensor to 10 p.s.i.
To increase the pressure in the low pressure sensor, remove the rubber plug with pliers
(fig. 7). Using an allen wrench, turn the screw clockwise 4
plug back into the top of the low pressure sensor. Proceed with the step by step installation
instructions.

RECOMMENDED COMPRESSOR LOCATIONS

Disclaimer: If you choose to mount the compressor outside the vehicle please keep in
mind the compressor body must be shielded from direct splash and the intake should be
snorkeled inside the vehicle. If the compressor does not include a remote mount air filter or
if mounting the compressor outside the vehicle, make sure to orient the compressor intake
filter so that all moisture can easily drain.
Please also remember...
The compressor can be mounted in any position — vertical, upside down, sideways, etc.
(please refer to the instruction manual).
MN-750

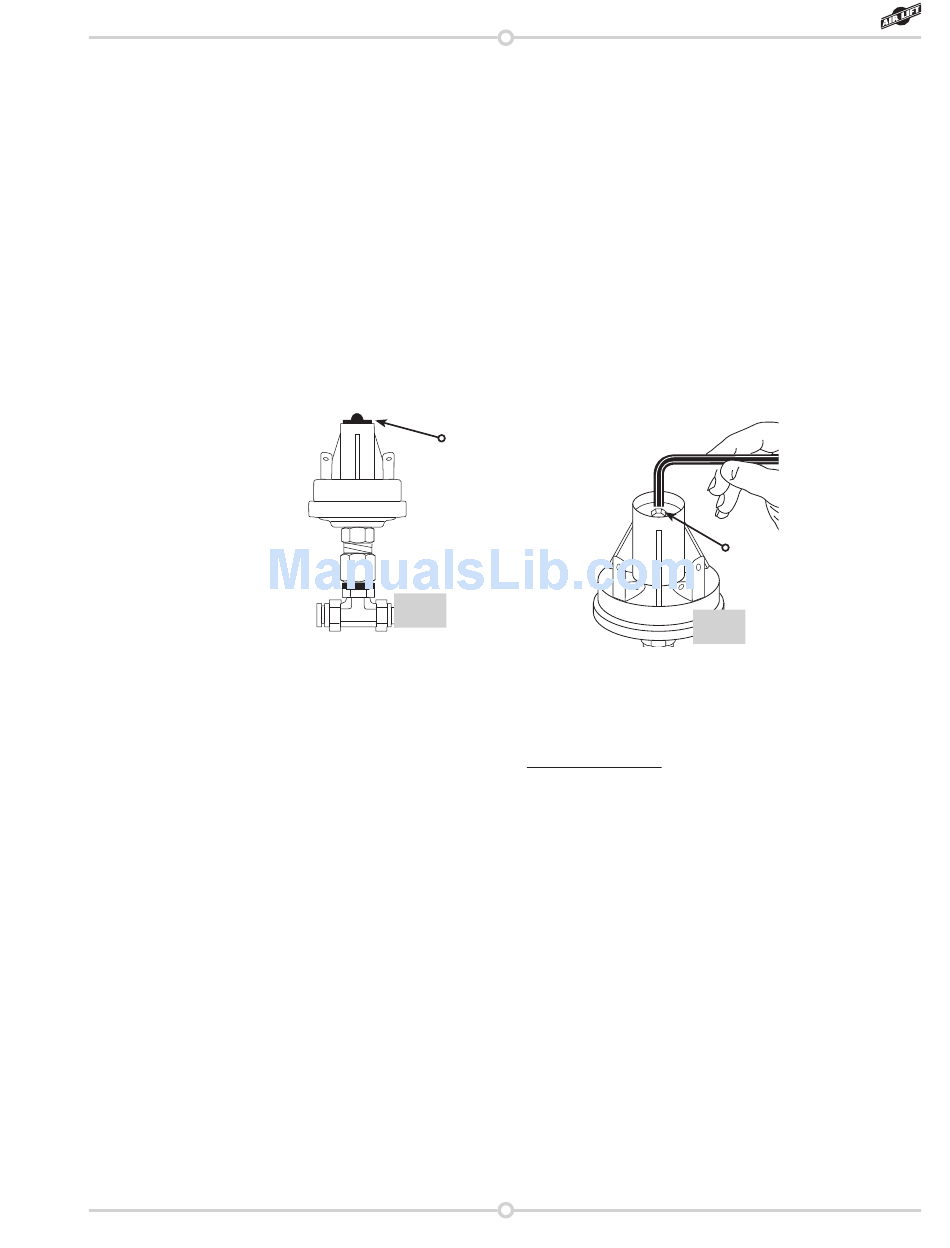

Remove
rubber cap
fig. 7
LOCATE COMPRESSOR IN DRY, PROTECTED AREA ON VEHICLE.
DIRECT SPLASH OR EXCESSIVE MOISTURE CAN DAMAGE
THE COMPRESSOR AND CAUSE SYSTEM FAILURE.
• To avoid high heat environments
• To avoid mounting the compressor under the hood.
• To check to be sure the compressor harness #2 will reach the compressor and connect
to harness #1.
/
1
4
fig. 8
Important
turns (fig. 8). Push the rubber
Turn allen screw 4 ¼
turns clockwise
7
