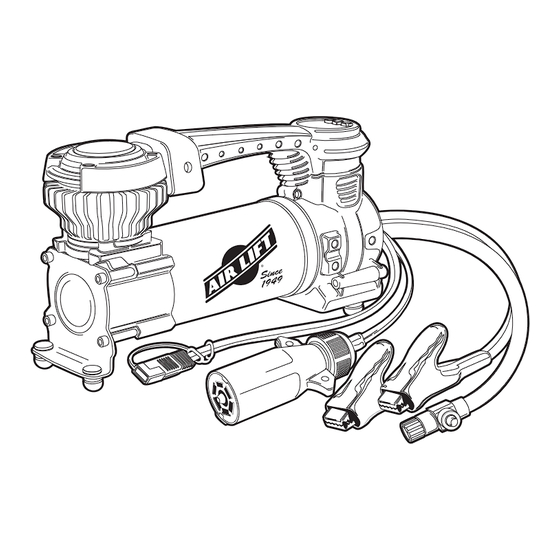

Digital Portable Air Compressor
For maximum effectiveness and safety,
please read these instructions completely
before proceeding with installation.
MN-1200 • Revision 012406 • ERN 10318
Installation Guide
Kit 16188
Failure to read these instructions can
result in an incorrect installation.
Watch the video
