Control Panel / Discharge Chute - Craftsman 254880 Repair Parts Manual

1650 series b&s engine 30" two-stage power-propelled snow thrower
Hide thumbs

Advertisement

REPAIR PARTS

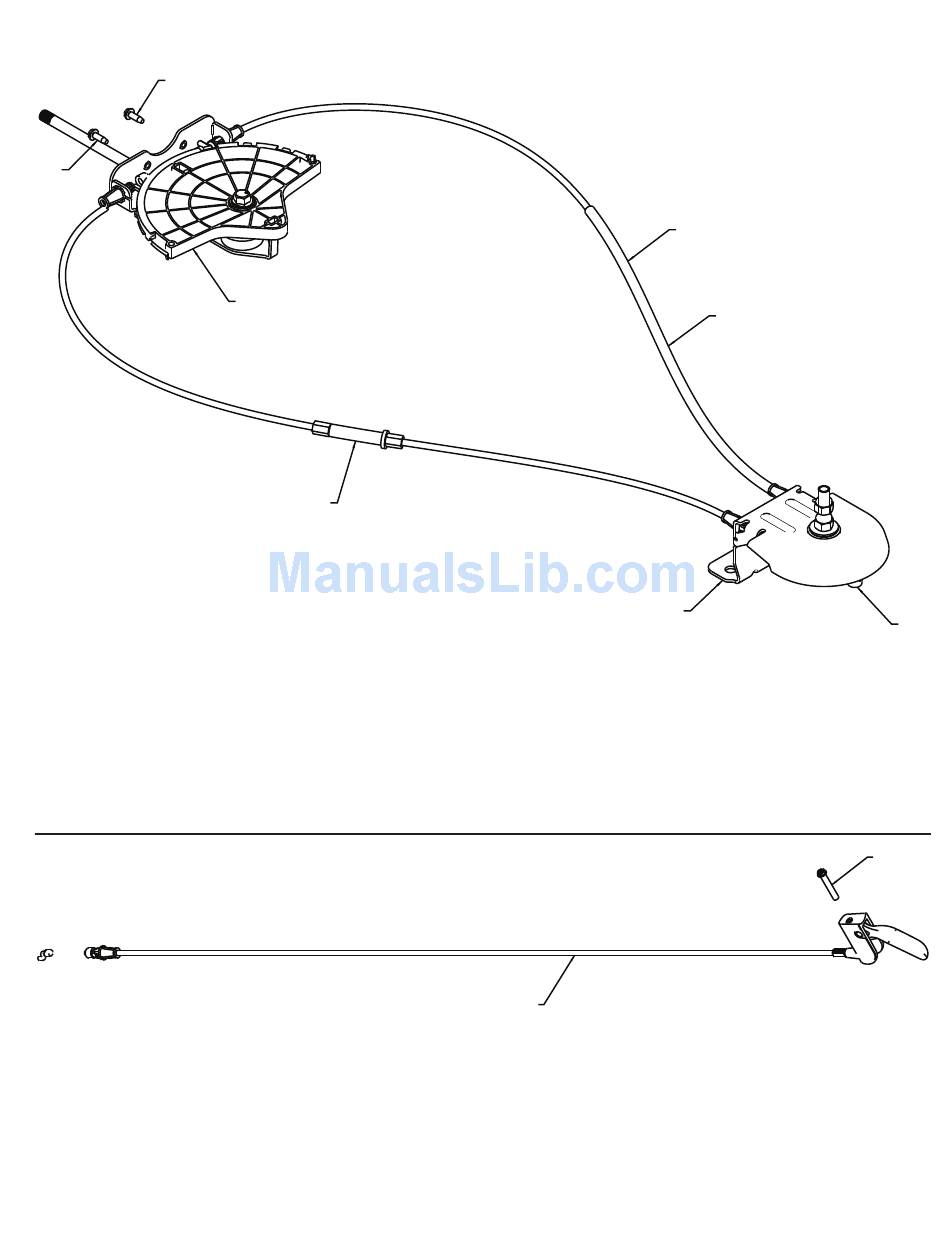

CONTROL PANEL / DISCHARGE CHUTE

2
2
KEY
PART
NO.
NO.
1
428272
2
17501010
*3
420678
*4
405932
*5
420675
*6
428273
*7
428310
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
KEY
PART
NO.
NO.
1
188303
2
74041024
NOTE: All component dimensions given in U.S. inches.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
CRAFTSMAN SNOW THROWER - MODEL NO. 254880
*3
*6
DESCRIPTION
LEVER/CABLE ROTATOR ASSEMBLY
SCREW 10-24 X .625
ROTATOR HEAD
ROTATOR PIVOT BRACKET
PULLEY PIVOT
CABLE ASSEMBLY ADJUSTABLE
CABLE ASSEMBLY HEAT SHIELD
DESCRIPTION
STEER CABLE
SCREW 10−24 X 1.50
1
1 inch = 25.4 mm
7
1
*7
*4
01.09.010-A
01.15.005-A
*5
2
