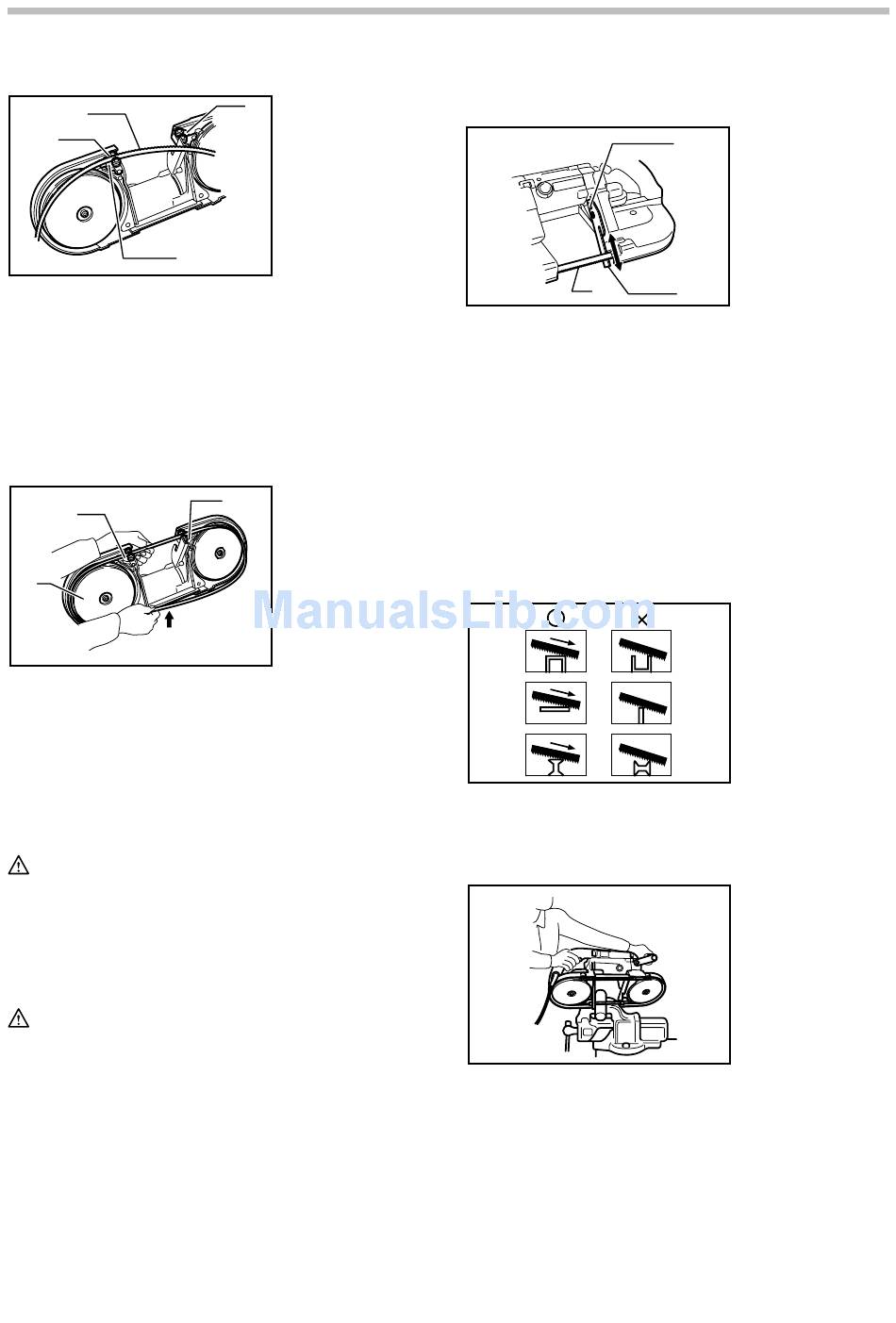

Insert the blade between the bearings of one blade
guide first and then into the other blade guide. The blade
back should contact the bearings in the lower portion of
the blade guides.
Position the blade around the wheels and insert the
other side of the blade within the upper holder and lower
holder until the blade back contacts the bottom of the
upper holder and lower holder.
1
3
4
005901
Hold the blade in place and turn the blade-tightening
lever counterclockwise until it hits against the protrusion
on the frame. This places proper tension on the blade.
Make sure that the blade is correctly positioned within
the blade guard and around the wheels.
Start and stop the tool two or three times to make sure
that the blade runs properly on the wheels.
CAUTION:
While making sure that the blade runs on the
wheels properly, keep your body away from the
blade area.
To remove the blade, follow the installation procedure in
reverse.
CAUTION:
When turning the blade tightening lever clockwise
to release the tension on the blade, point the tool
downward because the blade may come off
unexpectedly.
4
1. Blade
2. Bearing
3. Upper holder
4. Lower holder
3
1. Upper holder
2
2. Lower holder
3. Wheel
4. Press
Adjusting the protrusion of stopper plate
3
005902
In the ordinary operation, protrude the stopper plate to
the A side fully.
When the stopper plate strikes against the obstacles like
a wall or the like at the finishing of a cut, loosen two
screws and slide it to the B side in the figure.
After sliding the stopper plate, secure it by tightening two
screws firmly.

OPERATION

It is important to keep at least two teeth in the cut. Select
the proper cutting position for your workpiece by
referring to the figure.
004747
Hold the tool by both hands as shown in the figure with
the stopper plate contacting the workpiece and the blade
clear of the workpiece.
005916
Turn the tool on and wait until the blade attains full
speed. Gently lower the blade into the cut. The weight of
the tool or slightly pressing the tool will supply adequate
pressure for the cutting. Do not force the tool.
As you reach the end of a cut, release pressure and,
without actually raising the tool, lift it slightly so that it will
not fall against the workpiece.
6
1. Screw
1
2. Stopper plate
3. Blade
B
A
2
