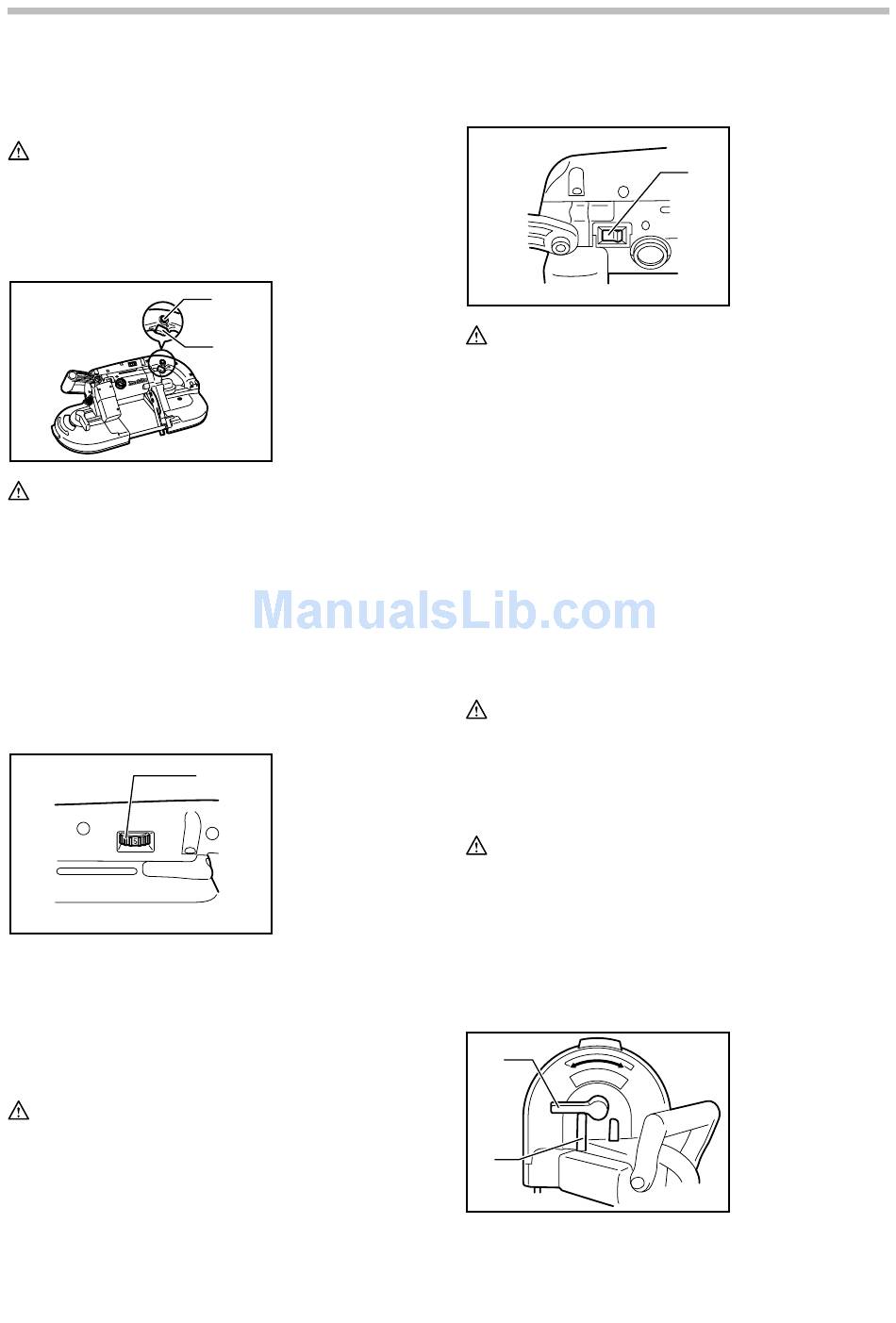

FUNCTIONAL DESCRIPTION

CAUTION:
Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.

Switch action

005894
CAUTION:
Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
For continuous operation, pull the switch trigger and
then push in the lock button.
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
Speed adjusting dial
005896
The tool speed can be infinitely adjusted between 1.0
m/s and 1.7 m/s by turning the adjusting dial. Higher
speed is obtained when the dial is turned in the direction
of number 5; lower speed is obtained when it is turned in
the direction of number 1.
Select the proper speed for the workpiece to be cut.
CAUTION:
The speed adjusting dial can be turned only as far
as 5 and back to 1. Do not force it past 5 or 1, or
the speed adjusting function may no longer work.
1. Lock button
1
2. Switch trigger
2
1. Speed adjusting
1
dial
Lighting up the lamps
005897
CAUTION:
Do not apply impact to the light, which may cause
damage or shorted service time to it.
To turn on the lamp, press the "I"(ON) side of the lamp
switch. Press the "O"(OFF) side to turn it off.
NOTE:
Use a dry cloth to wipe the dirt off the lens of lamp.
Be careful not to scratch the lens of lamp, or it may
lower the illumination.
Do not use thinner or gasoline to clean the lamp.
Such solvents may damage it.
After operation, always turn off the light by
pressing .the "O (OFF)" side.
ASSEMBLY
CAUTION:
Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.

Installing or removing the blade

CAUTION:
Oil on the blade can cause the blade to slip or
come off unexpectedly. Wipe off all excess oil with
a cloth before installing the blade.
Use caution when handling the blade so that you
are not cut by the sharp edge of the blade teeth.
Turn the blade tightening lever clockwise until it hits
against the protrusion on the frame.
4
1
3
005898
Match the direction of the arrow on the blade to that of
the arrow on the wheels.
5
1. Lamp switch
1
1. Tighten
2. Loosen
2
3. Protrusion
4. Lever
