Operation; Maintenance - Makita 5007NK Instruction Manual

Hex wrench is stored on the tool. To remove hex wrench,
rotate it toward yourself and pull it out.
To install hex wrench, place it on the handle and turn it
until it comes into contact with the protrusion on the
handle.

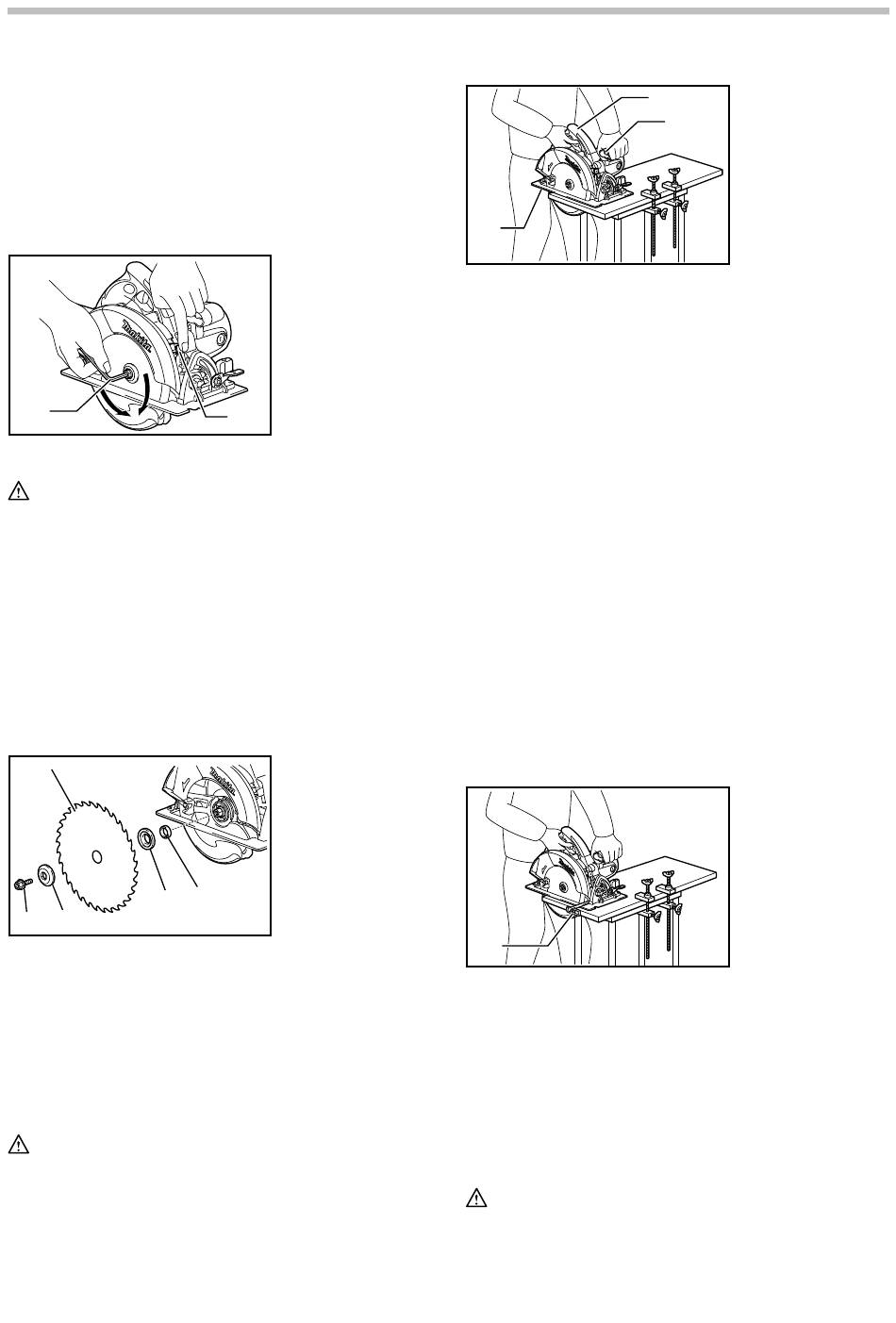

Removing or installing saw blade
1
008678
CAUTION:
Be sure the blade is installed with teeth pointing up
•
at the front of the tool.
Use only the Makita wrench to install or remove the
•
blade.
To remove the blade, press the shaft lock so that the
blade cannot revolve and use the hex wrench to loosen
the hex bolt counterclockwise. Then remove the hex bolt,
outer flange and blade.
To install the blade, follow the removal procedure in
reverse. BE SURE TO TIGHTEN THE HEX BOLT
CLOCKWISE SECURELY.
3
4
1 2
008679
When changing blade, make sure to also clean upper
and lower blade guards of accumulated sawdust. Such
efforts do not, however, replace the need to check lower
guard operation before each use.

OPERATION

CAUTION:
Be sure to move the tool forward in a straight line
•
gently. Forcing or twisting the tool will result in
overheating the motor and dangerous kickback,
possibly causing severe injury.
1. Hex wrench
2. Shaft lock
2
1. Hex bolt
2. Outer flange
3. Saw blade
4. Inner flange
5. Ring
5
1
008680
Always use a front grip and rear handle and firmly hold
the tool by both the front grip and rear handle during
operations. The tool is provided with both the front grip
and rear handle. If both hands are holding saw, they
cannot be cut by the blade. Set the base on the
workpiece to be cut without the blade making any
contact. Then turn the tool on and wait until the blade
attains full speed. Now simply move the tool forward
over the workpiece surface, keeping it flat and
advancing smoothly until the sawing is completed.
To get clean cuts, keep your sawing line straight and
your speed of advance uniform. If the cut fails to properly
follow your intended cut line, do not attempt to turn or
force the tool back to the cut line. Doing so may bind the
blade and lead to dangerous kickback and possible
serious injury. Release switch, wait for blade to stop and
then withdraw tool. Realign tool on new cut line, and
start cut again. Attempt to avoid positioning which
exposes operator to chips and wood dust being ejected
from saw. Use eye protection to help avoid injury.
Rip fence (Guide rule)
1
008681
The handy rip fence allows you to do extra-accurate
straight cuts. Simply slide the rip fence up snugly against
the side of the workpiece and secure it in position with
the screw on the front of the base. It also makes
repeated cuts of uniform width possible.

MAINTENANCE

CAUTION:
Always be sure that the tool is switched off and
•
unplugged before attempting to perform inspection
or maintenance.
8
1. Base
2
2. Rear handle
3
3. Front grip
1. Rip fence (Guide
rule)
