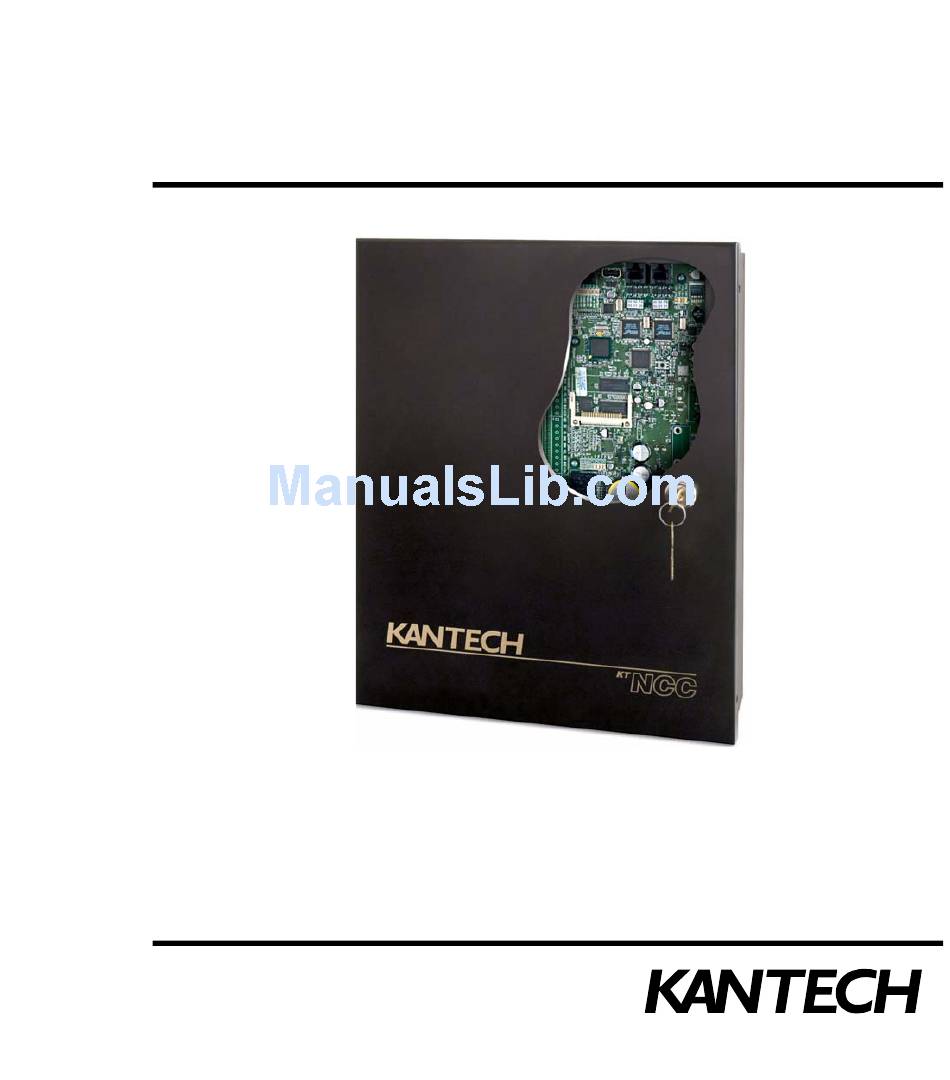

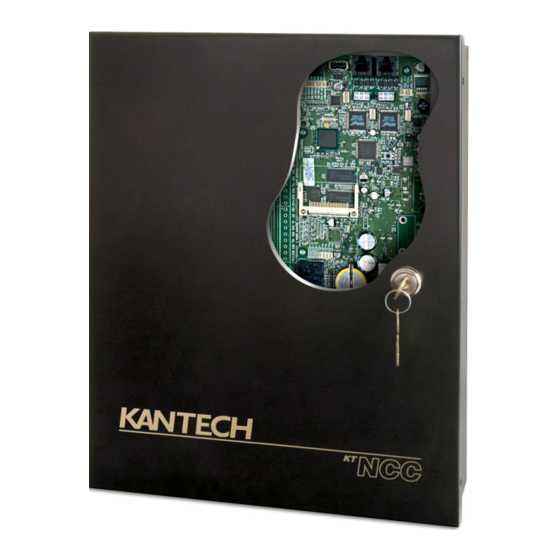

- Page 1 K T - N C C N e t w o r k C o m m u n i c a t i o n s C o n t r o l l e r Quick Configuration Guide DN1656-0606...
-
Page 2: Purpose Of This Document
DN1656-0606 Purpose of this Document This Quick Setup Guide is intended for users who are already familiar with Kantech products and have some knowledge of network configuration. This document is aimed at describing the configuration steps required to establish communication between EntraPass Global Edition and one or several KT-NCC communication controllers, taking into account your environment and your network architecture. -
Page 3: Table Of Contents
Verifying the Connection Status ..................37 My Network Configuration ................... 38 Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 2 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice... -
Page 4: Introduction
We suggest that you contact the Network Administrator of the site where you will install the KT-NCC so that he can provide you with all network information that is essential for the good operation of the KT-NCC. -
Page 5: Network Architectures
Whatever the case, an IP address has to be assigned so that the KT-NCC controllers and the EntraPass server can communicate. When the EntraPass server is used, a static or DHCP address can be assigned to establish the communication. - Page 6 Switch Figure 2: Local Network with EntraPass DHCP Server Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 5 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice...
- Page 7 KT-NCC Figure 3: Local Network with Enterprise DHCP Server Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 6 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice...
-
Page 8: Wide Area Network (Wan) Architecture
(DHCP). Note: We prefer the use of a static IP address for the KT-NCC since the routers have to be configured to forward ports with static addresses. When sites that are distant from the network are protected by routers, a public address will be used for communication between the EntraPass server and the remote KT-NCC controller(s). -
Page 9: Network Configuration Scenario
It is important at this stage, if you have not already done so, to contact the Network Administrator where the KT-NCC will be installed to obtain as much information as possible so that you can enter it in the diagram that matches your network environment. -
Page 10: Kt-Ncc Connections Diagram
The KT-NCC connections diagram in Figure 5 below shows the top section of the KT-NCC printed circuit. The diagram shows you the key items to which we will be referring when configuring the KT-NCC in the EntraPass Global Edition software. -
Page 11: Flash Patterns Of The Led Indicator
Flash Patterns of the LED Indicator A blue LED indicator has been placed on the KT-NCC printed circuit enabling you to see the various states of the system. The indicator is located on top of the circuit, under the RS-232 connection (See Figure 5: KT-NCC Connections Diagram on page 9.) -
Page 12: Before Connecting And Configuring The Kt-Ncc
Table 2: KT-NCC Communication Timings Before Connecting and Configuring the KT-NCC • Before connecting the KT-NCC to the Entrapass network, ensure that you have version 3.17 or later of the EntraPass Global Edition software. • Use an appropriate network cable (minimum CAT-5) to connect the KT-NCC to the network that houses the EntraPass server Global Edition. -
Page 13: Configuring A Static Ip Address (Lan)
• check the connection status. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 12 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice... -
Page 14: Initializing The Kt-Ncc In Factory Reset Mode
Assigning the KT-NCC Static IP Address To be able to assign a static address to the KT-NCC, use the KT-NCC Web Configuration tool. To do this, you have to configure the configuration computer with a valid IP address. It is advisable to use the address 192.168.0.5 and the subnet mask 255.255.255.0. - Page 15 KT-NCC (no. 2 in the diagram on page 12) is already configured. The • MAC address is found on the top right of the KT-NCC circuit, under Ethernet Port #1. (See Figure 5: KT-NCC Connections Diagram on page 9.) DHCP •...
- Page 16 . The main window of the KT-NCC Web Configuration tool will reappear on the screen. Meanwhile, the KT-NCC will reset. • The blue pilot light (Vital LED) of the KT-NCC will blink quickly to signal that the controller is in reset mode. •...
-
Page 17: Registering The Kt-Ncc On The Entrapass Global Edition Server
Activate Click to save the KT-NCC in EntraPass Global Edition. The blue dot will change to green and the new KT-NCC controller will be added to the list of • components at the top of the screen. •... - Page 18 • Check the box Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 17 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice...
- Page 19 • KT-NCC Update of platform CE - KT-NCC, Completed successfully. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 18 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice...
-
Page 20: Verifying The Connection Status
Global Edition Reference Guide DN1316. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 19 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice... -
Page 21: Configuring The Entrapass Dhcp Ip Address (Lan)
Initializing the KT-NCC in Factory Reset Mode A factory reset will delete the entire configuration of the KT-NCC, including the IP address. It is advisable to reinitialize the KT-NCC before starting the configuration. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 20 of 39 2006 Tyco Safety Products, Canada, Ltd. -
Page 22: Registering The Kt-Ncc To The Entrapass Global Edition Server
Activate Click to save the KT-NCC in EntraPass Global Edition. • The blue dot will change to green and the new KT-NCC controller will be added to the list of components at the top of the screen. Edit • button will activate to enable you configure the security options and rename the KT-NCC. -
Page 23: Activating The Entrapass Dhcp
From the drop-down list, select the KT-NCC that you just saved in EntraPass. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 22 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice... -
Page 24: Connecting The Kt-Ncc To The Network
Connect the KT-NCC to the network via KT-NCC Ethernet port #1. The KT-NCC will place a request to obtain the IP address of the EntraPass DHCP server automatically. • The blue pilot light (Vital LED) of the KT-NCC will blink quickly to signal that the controller is in reset mode. •... - Page 25 DN1656-0606 • The blue pilot light (Vital LED) of the KT-NCC will blink once/second to signal that it is communicating with the server. Note: For details, refer to Flash Patterns of the LED Indicator on page 10 At this stage, the system checks if the version number of the software and controller are the same. If not, the system updates the KT-NCC firmware automatically.
-
Page 26: Verifying The Connection Status
Global Edition Reference Guide DN1289. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 25 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice... -
Page 27: Configuring A Enterprise Dhcp Ip Address (Lan)
Initializing the KT-NCC in Factory Reset Mode A factory reset will delete all configurations of the KT-NCC, including the IP address. We recommend that you reinitialize the KT-NCC before starting the configuration. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 26 of 39 2006 Tyco Safety Products, Canada, Ltd. -
Page 28: Connecting The Kt-Ncc To The Network
Reinstall Connecting the KT-NCC to the Network Connect the KT-NCC to the network via Ethernet port #1 of the KT-NCC. The KT-NCC will place a DHCP request to obtain an IP address. Registering the KT-NCC to the EntraPass Global Edition Server... -
Page 29: Configuring The Kt-Ncc In Entrapass Global Edition
It is advisable to check with the Network Administrator if the site where you are installing the KT-NCC is situated in an area where daylight saving time is in effect. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 28 of 39... - Page 30 KT-NCC parameters. Close the Gateway dialog. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 29 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice...
- Page 31 • KT-NCC Update of platform CE - KT-NCC, Successfully completed. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 30 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice...
-
Page 32: Verifying The Connection Status
Global Edition Reference Guide DN1316. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 31 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice... -
Page 33: Wan Network
The following diagram shows a type of architecture in a WAN network when the site of the EntraPass Server is distant from the site of the KT-NCC module and the two communicate through a public network. Figure 9: WAN Configuration Diagram Telephone: 1 (450) 444-2030 •... -
Page 34: Configuring A Dhcp Address (Wan)
Port forwarding configuration is only done on static IP or reserved DHCP addresses. • Port forwarding is done to the same IP address. If you use more than one KT-NCC with a router, you should use different ports for every KT-NCC. -
Page 35: Registering The Kt-Ncc To The Entrapass Global Edition Server
Activate Click to save the KT-NCC in EntraPass Global Edition. The blue dot will change to green and the new KT-NCC controller will be added to the list of • components at the top of the screen. Edit button will activate to enable you to configure the security options and rename the KT- •... -
Page 36: Entering Router Parameters On The Server
From the drop-down list, select the KT-NCC gateway that you would like to configure. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 35 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice... - Page 37 • Check the box Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 36 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice...
-
Page 38: Verifying The Connection Status
Global Edition Reference Guide DN1316. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 37 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice... -
Page 39: My Network Configuration
If none of the options provided in this document corresponds to your network architecture, you can use the following pages to illustrate your specific network and list the parameters of your network. Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 38 of 39... - Page 40 IP address Notes Telephone: 1 (450) 444-2030 • Toll free: 1 (888) 222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com page 39 of 39 2006 Tyco Safety Products, Canada, Ltd. All rights reserved • Specifications may change without notice...
