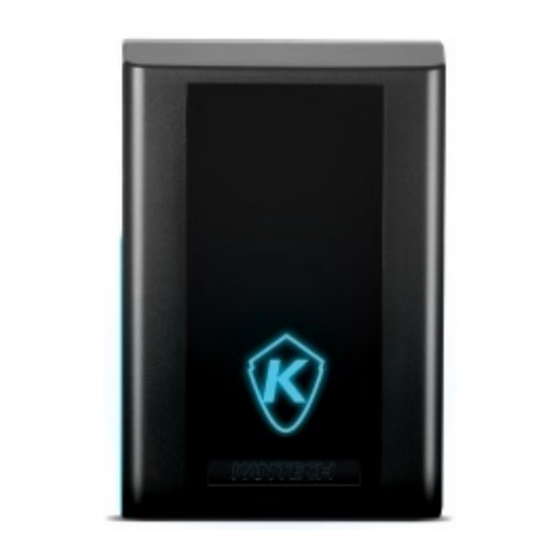

Kantech KT-1 Quick Start Manual

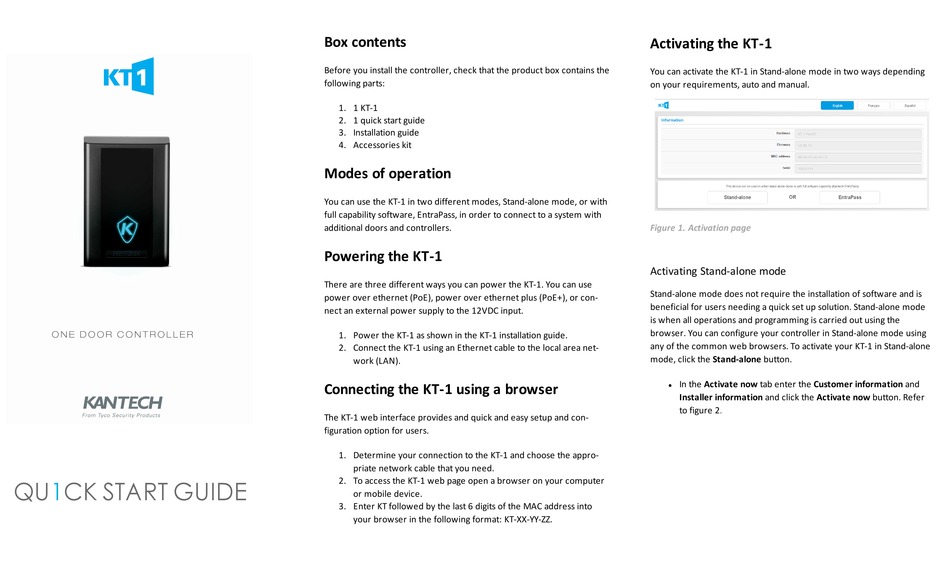

QU1CK START GUIDE
Box contents
Before you install the controller, check that the product box contains the
following parts:
1. 1 KT-1
2. 1 quick start guide
3. Installation guide
4. Accessories kit
Modes of operation
You can use the KT-1 in two different modes, Stand-alone mode, or with
full capability software, EntraPass, in order to connect to a system with
additional doors and controllers.
Powering the KT-1
There are three different ways you can power the KT-1. You can use
power over ethernet (PoE), power over ethernet plus (PoE+), or con-
nect an external power supply to the 12VDC input.
1. Power the KT-1 as shown in the KT-1 installation guide.
2. Connect the KT-1 using an Ethernet cable to the local area net-
work (LAN).
Connecting the KT-1 using a browser
The KT-1 web interface provides and quick and easy setup and con-
figuration option for users.
1. Determine your connection to the KT-1 and choose the appro-
priate network cable that you need.
2. To access the KT-1 web page open a browser on your computer
or mobile device.
3. Enter KT followed by the last 6 digits of the MAC address into
your browser in the following format: KT-XX-YY-ZZ.
Activating the KT-1
You can activate the KT-1 in Stand-alone mode in two ways depending
on your requirements, auto and manual.
Figure 1. Activation page
Activating Stand-alone mode
Stand-alone mode does not require the installation of software and is
beneficial for users needing a quick set up solution. Stand-alone mode
is when all operations and programming is carried out using the
browser. You can configure your controller in Stand-alone mode using
any of the common web browsers. To activate your KT-1 in Stand-alone
mode, click the Stand-alone button.
In the Activate now tab enter the Customer information and
l
Installer information and click the Activate now button. Refer
to figure 2
.
