Summary of Contents for Kantech KT-NCC

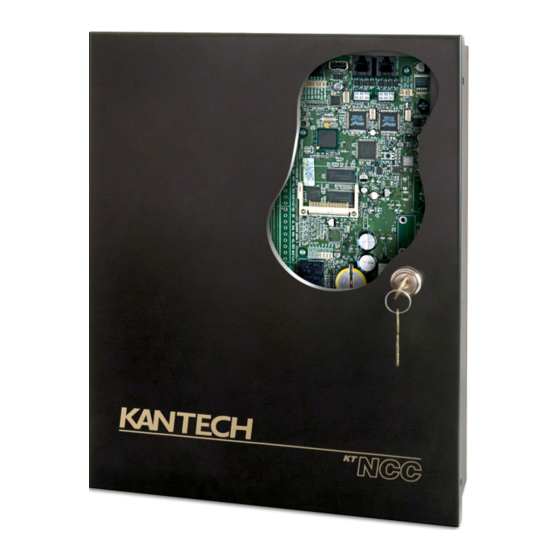

- Page 1 KT-NCC Network Communications Controller Installation Manual DN1611-1809...
-
Page 2: Table Of Contents
Communication Timing ........................... 20 Resetting the KT-NCC ..........................21 Connecting the KT-NCC to the Network ....................22 Registering the KT-NCC with the EntraPass Global Server..............23 Configuring DHCP with Customer Server IP Address................25 Configuring the Gateway ............................25 Configuring with a Static IP Address ..................... 27 Using the Web Configuration Page ........................ -
Page 3: Pre-Installation Information
SUPPLY, the disconnecting device must disconnect both poles simultaneously (LINE and NEUTRAL). 2. AVOID setting up the equipment near heaters, air conditioners, ventilators, and/or refrigerators; DO NOT select a place that exposes your KT-NCC to direct sunlight, excessive heat, moisture, vapors, chemicals or dust. -
Page 4: Technical Support
Technical For technical assistance with the KT-NCC and other Kantech products, contact technical support, Support Monday to Friday: To contact technical support, follow this link: http://www.kantech.com/Support/Contact_Technical_Support_Advanced.aspx See the table for the technical support phone numbers and email address. Country/Region Phone Numbers... -
Page 5: Safety Instructions
KT-NCC Installation Manual Country/Region Phone Numbers Support Hours Email Germany Direct +0800 1806 757 Italy Direct +3902 3051 0112 Bahrain Direct +800 0 4127 Belgium Direct +0800 76 452 Ireland Direct +1800 94 35 70 Nordic countries Direct +4544 94 90 01... -
Page 6: Kt-Ncc Compliance Specifications
Trex request to exit devices Notice • Each KT-NCC enclosure will be installed in a secured and protected location with tamper supervision • Each KT-NCC will be powered by a class 2 transformer such as the TR1640P/UL. •... -
Page 7: Ul 294 Compliance Notice
Compliance • Use of a UL listed 60950 computer • Use of a UL recognized tamper switch on every housing cabinet for the KT-NCC • Use only UL listed or recognized cables • Use only UL listed or recognized adaptors •... -
Page 8: Ce & Rcm Compliance
CE & RCM EN50133-1: Alarm systems - Access control systems for use in security applications: system Compliance requirements. EN55022: Information technology equipment, radio disturbance characteristics. EN60950: Information technology equipment, safety. EN61000-6-1: Electromagnetic Compatibility (EMC) - Generic Standards - Immunity for residential, commercial and light-industrial environments. -
Page 9: Overview
The KT-NCC’s main task is to acquire information from all input channels and relay the results back to all output channels through the controller loops. The KT-NCC communicates with the server through an Ethernet 10/100 Base-T port and indicates its communication status through a heartbeat LED. -
Page 10: Kt-Ncc Specifications
Specification Description AC Power Input (CE) 240 VAC, 16.5 VAC, 40 VA (Part #: 17000044 included in the KT-NCC-EU cabinet kit for EMEA) AC Power Rating 16.5 VAC, 40 VA, 2.42 A Battery Back-Up 1 KT-BATT-12, 12V/7Ah battery supervised, provides a minimum of 4... -
Page 11: Kt-Ncc Characteristics With Entrapass Global Edition
KT-NCC Installation Manual KT-NCC Table 3: KT-NCC Characteristics With EntraPass Global Edition Characteristics with EntraPass Specification Description Global Edition Controllers per KT-NCC Loops Per Gateway 7 loops (2 x RS-485, 1 x RS-232, 4 x IP) Maximum Controllers per Loop... -
Page 12: Ordering Information
KT-NCC-CAB: Cabinet only • KT-NCC-ACC: miscellaneous parts for PCB • KT-NCC-PCB-ACC: miscellaneous parts for PCB and cabinet • KT-NCC-EU: Cabinet with KT-NCC PCB and transformer for Europe and Asia Table 4: Bill of Material Item Description KT-NCC KT-NCC- KT-NCC- KT-NCC-... -
Page 13: Pre-Installation
KT-NCC Installation Manual Pre-Installation Before installing the KT-NCC, confirm that all parts are in order, all necessary tools are available, and that the site is properly prepared. If you are connecting your KT-NCC to the EntraPass Global Edition software, you must make sure that you are running version 3.17 or higher. -
Page 14: Kt-Ncc Installation
(Optional) 1. For KT-NCC UL Cabinet only - Remove the ground wire from the screw on the door, see Figure 2: on Page 14 below. 2. Lift the door up until the hinges no longer touch the pins. -
Page 15: Connecting The Earth Ground
KT-NCC Installation Manual Connecting the Use a single conductor solid copper wire to ground the KT-NCC to a good earth ground as per the local Earth Ground electrical code. Refer to Figure 3: on Page 15 below. Figure 3: Tamper Switch and Earth Grounding Connecting the The KT-NCC can connect to two RS-485 expansion buses and through one RS-232 connection. -
Page 16: Connecting The Relays
#2 is configured to monitor AC power failure. (Configuration is done in the Gateway dialog in EntraPass.) For the KT-NCC UL Cabinet only - In order for the KT-NCC to comply with UL 294 section 32.1.5, the installation technician has the responsibility of installing an AC powered LED outside the KT-NCC cabinet and connect it to relay # 2 on the KT-NCC PCB. -
Page 17: Installing The Kt-3Led-Plate
For additional software configuration, please refer to EntraPass Global Edition Reference Manual, DN1316. Hardware Configuration: • From the KT-NCC selected relays (C and NO) as defined previously in the EntraPass configuration, connect a 2-wire cable to the selected input door. • For the KT-400, use C and Z inputs. -
Page 18: Installing Additional Sites
An internal battery verification will cut the battery power if the battery voltage level falls below 9.5 volts. Installing the AC 1. Install the 16.5 VAC, 40 VA, class 2 transformer. KT-NCC unit will not start on battery alone. Transformer Note: That step doesn’t apply to the KT-NCC-EU Cabinet. -
Page 19: Kt-Ncc Configuration
KT-NCC Installation Manual KT-NCC Configuration Pre- Before you register your KT-NCC to EntraPass Global Edition software and start configuring it, you must Configuration verify the following: • Make sure that you are running version 3.17 or higher of EntraPass Global Edition software. -
Page 20: Static Ip Address
You will use this type of configuration in an environment where the Network Administrator will determine the IP addresses for communication between the EntraPass server and the KT-NCC(s). The IP address can be configured using the KT-NCC Web Configuration Page or the KT-Finder. -
Page 21: Port Forwarding
Port forwarding configuration is only done on static IP or reserved DHCP addresses. • Port forwarding is done to the same IP address. If you install more than one KT-NCC with a router, you should use different ports for every KT-NCC. -
Page 22: Communication Timing
(latency period) between the EntraPass server and the KT-NCC. This parameter will be adjusted based on the complexity and size of the network. For example, when the network architecture is simple, a communication timing will be set to faster. On the other hand, when the network architecture is large and complex a slower communication timing will be more appropriate. -
Page 23: Resetting The Kt-Ncc
For maintenance purposes, the KT-NCC may need to be reset. Three types of resets can be performed on the system: Soft reset, hard reset and factory reset. Please refer to Figure 22: on Page 39 to locate the different components of the KT-NCC board required to perform system resets. -
Page 24: Connecting The Kt-Ncc To The Network
The KT-NCC communicates with the EntraPass Server via a10/100 Base-T Ethernet link. Figure 9: Ethernet Port #1 Connection to KT-NCC 1. Connect the cable from the KT-NCC to the network hosting the server application. Refer to Figure 9: on Page 24 above. -
Page 25: Registering The Kt-Ncc With The Entrapass Global Server
7. Close the System registration window. Note: At this stage, the system checks if the version numbers of the software and the KT-NCC are the same. If not, the system will automatically update the KT-NCC firmware. Three messages will appear on the EntraPass workstation list of messages to indicate that the update has been completed. - Page 26 Registering the KT-NCC with the EntraPass Global Server (continued) Figure 11: EntraPass Message List Desktop The messages to lookout for are: • KT-NCC Update of platform CE - KT-NCC, Started • KT-NCC Update of platform CE - KT-NCC, Completed •...
-
Page 27: Configuring Dhcp With Customer Server Ip Address
NT-NCC Installation Manual Configuring DHCP with Customer Server IP Address The customer DHCP server will assign IP addresses automatically for communication with the KT- NCC(s). We strongly suggest that you use a reserved IP address for the KT-NCC MAC address. Devices Gateway Configuring the 1. - Page 28 Note: The MAC address can be found on the KT-NCC PCB, underneath the Ethernet #1. It is a 12- digit hexadecimal code, with each two digits separated by a dash (00-50-F9-xx-xx-xx) Refer to Figure 22: on Page 39 to locate the MAC address on the KT-NCC board.
-
Page 29: Configuring With A Static Ip Address
192.168.0.2 for the computer used to configure the KT-NCC. Configuration This IP address is assigned by default to Ethernet port #2 for the KT-NCC Web Configuration Page. The Page IP address of the computer must be within the same segment. For example, 192.168.0.x, where x can be any number between 3 and 256. - Page 30 11. Register the KT-NCC in EntraPass Global Edition software (See instructions on page 25). Using the KT- 1. Connect the network cable to the Ethernet Port #1. Finder 2. Select the KT-NCC from the devices list. Enter the MAC address of Ethernet Port #1 and click on Connect. DN1611-1809...
- Page 31 KT-NCC Installation Manual Configuring with a Static IP Address (continued) 3. Enter the information gathered in the Configuration Information Sheet. 4. Click on OK. DN1611-1809...
-
Page 32: Configuring The Gateway
2. Click the down arrow next to the text box marked and scroll down the selection of gateways until you reach the KT-NCC gateway you have just saved. The KT-NCC gateway will appear along with a number on the right-hand side of the dialog. - Page 33 Note: The MAC address can be found on the KT-NCC PCB, underneath the Ethernet #1. It is a 12- digit hexadecimal code, with each two digits separated by a dash (00-50-F9-xx-xx-xx) Refer to Figure 22: on Page 39 to locate the MAC address on the KT-NCC board.
-
Page 34: Configuring In A Wan
Configuring in a WAN In this type of architecture the EntraPass Server site is distant from the KT-NCC site module and the two communicate through the Internet. After you have verified the port forwarding configuration with the Network Administration, connected the KT-NCC to the EntraPass network and registered the KT-NCC to EntraPass Global Edition Server, you will configure the server parameters. - Page 35 2. Click the down arrow next to the text box marked and scroll down the selection of gateways until you reach the KT-NCC gateway you have just saved. The KT-NCC gateway will appear along with a number on the right-hand side of the dialog.
- Page 36 KT-NCC by default. It is advisable not to modify it. However, if you have to configure several KT-NCCs, ensure that every KT-NCC has a unique port number. This is necessary when forwarding ports to an IP address.
-
Page 37: Connection Status
The EntraPass Global Edition server application gives you access to a Connection list where you can monitor the KT-NCC status at all time, but mostly right after you will have configured the gateway. 1. In the application EntraPass Global Edition -... -
Page 38: Kt-Ncc Maintenance Recommendations
1. Biannual test for battery: Remove AC power from the KT-NCC and let it work on battery backup power for one hour. This test will ensure that in the event of a power failure, the battery will be able to support normal operations. This test should be performed twice a year. - Page 39 LEDS ETHERNET #1 HEARTBEAT ETHERNET #2 BLUE LED MAC ADDRESS LOCATION JP2-JP3 RESET RS-485 (COM 1 & 2) LITHIUM-ION BATTERY RELAYS (1 - 4) EARTH GROUND POWER TAMPER SWITCH BATTERY CONNECTOR AUX POWER Figure 22: KT-NCC Printed Circuit Board DN1611-1809...
- Page 40 120 VAC 7 Ah 16.5 VAC, 40 VA, Class 2, WIRE-IN LOCKNUT PART # KT-BATT-12 PLUG-IN ALSO AVAILABLE NOTE: DO NOT CONNECT TO RECEPTACLE CONTROLLED BY A SWITCH CABINET EARTH GROUND Figure 23: KT-NCC Wiring Diagram for North America DN1611-1809...
- Page 41 Figure 24: KT-NCC Wiring Diagram for Europe and Asia DN1611-1809...
- Page 42 13.75V +12V- +12V- EGND EGND TAMP TAMP LOCK LOCK BATT BATT SEALED RECHARGEABLE SEALED RECHARGEABLE BATTERY BATTERY 12 VOLTS 12 VOLTS 7 A/H 7 A/H 1.10” 0.75” 0.75” Mounting Holes Figure 25: KT-NCC PCB Mounted in Cabinet with Battery DN1611-1809...
- Page 43 Table 7: Hearbeat Blue LED Patterns Pulses Description Patterns 1 flash/sec KT-NCC is communicating with the server. Fast flashes KT-NCC is no longer communicating with the server. Steady on KT-NCC is starting up. (15-30 sec) Quick flashes Preparing to reboot.
- Page 44 KT-NCC Network Communications Controller Configuration Information Sheet Company Name:__________________Site Name:____________________ KT-NCC Name: _______________________________________________ Serial No.:____________________________________________________ MAC Address #1:_______________________________________________ IP Address #1:_________________________________________________ IP Address is: ___Static ___DHCP MAC Address #2:_______________________________________________ IP Address #2:_________________________________________________ IP Address is: ___Static ___DHCP (Reserved address recommended)
- Page 45 DN1611-1809...
- Page 46 © 2018 Tyco Security Products. All Rights Reserved. www.kantech.com DN1611-1809...
