Tools Needed

1. Console programmer/w
power supply
2. Phillips screwdriver

Installation Time:

1. Console Board Only
Approximately 5 minutes
2. Console with back cover on
Approximately 15 minutes
3. Console with back cover on
and TV with bracket on
Approximately 30 minutes
Note: Please make sure to program the treadmill to the correct model. If not you may have an error message on
the display or no button function.

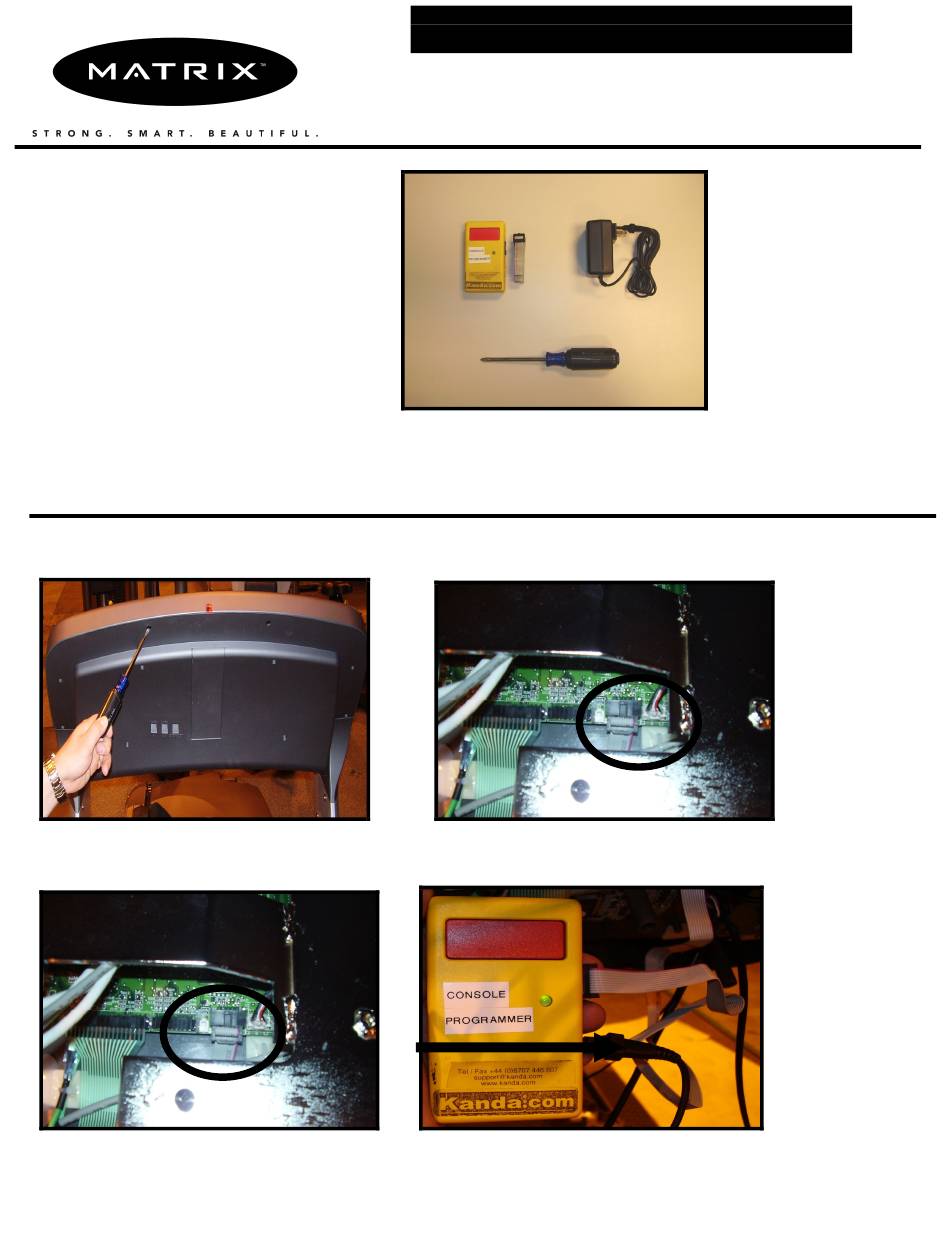

Installation Steps

1. Remove the console back cover
3. Plug the 10 pin cable from the programmer
into the 10 pin connector on the board
1000328 Rev 1

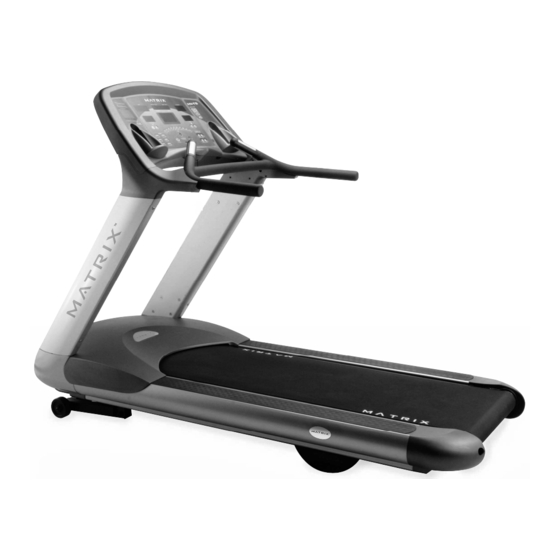

Treadmill Console Programmer SOP for Models
1.
2.
2. Locate the 10 pin programmer connector on the board
4. If using the 9 volt power supply plug it into the programmer
date 2/20/06
T5/T4/T5x
