c. Tighten the screw to secure the rear plate to the eyelet on the side bracket
( ).
FIGURE 4-6
d. Using two screws, secure the other side of the rear plate to the back of the post
( ).

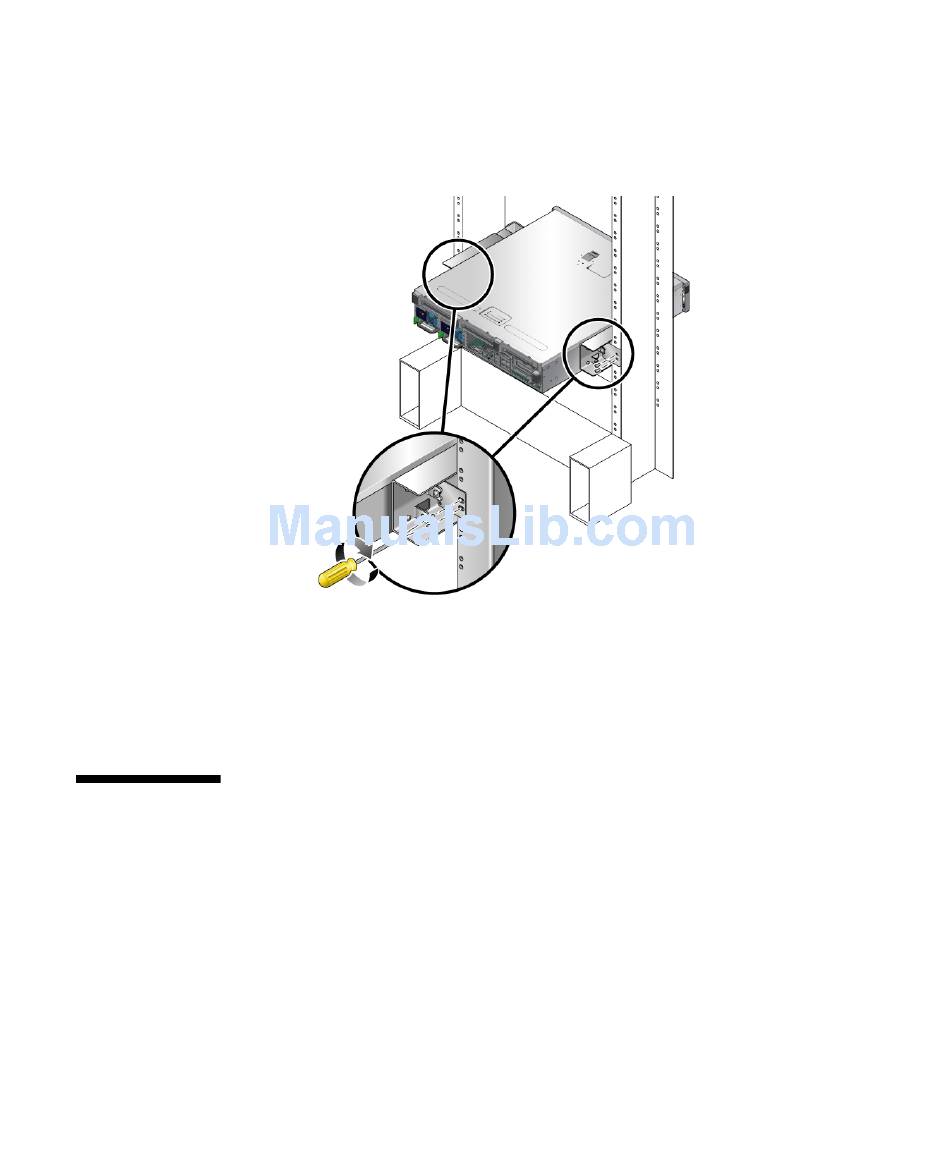

FIGURE 4-7
Securing the Rear Plate to the Back of the Post
FIGURE 4-7
The size of the screws varies, depending on your rack.
e. Repeat Step a
Hardmounting the Server in a 19-Inch 2-
Post Rack
To Install a Server With a Hardmount in a 19-
▼
Inch 2-Post Rack
The hardmount kit for a 19-inch 2-post rack consists of:
Two side brackets
■
through Step d to secure the rear plate on the other post.
Chapter 4 Mounting the Server Into a 2-Post Rack 61
