Summary of Contents for Avalue Technology EPI-QM87
-

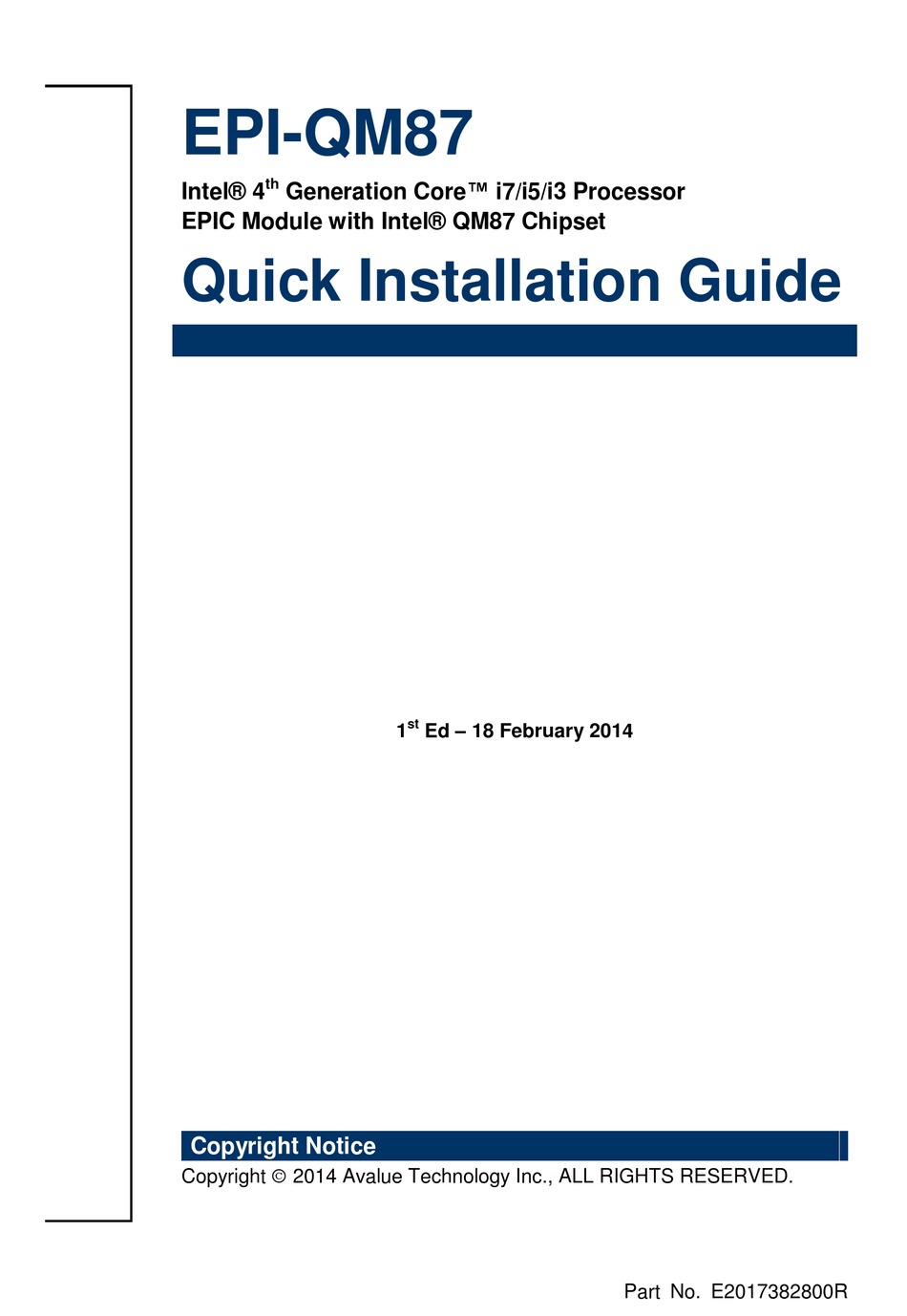

Page 1: Quick Installation Guide
EPI-QM87 Intel® 4 Generation Core™ i7/i5/i3 Processor EPIC Module with Intel® QM87 Chipset Quick Installation Guide Ed – 18 February 2014 Copyright Notice Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017382800R... - Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 4: Table Of Contents
2.3.21 Touch panel connector (JTOUCH) ..................22 2.3.22 General purpose I/O connector (JDIO) ................... 23 2.3.23 Power connector (PWR) ......................23 2.3.24 USB 2.0 connector (JUSB1) ....................24 2.3.25 USB 2.0 connector (JUSB2) ....................24 4 EPI-QM87 Quick Installation Guide... -
Page 5: Getting Started
Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EPI-QM87 EPIC Module 1 x Quick Installation Guide for EPI-QM87 1 x DVD-ROM contains the followings: — User’s Manual (this manual in PDF file) —... -
Page 6: Hardware Configuration
EPI-QM87 2. Hardware Configuration 6 EPI-QM87 Quick Installation Guide... -
Page 7: Product Overview
Quick Installation Guide 2.1 Product Overview EPI-QM87 Quick Installation Guide 7... - Page 8 EPI-QM87 8 EPI-QM87 Quick Installation Guide...
-
Page 9: Jumper And Connector List
Serial port 1 - Ring, +5V, +12V power JRI1/2 3 x 2 header, pitch 2.00mm selector Touch panel connector 3 x 1 header, pitch 2.54mm JTOUCH_SEL LCD Backlight brightness adjustment 3 x 1 header, pitch 2.00mm EPI-QM87 Quick Installation Guide 9... - Page 10 System Fan connector 4 x 1 wafer, pitch 2.54mm SYS_FAN USB1 USB 3.0 connector 0 & 1 USB2 USB 3.0 connector 2 & 3 JECDEG EC SMB Reserve connector 2 x 1 header, pitch 2.00mm 10 EPI-QM87 Quick Installation Guide...
-
Page 11: Setting Jumpers & Connectors
Quick Installation Guide 2.3 Setting Jumpers & Connectors 2.3.1 Clear CMOS (JBAT) RTC Working* RTC Reset *Default 2.3.2 Serial port 1/2 - Ring, +5V, +12V power selector (JRI1/2) Ring* +12V JRI2 JRI1 * Default EPI-QM87 Quick Installation Guide 11... -
Page 12: At/Atx Mode Selector, Front Panel & Led Settings (Jfp)
AT/ATX mode selector, Front panel & LED settings (JFP) Signal PWBT 1, 2 RST# 3, 4 PWR-LED 5, 6 *Default HDD-LED 7, 8 Short: AT MODE 9, 10 Open: ATX MODE CASE_OPEN# 11, 12 2.3.4 Touch panel connector (JTOUCH_SEL) 4/ 8W * Default 12 EPI-QM87 Quick Installation Guide... -
Page 13: Lcd Backlight Brightness Adjustment (Jvr)
Quick Installation Guide 2.3.5 LCD Backlight brightness adjustment (JVR) PWM mode* DC Mode * Default 2.3.6 Battery connector (BAT) Signal +3.3V EPI-QM87 Quick Installation Guide 13... -
Page 14: Audio Connector (Jaudio)
2.3.7 Audio connector (JAUDIO) Signal Signal FRONT-L-OUT FRONT-R-OUT LINE1-L-IN LINE1-R-IN MIC1-L-IN MIC1-R-IN LINE1_JD FRONT_JD MIC1_JD 2.3.7.1 Signal Description – Audio connector (JAUDIO) Signal Signal Description LINE1_JD Jack detection for line1 MIC1_JD Jack detection for mic1 14 EPI-QM87 Quick Installation Guide... -
Page 15: Cpu Fan Connector (Cpu_Fan)
Quick Installation Guide 2.3.8 CPU fan connector (CPU_FAN) Signal +12V EC_TACH0 FAN_PWM0 2.3.9 System fan connector (SYS_FAN) Signal +12V EC_TACH1 FAN_PWM1 EPI-QM87 Quick Installation Guide 15... -
Page 16: Ps/2 Keyboard & Mouse Connector (Jkbms)
EPI-QM87 2.3.10 PS/2 keyboard & mouse connector (JKBMS) Signal Signal KBCK KBDT KBVCC MSCK MSDT 2.3.11 SATA power connector (SATA_PWR) Signal 16 EPI-QM87 Quick Installation Guide... -
Page 17: Serial Port 1/ 2 Connector (Jcom1/ Jcom2)
DTR#_2 DCD#_2 RXD_2 2.3.13 Serial port 3/ 4 connector (JCOM3/ JCOM4) JCOM3 Signal Signal NRIC# NRTSC# NCTSC# NDSRC# NTXDC NDTRC# NDCDC# NRXDC JCOM4 Signal Signal NRID# NRTSD# NCTSD# JCOM4 JCOM3 NDSRD# NTXDD NDTRD# NDCDD# NRXDD EPI-QM87 Quick Installation Guide 17... -
Page 18: Serial Port 1/2 Rs-422-485 Mode (J422_1 / J422_2)
2.3.15 LCD Inverter Connector (JBKL) Signal +12V BKLEN VBRIGHT 2.3.15.1 Signal Description – LCD Inverter Connector (JBKL) Signal Signal Description Vadj = 0.75V ~ 4.25V (Recommended: 4.7KΩ, >1/16W) VBRIGHT BKLEN LCD backlight ON/OFF control signal 18 EPI-QM87 Quick Installation Guide... -
Page 19: Ec Smb Reserve Connector (Jecdeg)
Quick Installation Guide 2.3.16 EC SMB Reserve connector (JECDEG) Signal EC_SMCLK_DEBUG EC_SMDAT_DEBUG 2.3.17 5VSB connector in ATX (PWR_SB) Signal PSON_ATX# +ATX5VSB EPI-QM87 Quick Installation Guide 19... -
Page 20: Irda Connector (Jir)
EPI-QM87 2.3.18 IrDA connector (JIR) Signal IR_TX IR_RX 2.3.19 SPI connector (JSPI) Signal Signal +3.3V SPI_CS0# SPI_CLK SPI_SO SPI-SI HOLD# SPI_WP# 20 EPI-QM87 Quick Installation Guide... -
Page 21: Lvds Connector (Jlvds)
Quick Installation Guide 2.3.20 LVDS connector (JLVDS) Signal PIN PIN Signal +12V +12V LVDS_CLK2_N LVDS_CLK1_N LVDS_CLK2_P LVDS_CLK1_P LVDS_DATA7_N LVDS_DATA6_N LVDS_DATA7_P LVDS_DATA6_P LVDS_DATA5_N LVDS_DATA4_N LVDS_DATA5_P LVDS_DATA4_P LVDS_DATA3_N LVDS_DATA2_N LVDS_DATA3_P LVDS_DATA2_P LVDS_DATA1_N LVDS_DATA0_N LVDS_DATA1_P LVDS_DATA0_P +3.3V +3.3V EPI-QM87 Quick Installation Guide 21... -
Page 22: Touch Panel Connector (Jtouch)
EPI-QM87 2.3.21 Touch panel connector (JTOUCH) Signal SENSE TOUCH_GND 4-WIRE 5-WIRE 8-WIRE Right Sense Left Sense Bottom Sense Sense Top Sense Right Right Excite Left Left Excite Bottom Bottom Excite Top Excite 22 EPI-QM87 Quick Installation Guide... -
Page 23: General Purpose I/O Connector (Jdio)
Quick Installation Guide 2.3.22 General purpose I/O connector (JDIO) Signal PIN PIN Signal DIO_GP10 DIO_GP20 DIO_GP11 DIO_GP21 DIO_GP12 DIO_GP22 DIO_GP13 DIO_GP23 SMB_DATA_9555 10 SMB_CLK_9555 2.3.23 Power connector (PWR) Signal Signal +DC_IN +DC_IN EPI-QM87 Quick Installation Guide 23... -
Page 24: Usb 2.0 Connector (Jusb1)
USB_PP_Z_12 USB_PP_Z_13 Note: Wrong USB cable configuration with USB devices might damage USB devices 2.3.25 USB 2.0 connector (JUSB2) Signal Signal USBVCC4 USB3_RXN5_L USBVCC5 USB3_RXP5_L USB3_RXN6_L USB3_RXP6_L USB3_TXN5_L USB3_TXP5_L USB3_TXN6_L USB3_TXP6_L USB_PN_Z_8 USB_PP_Z_8 USB_PN_Z_10 USB_PP_Z_10 24 EPI-QM87 Quick Installation Guide...
