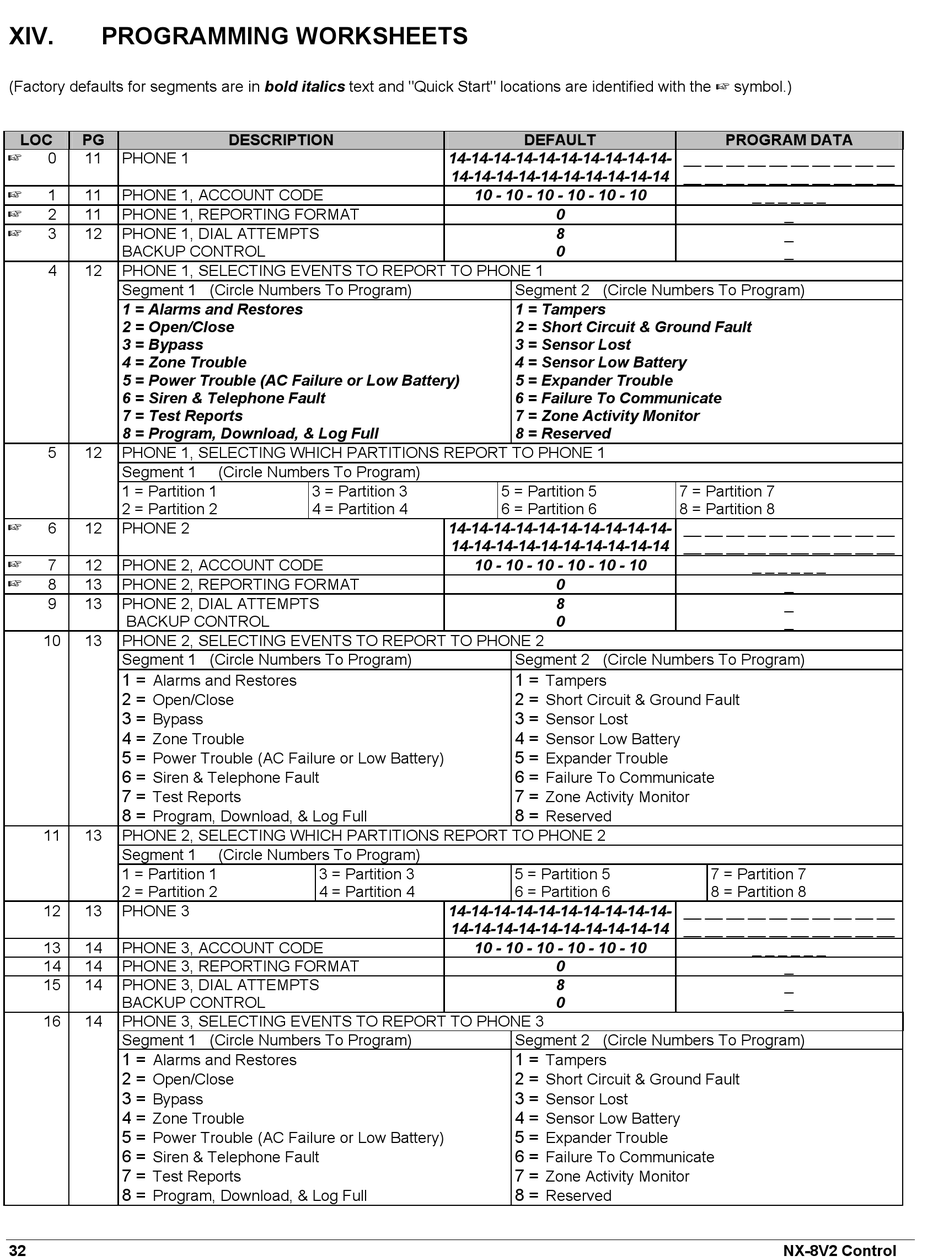

XIV.

PROGRAMMING WORKSHEETS

(Factory defaults for segments are in bold italics text and "Quick Start" locations are identified with the L symbol.)
LOC PG
0 11 PHONE 1
L
L 1 11 PHONE 1, ACCOUNT CODE
L 2 11 PHONE 1, REPORTING FORMAT
3 12 PHONE 1, DIAL ATTEMPTS
L
BACKUP CONTROL
4 12 PHONE 1, SELECTING EVENTS TO REPORT TO PHONE 1
Segment 1 (Circle Numbers To Program)
1 = Alarms and Restores
2 = Open/Close
3 = Bypass
4 = Zone Trouble
5 = Power Trouble (AC Failure or Low Battery)
6 = Siren & Telephone Fault
7 = Test Reports
8 = Program, Download, & Log Full
5 12 PHONE 1, SELECTING WHICH PARTITIONS REPORT TO PHONE 1
Segment 1
1 = Partition 1
2 = Partition 2
6 12 PHONE 2
L
7 12 PHONE 2, ACCOUNT CODE
L
L 8 13 PHONE 2, REPORTING FORMAT
9 13 PHONE 2, DIAL ATTEMPTS
BACKUP CONTROL
10 13 PHONE 2, SELECTING EVENTS TO REPORT TO PHONE 2
Segment 1 (Circle Numbers To Program)
1 =
Alarms and Restores
2 =
Open/Close
3 =
Bypass
4 =
Zone Trouble
5 =
Power Trouble (AC Failure or Low Battery)
6 =
Siren & Telephone Fault
7 =
Test Reports
8 =
Program, Download, & Log Full
11 13 PHONE 2, SELECTING WHICH PARTITIONS REPORT TO PHONE 2
Segment 1
1 = Partition 1
2 = Partition 2
12 13 PHONE 3
13 14 PHONE 3, ACCOUNT CODE
14 14 PHONE 3, REPORTING FORMAT
15 14 PHONE 3, DIAL ATTEMPTS
BACKUP CONTROL
16 14 PHONE 3, SELECTING EVENTS TO REPORT TO PHONE 3
Segment 1 (Circle Numbers To Program)
1 =
Alarms and Restores
2 =
Open/Close
3 =
Bypass
4 =
Zone Trouble
5 =
Power Trouble (AC Failure or Low Battery)
6 =
Siren & Telephone Fault
7 =
Test Reports
8 =
Program, Download, & Log Full
32
DESCRIPTION
(Circle Numbers To Program)
3 = Partition 3
4 = Partition 4
(Circle Numbers To Program)
3 = Partition 3
4 = Partition 4
DEFAULT
14-14-14-14-14-14-14-14-14-14-
14-14-14-14-14-14-14-14-14-14
10 - 10 - 10 - 10 - 10 - 10
0
8
0
Segment 2 (Circle Numbers To Program)
1 = Tampers
2 = Short Circuit & Ground Fault
3 = Sensor Lost
4 = Sensor Low Battery
5 = Expander Trouble
6 = Failure To Communicate
7 = Zone Activity Monitor
8 = Reserved
5 = Partition 5
6 = Partition 6
14-14-14-14-14-14-14-14-14-14-
14-14-14-14-14-14-14-14-14-14
10 - 10 - 10 - 10 - 10 - 10
0
8
0
Segment 2 (Circle Numbers To Program)
1 =
Tampers
2 =
Short Circuit & Ground Fault
3 =
Sensor Lost
4 =
Sensor Low Battery
5 =
Expander Trouble
6 =
Failure To Communicate
7 =
Zone Activity Monitor
8 =
Reserved
5 = Partition 5
6 = Partition 6
14-14-14-14-14-14-14-14-14-14-
14-14-14-14-14-14-14-14-14-14
10 - 10 - 10 - 10 - 10 - 10
0
8
0
Segment 2 (Circle Numbers To Program)
1 =
Tampers
2 =
Short Circuit & Ground Fault
3 =
Sensor Lost
4 =
Sensor Low Battery
5 =
Expander Trouble
6 =
Failure To Communicate
7 =
Zone Activity Monitor
8 =
Reserved
PROGRAM DATA
__ __ __ __ __ __ __ __ __ __
__ __ __ __ __ __ __ __ __ __
_ _ _ _ _ _
_
_
_
7 = Partition 7
8 = Partition 8
__ __ __ __ __ __ __ __ __ __
__ __ __ __ __ __ __ __ __ __
_ _ _ _ _ _
_
_
_
7 = Partition 7
8 = Partition 8
__ __ __ __ __ __ __ __ __ __
__ __ __ __ __ __ __ __ __ __
_ _ _ _ _ _
_
_
_
NX-8V2 Control
