  • Page 1: Installation Manual

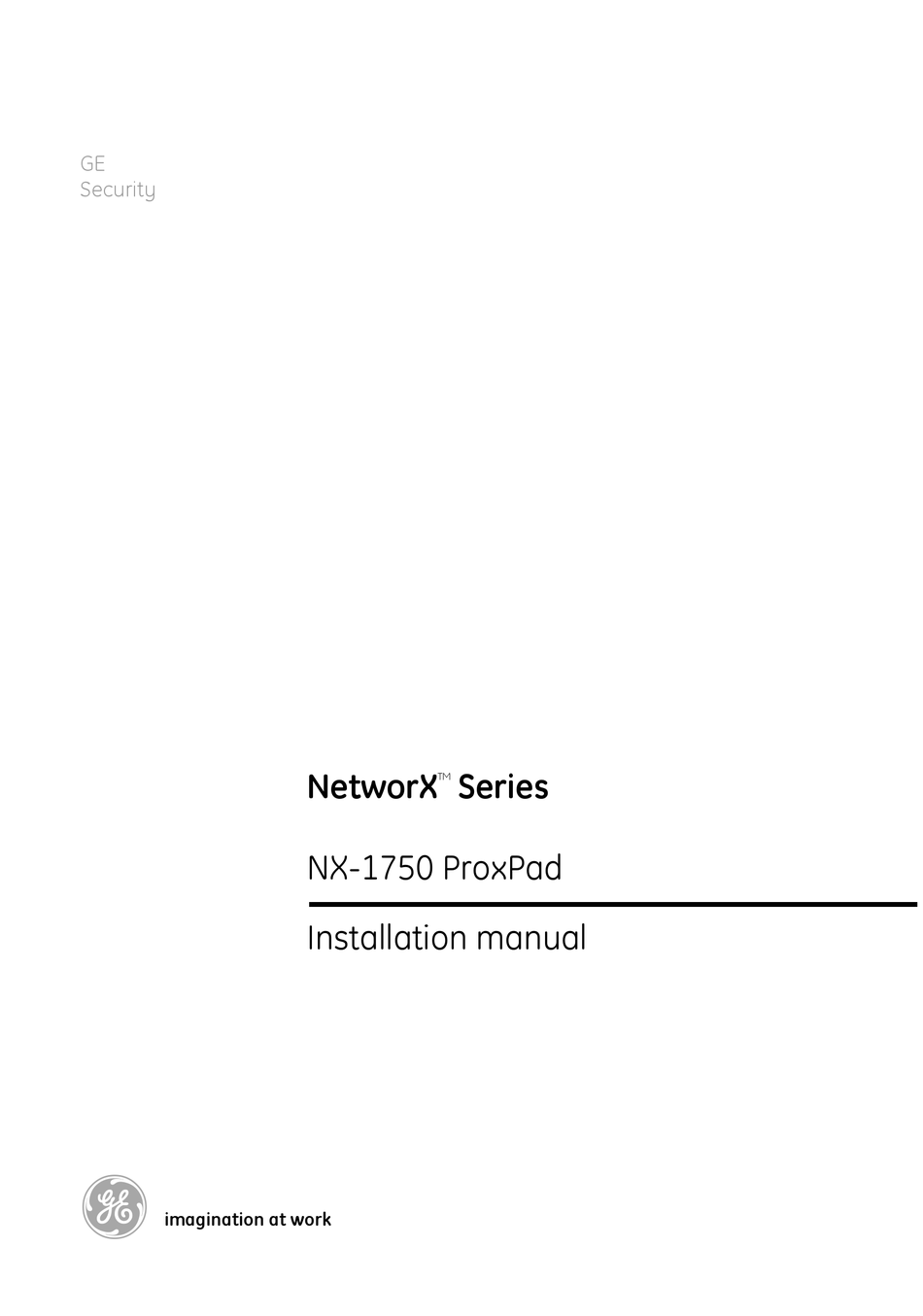

    Security NetworX Series NX-1750 ProxPad Installation manual imagination at work...
  • Page 2 Symbol Legend Indicates a procedure, practice, condition, or statement that, if not strictly observed, could result in personal injury. * This symbol indicates electrical warnings and cautions. Warning Indicates a procedure, practice, condition, or statement that, if not strictly observed, could result in damage to or destruction of equipment or property. ** This symbol indicates general warnings and cautions.

  • Page 3: Table Of Contents

    CONTENTS CONTENTS ....................................3 GENERAL DESCRIPTION...............................4 ORDERING INFORMATION ..............................4 INSTALLATION AND WIRING...............................5 ENROLLING...................................5 ADDRESSING ..................................6 LED DESCRIPTIONS ................................7 PROGRAMMING..................................8 USING THE LED KEYPAD..............................8 Entering the Program Mode................................8 Entering the Module Address ................................8 Programming a Location ................................. 8 Exiting the Program Mode:................................9 USING THE LCD KEYPAD ..............................10 PROGRAMMING DATA TYPES ............................10 USER CARDS ..................................10...

  • Page 4: General Description

    GENERAL DESCRIPTION The NX-1750 ProxPad is the combination of a proximity card reader and a keypad. The NX- 1750 ProxPad allows to control an access door and to show the system status. The NX-1750 ProxPad can be added to the NetworX range of panels. The NX-1750 features include: •...

  • Page 5: Installation And Wiring

    INSTALLATION AND WIRING Connection Terminal TERMINAL DESCRIPTION SPARE Spare terminal to interconnect the panel zone input to a door contact. RELAY NO Relay output. The contact is normally open when the relay is not activated. RELAY COM Relay output. Common of the relay contact. RELAY NC Relay output.

  • Page 6: Addressing

    ADDRESSING The ProxPad must be set to the correct address and partition number before it can be used on the system. The following describes the procedure for viewing and modifying the address of a ProxPad: • Enter Program Mode using the procedure outlined in the control panel Installation Manual.

  • Page 7: Led Descriptions

    LED DESCRIPTIONS NetworX Front view ICON / LED DESCRIPTION System armed System not armed (red) Flashing System in alarm System Ready to arm System Not Ready to arm (green) Flashing System Ready to Force arm Fire alarm Normal (red) Flashing Fire trouble Mains and battery ok Mains trouble...

  • Page 8: Programming

    PROGRAMMING USING THE LED KEYPAD Only NX-13xx keypad series allow to program user cards. ACTION RESULT Entering the Program Mode Enters the Program Mode. Stay, Chime, Exit, Bypass & Cancel LEDS will flash. If the "Go To Program Code" is valid, the "Service" Go To Program Code LED will flash and the 5 function LEDs will illuminate Factory Default is...

  • Page 9: Exiting The Program Mode

    To Enter a Location: [location] # The Armed LED will flash. If the location is valid, the "Armed" LED will extinguish, the "Ready" LED will illuminate, and the zone LED’s will show the data for the first segment of this location. To Change Location Data: [changed data] The "Ready"...

  • Page 10: Using The Lcd Keypad

    USING THE LCD KEYPAD All steps required for programming are the same as the aforementioned LED keypad. The LCD keypad display will prompt you for the data required. While in the programming mode, and not in a location, the number in parenthesis is the location you were previously changing.

  • Page 11: Adding One User

    Adding One User ACTION RESULT STAY Accesses Activation mode 3-digit user number If a valid user number is entered, LED1 on any enabled readers will begin to flash. if 4-digit user code Example: if 6-digit user codes If the user card is not already in the system, Scan the card designated for the user it will be added and mapped to the entered entered in the previous step.

  • Page 12: Activate One User (Single User)

    Activate One User (Single User) ACTION RESULT Accesses Activation mode CHIME (not available on NX-1248E) If a valid user number is entered, the “Ready” ICON 3-digit user number on any enabled readers will begin to flash. if 4-digit user code Example: if 6-digit user codes The card information for the user entered in the...

  • Page 13: Programming Locations

    PROGRAMMING LOCATIONS Location 0 Programming the Scan Functions (3 segments of binary data) Location 0 is used to select the particular function(s) that are activated when a card is scanned. More than one function may be selected. If more than one function is selected, they will execute in order from function 1 to function 8.

  • Page 14: Location 2 Programming The Reader Option

    Segment 2 Program a number from 0-15 to represent the corresponding X-10 House code from the following table. Default is 0. X-10 ADDRESS CODES 12=M 13=N 10=K 14=O 11=L 15=P Segment 3 Single Beep Function Program the X-10 function that is performed when a card is scanned once (one beep). This location only needs to be programmed if Location 0, Segment 1, Option 7 is set.
  • Page 15 Segment 2 System Options (cont’d): LED1 - Reserved. LED2 - Bypass Hide. When system is armed, all bypassed zone LED’s will be off. LED3 - Reserved. LED4 - Reserved. LED5 - Reserved. LED6 - Reserved LED7 - Reserved LED8 - Reserved Segment 3 Enabling the Schedules for the Onboard Relay Output: LED1 - “On"...

  • Page 16: Location 3 Programming The Zones

    Location 3 Programming the Zones (3 segments of numerical data) Segment 1 Door Shunt Zone Program the zone that will be monitored as a door for access control. This location must be programmed with a valid zone for monitored access control functions to work properly. (Default is 0) Additionally, this zone must be configured in the control panel as an “access control”...

  • Page 17: Location 6

    Location 6 Programming the Closing Time for Schedule 1 (2 segments of numerical data) Segment 1 Program the hour of the closing time in 24-hour format. (Default is 20 = 8:00 PM) Segment 2 Program the minutes after the hour of the closing time for Schedule 1. (Default is 0) Location 7 Programming the Days for Schedule 1 (1 segment of binary data)

  • Page 18: Programming Activation Data For User Cards 1 Through 120

    Location 41 Programming Activation Data for User Cards 1 through 120 (15 segments of binary data) This location is used to select which user cards 1 through 120 are activated. If the LED is “on”, the card is active. Each segment has 8 LEDs corresponding to the 8 possible user cards. Example: Segment 4, LED 2 indicates that user card 26 is active.

  • Page 19: Nx-1750 Programming Worksheets

    NX-1750 PROGRAMMING WORKSHEETS (Factory defaults are in bold italic text) DESCRIPTION DEFAULT YOUR DATA SCAN FUNCTIONS Seg 1 SINGLE BEEP FUNCTION "On" to send Code Entry function to the control panel. "On" to activate the Armed Away mode. "On" to activate the Armed Stay mode. "On"...
  • Page 20 DESCRIPTION DEFAULT YOUR DATA Seg 4 DOUBLE BEEP FUNCTION 0 = All units off 1 = All lights on 2 = On 3 = Off 4 = Dim 5 = Bright 6 = All lights off Seg 5 TRIPLE BEEP FUNCTION 0 = All units off 1 = All lights on 2 = On...
  • Page 21 DESCRIPTION DEFAULT YOUR DATA Seg 4 DOOR OPTIONS 1 = "On" if locking mechanism is a Maglock or Drop Bolt. 2 = "On" if access is allowed regardless of Armed status of the system. 3 = "On" if the door is not to be latched unlocked during an open schedule. 4 = "On"...
  • Page 22 DESCRIPTION DEFAULT YOUR DATA DAYS FOR SCHEDULE 2 1 = “On” if schedule is active on Sunday. 2 = “On” if schedule is active on Monday. 3 = “On” if schedule is active on Tuesday. 4 = “On” if schedule is active on Wednesday. 5 = “On”...
  • Page 23 DESCRIPTION DEFAULT YOUR DATA DAYS FOR SCHEDULE 5 1 = “On” if schedule is active on Sunday. 2 = “On” if schedule is active on Monday. 3 = “On” if schedule is active on Tuesday. 4 = “On” if schedule is active on Wednesday. 5 = “On”...
  • Page 24 DESCRIPTION DEFAULT YOUR DATA DAYS FOR SCHEDULE 8 1 = “On” if schedule is active on Sunday. 2 = “On” if schedule is active on Monday. 3 = “On” if schedule is active on Tuesday. 4 = “On” if schedule is active on Wednesday. 5 = “On”...
  • Page 25 DESCRIPTION DEFAULT YOUR DATA ACTIVATION DATA FOR USER CARDS 121 - 240 User Cards 121 – 128 User Cards 129 – 136 User Cards 137 – 144 LED1 = Card 1 User Cards 145 – 152 LED2 = Card 2 User Cards 153 –...

  • Page 26: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical specifications NX-1750 Power supply voltage 10.5 - 14Vdc supplied by keypad bus Current consumption - Nominal 30mA - Maximum 120mA Relay contact rating 1A/24Vdc resistive load Operating temperature 0 - 49° C Humidity Max 93% non condensating Dimensions WxHxD Approx.
  • Page 27 EMEA Distribution is a division of GE Security EMEA bvba COPYRIGHT ©2005 © GE Security EMEA bvba. All rights reserved. GE Security EMEA bvba grants the right to reprint this manual for internal use only. GE Security EMEA bvba reserves the right to change information without notice.
