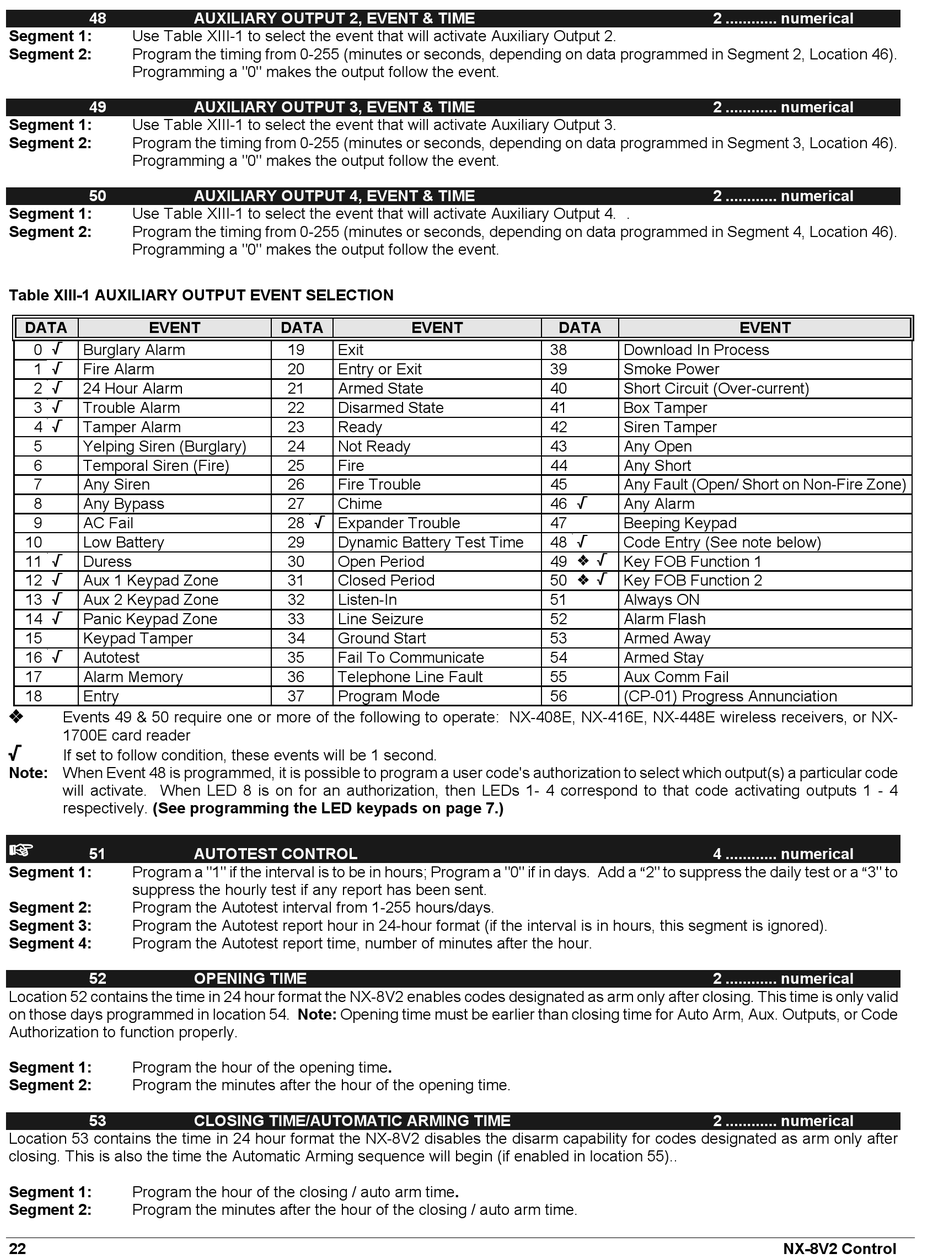

48
Segment 1: Use Table XIII-1 to select the event that will activate Auxiliary Output 2.
Segment 2: Program the timing from 0-255 (minutes or seconds, depending on data programmed in Segment 2, Location 46).
Programming a "0" makes the output follow the event.
49
Segment 1: Use Table XIII-1 to select the event that will activate Auxiliary Output 3.
Segment 2: Program the timing from 0-255 (minutes or seconds, depending on data programmed in Segment 3, Location 46).
Programming a "0" makes the output follow the event.
50
Segment 1: Use Table XIII-1 to select the event that will activate Auxiliary Output 4. .
Segment 2: Program the timing from 0-255 (minutes or seconds, depending on data programmed in Segment 4, Location 46).
Programming a "0" makes the output follow the event.
Table XIII-1 AUXILIARY OUTPUT EVENT SELECTION
DATA EVENT
0 / Burglary Alarm
1  / Fire Alarm
2  / 24 Hour Alarm
3  / Trouble Alarm
4  / Tamper Alarm
5 Yelping Siren (Burglary)
6 Temporal Siren (Fire)
7 Any Siren
8 Any Bypass
9 AC Fail
10 Low Battery
11  / Duress
12  / Aux 1 Keypad Zone
13  / Aux 2 Keypad Zone
14  / Panic Keypad Zone
15 Keypad Tamper
16  / Autotest
17 Alarm Memory
18 Entry
˜
Events 49 & 50 require one or more of the following to operate: NX-408E, NX-416E, NX-448E wireless receivers, or NX-
1700E card reader
/
If set to follow condition, these events will be 1 second.
Note: When Event 48 is programmed, it is possible to program a user code's authorization to select which output(s) a particular code
will activate. When LED 8 is on for an authorization, then LEDs 1- 4 correspond to that code activating outputs 1 - 4
respectively. (See programming the LED keypads on page 7.)
L
51
Segment 1: Program a "1" if the interval is to be in hours; Program a "0" if in days. Add a A2" to suppress the daily test or a A3" to
suppress the hourly test if any report has been sent.
Segment 2: Program the Autotest interval from 1-255 hours/days.
Segment 3: Program the Autotest report hour in 24-hour format (if the interval is in hours, this segment is ignored).
Segment 4: Program the Autotest report time, number of minutes after the hour.
52
Location 52 contains the time in 24 hour format the NX-8V2 enables codes designated as arm only after closing. This time is only valid
on those days programmed in location 54. Note: Opening time must be earlier than closing time for Auto Arm, Aux. Outputs, or Code
Authorization to function properly.
Segment 1: Program the hour of the opening time.
Segment 2: Program the minutes after the hour of the opening time.
53
Location 53 contains the time in 24 hour format the NX-8V2 disables the disarm capability for codes designated as arm only after
closing. This is also the time the Automatic Arming sequence will begin (if enabled in location 55)..
Segment 1: Program the hour of the closing / auto arm time.
Segment 2: Program the minutes after the hour of the closing / auto arm time.
22
AUXILIARY OUTPUT 2, EVENT & TIME
AUXILIARY OUTPUT 3, EVENT & TIME
AUXILIARY OUTPUT 4, EVENT & TIME
DATA
19 Exit
20 Entry or Exit
21 Armed State
22 Disarmed State
23 Ready
24 Not Ready
25 Fire
26 Fire Trouble
27 Chime
28  / Expander Trouble
29 Dynamic Battery Test Time
30 Open Period
31 Closed Period
32 Listen-In
33 Line Seizure
34 Ground Start
35 Fail To Communicate
36 Telephone Line Fault
37 Program Mode
AUTOTEST CONTROL
OPENING TIME
CLOSING TIME/AUTOMATIC ARMING TIME
EVENT DATA
38
39
40
41
42
43
44
45
46  /
47
48  /
49 ˜ / Key FOB Function 1
50 ˜ / Key FOB Function 2
51
52
53
54
55
56
2 ............ numerical
2 ............ numerical
2 ............ numerical
EVENT
Download In Process
Smoke Power
Short Circuit (Over-current)
Box Tamper
Siren Tamper
Any Open
Any Short
Any Fault (Open/ Short on Non-Fire Zone)
Any Alarm
Beeping Keypad
Code Entry (See note below)
Always ON
Alarm Flash
Armed Away
Armed Stay
Aux Comm Fail
(CP-01) Progress Annunciation
4 ............ numerical
2 ............ numerical
2 ............ numerical
NX-8V2 Control
