Jøtul GF 100 DV II, GF 200 DV II Installation And Operation Instructions Manual

Jøtul GF 100 DV II, GF 200 DV II Installation And Operation Instructions Manual

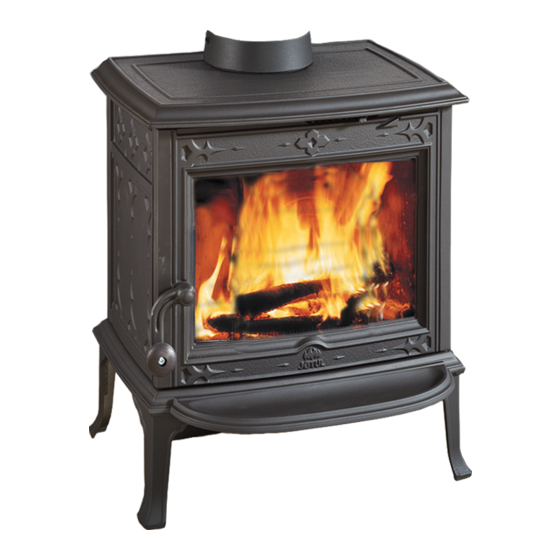

Jotul installation and operation instructions gas heater gf 100 dv ii nordic qt, gf 200 dv ii lillehammer
Hide thumbs Also See for GF 100 DV II, GF 200 DV II:
Table of Contents

Advertisement

Quick Links

Installation
and
Operation
Instructions
Jøtul GF 100 DV II
Nordic QT
Jøtul GF 200 DV II
Lillehammer
WARNING:
IF THE INFORMATION IN THESE INSTRUCTIONS
ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE VICIN-
ITY OF THIS OR ANY OTHER APPLIANCE.
INSTALLATION:
INSTALLATION AND SERVICE MUST BE PER-
FORMED BY A QUALIFIED INSTALLER, SERVICE
AGENCY OR LICENSED GAS SUPPLIER.
THIS PRODUCT MUST BE INSTALLED BY A
LICENSED PLUMBER OR GAS-FITTER WHEN
INSTALLED IN THE COMMONWEALTH OF
MASSACHUSETTS.
A CARBON MONOXIDE (CO) DETECTOR SHALL
BE INSTALLED IN THE SAME ROOM AS THE
APPLIANCE.
WHAT TO DO IF YOU SMELL GAS:
• DO NOT TRY TO LIGHT ANY APPLIANCE.
• DO NOT TOUCH ANY ELECTRICAL SWITCHES.
• DO NOT USE THE PHONE IN YOUR BUILDING.
IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A
NEIGHBOR'S PHONE.
• FOLLOW YOUR GAS SUPPLIER'S INSTRUCTIONS.
• IF YOU CANNOT REACH YOUR GAS SUPPLIER,
CALL THE FIRE DEPARTMENT.
AVERTISSEMENT:
ASSUREZ-VOUS DE BIEN SUIVRE LES INSTRUC-
TIONS DANS CETTE NOTICE POUR REDUIRE AU
MINIMUM LE RISQUE D'INCENDIE OU POUR EVITER
TOUT DOMMAGE MATERIEL, TOUTE BLESSURE OU
MORTALIT'E.
NE PAS ENTREPOSER NI UTILISER D'ESSENCE NI
OU LIQUIDES INFLAMMABLES DANS LE VOISINAGE
DE CET APPAREIL OU DE TOUT AUTRE APPAREIL.
L'INSTALLATION LE SERVICE DOIVENT ETRE
EXECUTES PAR UN INSTALLATEUR QUALIFIE,
AGENCE DE SERVICE OU LE FOURNISSEUR DE
GAZ.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ.
• NE PAS TENTER D'ALLUMER L'APPAREIL
• NE TOUCHEZ A AUCUM NTERRUPTEUR.
• NE PAS VOUS SERVIR DES TELEPHONES SE
TROUVANT DANS LE BATIMENT OU VOUS VOUS
TROUVEZ.
• APPELEZ IMMEDIATEMENT VOTRE FOURNISSEUR
DE GAZ CHEZ UN VOISIN. SUIVEZ LES INSTRUC-
TIONS DU FOURNISSEUR.
• SI VOUS NE POUVEZ REJOINDRE LE
FOURNISSEUR DE GAZ, APPELEZ LE SERVICE DES
INCENDIES.
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
1

Advertisement

Table of Contents
loading

Related Manuals for Jøtul GF 100 DV II, GF 200 DV II

Summary of Contents for Jøtul GF 100 DV II, GF 200 DV II

  • Page 1: And Operation

    Installation Operation Instructions Jøtul GF 100 DV II Nordic QT Jøtul GF 200 DV II Lillehammer WARNING: IF THE INFORMATION IN THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLO- SION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. FOR YOUR SAFETY: DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICIN-...
  • Page 2 GF 100 DV II Nordic QT GF 200 DV II Lillehammer Welcome to Jøtul... Congratulations on the purchase of your new Jøtul gas heater. We at Jøtul are glad you’ve made the decision to warm your hearth with a Jøtul product. Your new stove exemplifies over 150 years experience as the world’s largest manufacturer of solid fuel burning appliances.

  • Page 3: Table Of Contents

    Table of Contents Specifications, GF 100 DV II ... 4 Specifications, GF 200 DV II ... 5 General Information ... 6 Service Tools ... 6 Safety Information ... 7 Installation Requirements Location ... 7 Hearth Protection ... 7 Clearances ... 8 Mantel &...

  • Page 4: Specifications, Gf 100 Dv Ii

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Jøtul GF 100 DV II Nordic QT Specifications Input Rates Natural Gas 17,000 BTU/hr. maximum input 9,900 BTU/hr. minimum input Propane 16,000 BTU/hr. maximum input 8,700 BTU/hr. minimum input Inlet Pressure: Natural Gas: 5.0 WC (1.24 kPa) Propane:...

  • Page 5: Specifications, Gf 200 Dv Ii

    Jøtul GF 200 DV II Lillehammer Specifications Input Rates Natural Gas 20,000 BTU/hr. maximum input 11,400 BTU/hr. minimum input Propane 18,000 BTU/hr. maximum input 8,450 BTU/hr. minimum input Inlet Pressure: Natural Gas: 5.0 WC (1.24 kPa) 7.0 WC (1.74 kPa) Propane: 12.0 WC (2.98 kPa) 14.6 WC (3.63 kPa)

  • Page 6: General Information

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer General Information THIS HEATER MUST BE INSTALLED AND MAINTAINED BY A QUALIFIED SERVICE AGENCY. The installation and repair of this appliance must be done by a qualified service person. Failure to properly install and maintain this heater could result in an unsafe or hazardous installation, which may result in a fire, explosion, property damage, personal injury or loss...

  • Page 7: Safety Information

    Safety Information Your stove will reach high surface temperatures during normal operation. Please note the following cautionary information. Due to the high operating temperatures, this appliance should be located out of traffic areas and away from furniture and draperies. Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns and/or clothing ignition.

  • Page 8: Clearances

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Stove and Vent Clearance Requirements Minimum Clearances from the Stove to Combustibles: Measured from the stove top plate. See figs. 2-4. For Both Stoves Rear: 0” (0 mm) Ceiling: 42”...

  • Page 9: Vent Requirements Adding Restriction

    Venting Requirements Both stoves may be installed with a vertical or horizontal termination and must conform to the configuration requirements described in this section. Vent components from the manufacturers listed below are approved for use: • Simpson Dura-Vent GS • Selkirk Metalbestos •...

  • Page 10: Vertical Termination

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Vertical Vent Termination The Jøtul GF 100 DV II and Jøtul GF 200 DV II are ap- proved for vertical venting through a ceiling or to a roof termination following these guidelines: The termination should fall within the shaded area of the grid depicted in fig.7 below.
  • Page 11 Venting Through a Fireplace Co-linear Vent Installation This appliance may be vented through a masonry or Class A prefabricated chimney using a Co-linear Flexible Vent system approved for use with a solid-fuel burning fireplace. When installed in the manner described below, this system can improve the performance of the appli- ance in cold climate situations, as well as simplify the vent installation.

  • Page 12: Horizontal Termination

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Horizontal Vent Termination Wall Cut-out Opening: A minimum 10" X 10" (250 mm x 250 mm) square hole is required for proper pipe clearances through a combustible wall. Use one of the approved vent manufacturers’...
  • Page 13 Figure 13. Horizontal Termination with Vertical Rise. Figure 15. Termination Clearance to overhangs Wall Shield Installation The decorative Wall Shield, included in the Miscellaneous Hardware bag, is used to obscure the vent hole in the wall in installations vented directly off the rear of the stove.

  • Page 14: Vent Terminal Clearances

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Horizontal Termination Clearance Figure 17. Vent Terminal Clearances - National Fuel Gas Code. A = Clearance above grade, veranda, porch , deck, or balcony : 12 inches (30 cm) minimum. B = Clearance to window or door that may be opened: **Min.

  • Page 15: Mobile Home Installation

    Mobile Home Installation These appliances can be installed for use in a mobile home in the U.S. and Canada provided: 1. The stove is secured to the floor of the mobile home. Use the Jøtul Floor Bracket Kit appropriate for your stove’s leg;...

  • Page 16: Gas Conversion Procedure

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Gas Conversion Procedure 1. Turn off gas supply to stove. 2. Remove the stove Top Plate (3). 3. GF 100 DV II Only: Remove the front plate from the stove.

  • Page 17: Gas Connection

    Orifice Figure 20. Pilot orifice removal and replacement. Gasket Mounting Screws Regulator Tower Figure 21. Regulator Assembly. Figure 22. Burner plate engagement. Gas Supply Connection Pilot Head NOTE: If the optional Blower will be installed, use a 90° Elbow off the valve to create adequate clearance for the main gas line.

  • Page 18: Gas Pressure

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Gas Pressure Correct gas pressure is essential for efficient and safe operation. It is important that the correct pressure is established at the time of the installation. Proper gas pressure provides a consistent flow of gas to the appli- ance and is instrumental in checking for gas leaks.

  • Page 19: Air Shutter Adjustment

    High Altitude Orifice Chart GF 200 DV II Only Orifice Elevation Fuel Size Natural Gas 0 - 2000 ft. Propane 1.20 mm (0 - 610 m) Natural Gas 2001 - 4500 ft. Propane (611 - 1370 m) Derating Procedure: 1. To derate this unit, install the appropriate orifice per the High Altitude chart.

  • Page 20: Wall Thermostat

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Optional Wall Thermostat or Remote Control Use only a 750 millivolt DC two-wire circuit thermostat with this appliance. The thermostat should be placed in the same room as the heater, typically 5 feet off the floor.

  • Page 21: System Check

    System Check 1. PURGING THE GAS LINE: When lighting the appli- ance for the first time, it will take a few moments to clear the gas line of air. Once this purge is complete, the appliance will operate as described in the lighting instructions.

  • Page 22: Operation

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Operation Familiarize yourself with the controls of your stove. Make sure that anyone else using the appliance is also familiar with the controls and operation procedures. Always follow the Lighting Instructions on the inside back cover of this manual and also located on the Rating Plate attached to the burner assembly.
  • Page 23 Figure 33. Removal and replacement of the glass panel. Figure 34. Wrap the gasket around the glass panel. Always replace any damaged or broken parts with JØTUL AUTHORIZED PARTS ONLY. These are available through your Jøtul dealer. Never use any substitute parts on your stove.

  • Page 24: Optional Blower

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Optional Blower # 155631 CONNECT THE GAS SUPPLY TO THE STOVE BEFORE INSTALLING THIS BLOWER. USE A 90° ELBOW OFF THE GAS VALVE TO CREATE ADEQUATE GAS LINE CLEARANCE. THIS BLOWER MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL CODES...

  • Page 25: Blower Operation

    Figure 37 . Attach Blower to the stove bottom and connect wires to Snapstat. Snapstat Connectors 4. Attach the Blower to the stove. GF 100 DV II: First install the Mounting Bracket to the holes in the bottom of the rear shroud using two #8 x 1/2”...
  • Page 26 GF 100 DV II Nordic QT GF 200 DV II Lillehammer GF 100 DV II / GF 200 DV II Illustrated Parts Breakdown / Firebox Assembly Figure 39.
  • Page 27 Parts List - GF 100 DV II / GF 200 DV II Firebox Assembly Part Description Rear Shroud, Matte Black ... 22055592 Rear Shroud, Jøtul Iron ... 22055585 Burner Control Switch... 129123 Switch Box, Matte Black ... 22092592 Switch Box, Jøtul Iron ...22092585 Sheet Metal Screw, #8 x 1/2”...

  • Page 28: Illustrated Parts Breakdown

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer Illustrated Parts Breakdown / GF 100 DV II Nordic QT Figure 40 . GF 200 DV II Lillehammer Figure 41. Cast Iron and Associated Hardware...
  • Page 29 Cast Iron Parts List GF 100 DV II Nordic QT Cast Iron Parts Matte Black Top Casting 10391092 Side Panel 10426992 Front Panel 10390992 Screw, M6 x 12 Truss Head Phillips, (4) ... 118045 GF 200 DV II Lillehammer Cast Iron Parts Matte Black 1.

  • Page 30: Addendum - Brick Panel Kit

    GF 100 DV II Nordic QT GF 200 DV II Lillehammer CAUTION! THE BRICK PANELS ARE EXTREMELY FRAGILE. HANDLE WITH CARE. WEAR SAFETY GLOVES TO PROTECT HANDS. 1. Remove the Top Plate. Simply lift it up off of the stove body. It is not fastened. 2.

  • Page 31: Lighting Instructions

    LIGHTING INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING. IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. A. This appliance has a pilot which must be lit by hand.
  • Page 32 GF 100 DV II Nordic QT GF 200 DV II Lillehammer This appliance must be installed in conformance with local and national building regulations. Before beginning the installation, it is important that the these instructions be carefully read and understood. Jøtul maintains a policy of continual product development.
