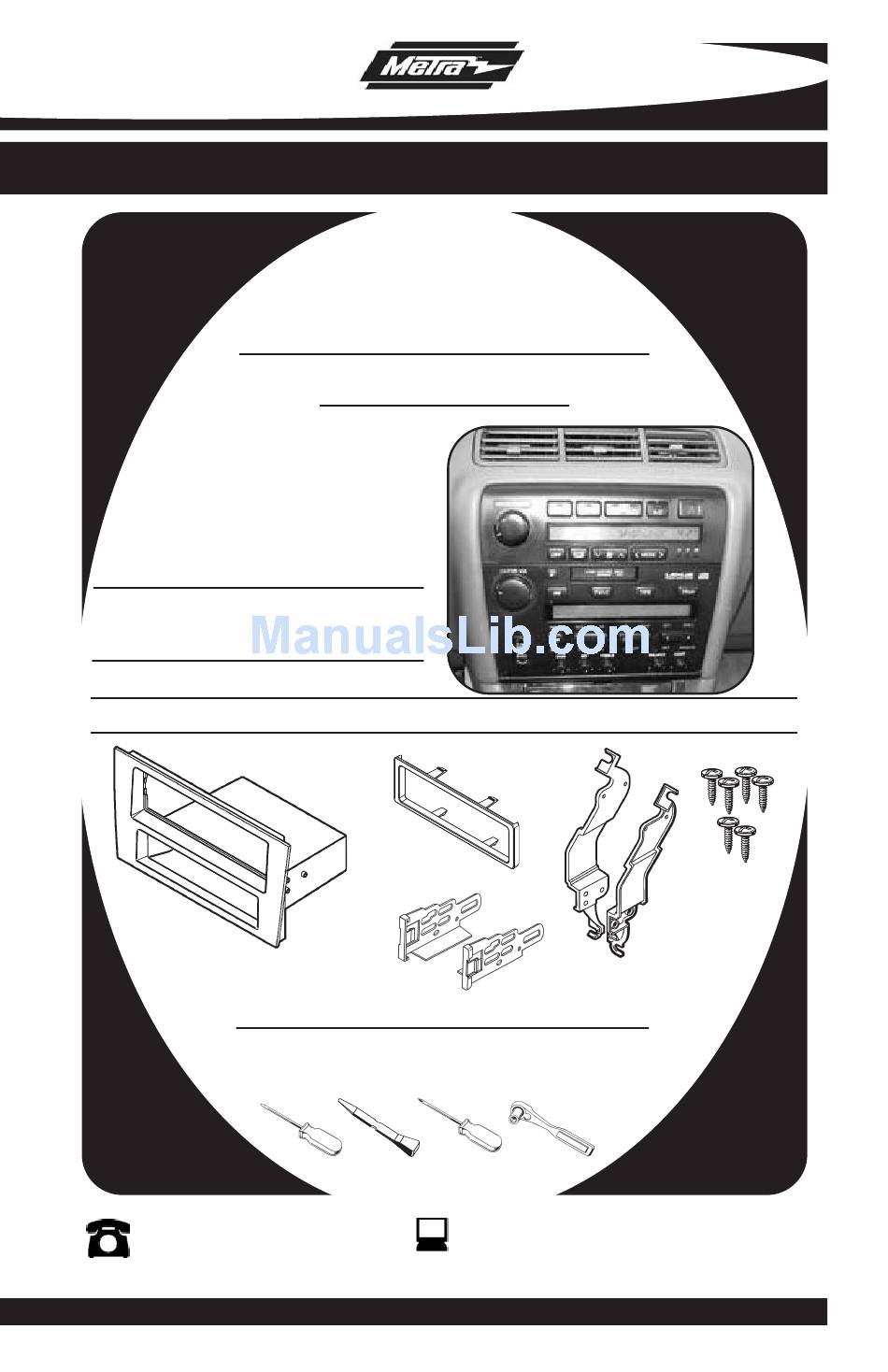

INSTALLATION INSTRUCTIONS FOR PART 99-8150
LEXUS ES SERIES
99-8150
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS

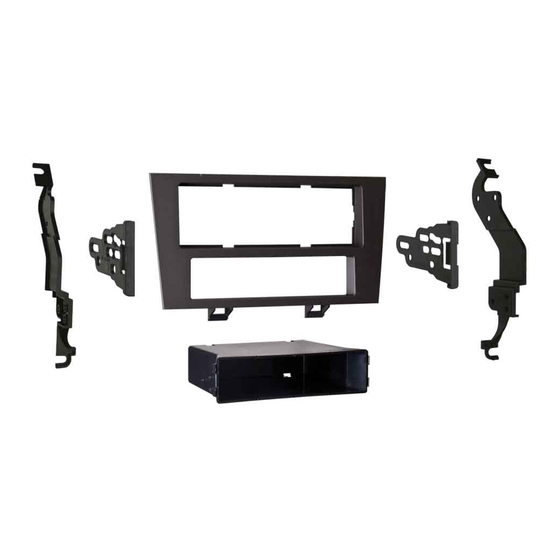

A) Radio Housing • B) Trim Plate • C) Mounting Brackets • D) ISO Brackets • E) (6) Phillips Screws
A
1-800-221-0932
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION
APPLICATIONS
1992-1996
B
D
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
C
www.metraonline.com
E
Advertisement
Related Manuals for Metra Electronics LEXUS 99-8150
Summary of Contents for Metra Electronics LEXUS 99-8150
- Page 1 A) Radio Housing • B) Trim Plate • C) Mounting Brackets • D) ISO Brackets • E) (6) Phillips Screws Small Flat Blade Screwdriver/ Panel Removal Tool • Phillips Screwdriver • Socket Set 1-800-221-0932 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION APPLICATIONS TOOLS REQUIRED: www.metraonline.com...
-
Page 2: Table Of Contents
T ABLE OF CONTENTS Dash Disassembly - Lexus ES Series 1992-1996 ......1 Kit Preparation . -
Page 3: Lexus Es Series 1992-1996
LEXUS ES SERIES 1992-1996 isconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the plastic trim piece below the factory radio and remove (2) Phillips screws exposed underneath. (Figure A) Using a small flat blade screwdriver release the clips securing the a/c vent assembly and remove the assembly. -
Page 4: Kit Preparation
LEXUS ES SERIES 1992-1996 DIN MOUNT RADIO PROVISION WITH POCKET ISO MOUNT RADIO PROVISON WITH POCKET Install the mounting brackets to the radio housing with (6) Phillips Screws supplied. (Figure A) Continue to kit assembly. 99-8150 KIT PREPARATION Install the factory climate controls into the assembled radio housing and bracket assembly using the screws from disassembly. - Page 5 LEXUS ES SERIES 1992-1996 DIN MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the radio housing and secure by bending the metal locking tabs outward (Figure A) Slide the aftermarket radio into the cage until it snaps into place.
- Page 6 LEXUS ES SERIES 1992-1996 ISO MOUNT RADIO PROVISON WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO brackets to the radio using the screws supplied with the radio. (Figure A) Slide the radio into the radio housing until the ISO brackets snap into place.
-
Page 7: Final Assembly
FINAL ASSEMBL Y Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) Re-connect the negative battery terminal and test the unit for proper operation. - Page 8 99-8150 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 07/28/10 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST99-8150...
