Coemar Infinity Wash XL Instruction Manual

Hide thumbs Also See for Infinity Wash XL:
Table of Contents

Advertisement

Quick Links

Download this manual
manuale di istruzioni
instructions manual
Version 1.0

Advertisement

Table of Contents
loading

Related Manuals for Coemar Infinity Wash XL

Summary of Contents for Coemar Infinity Wash XL

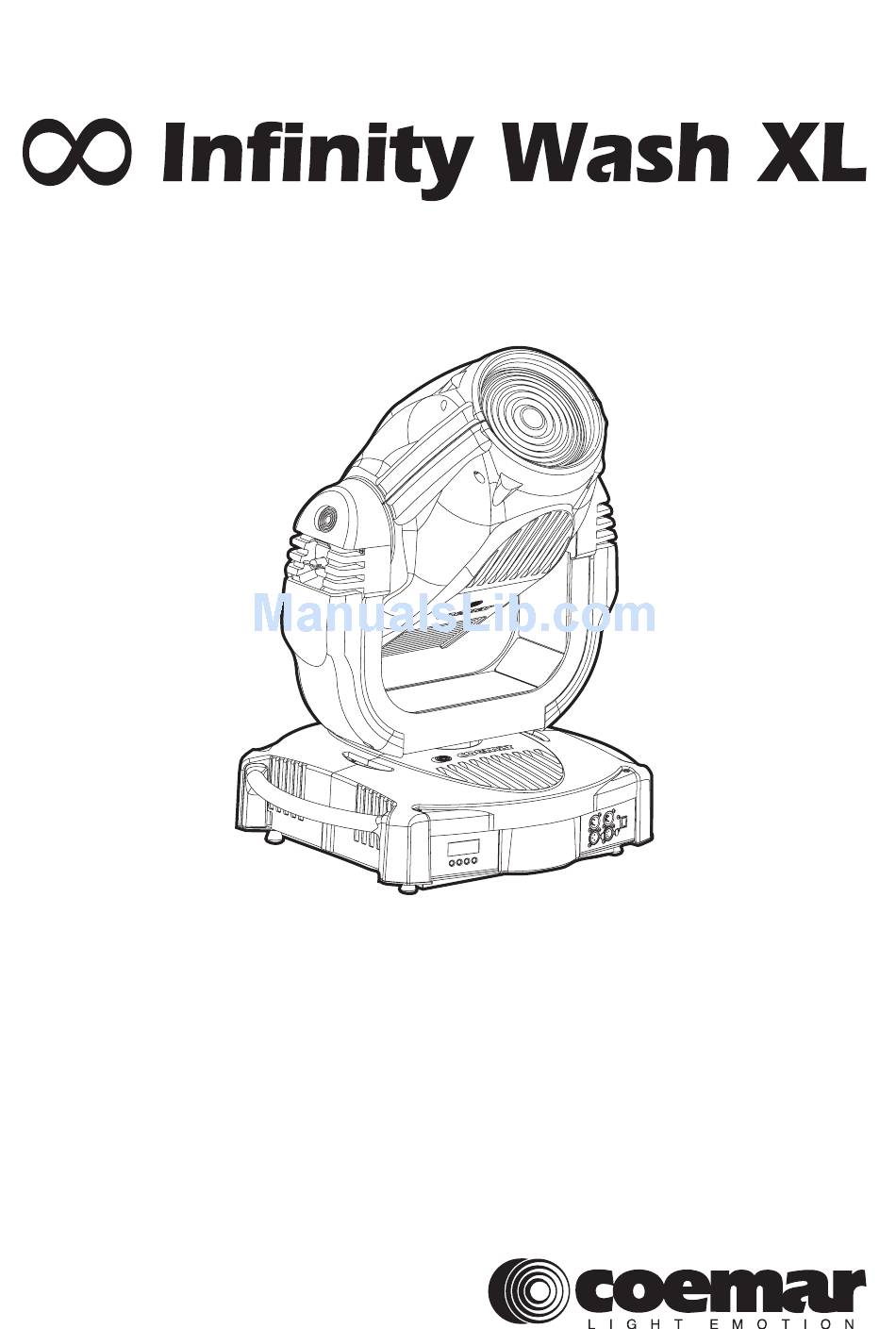

  • Page 1 manuale di istruzioni instructions manual Version 1.0...
  • Page 3 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Infinity Wash XL : This information will assist us in answering any technical enquiries with the utmost speed and accuracy.

  • Page 5: Table Of Contents

    English Index 1. Packaging and transportation Pag. 6 1.1. Packaging “ 1.2. Transportation “ 2. General information Pag. 6 2.1. Important safety information “ 2.2. Warranty conditions “ 2.3. CE norms “ 3. Product specifications Pag. 7 3.1. Technical characteristics “...

  • Page 6: Packaging

    2.1. Important safety information Fire prevention: 1. Infinity Wash XL utilises a Philips MSR GOLD 1200 SA/SE FastFit; the use of any alternative lamp is not recommended and will null and void the fixture’ s warranty. 2. Never locate the fixture on any flammable surface.

  • Page 7: Warranty Conditions

    3. The warranty is immediately void if the projector has been operated or dismantled by unauthorised personnel. 4. The warranty does not extend to fixture replacement. 5. The serial number of the projector is required for any advice or service fro your authorised Coemar service centre. 2.3. CE norms The projector meets or exceeds all applicable CE requirements.

  • Page 8: Mechanical Installation

    For ceiling mounted installations, Coemar includes two cam-lock (A) support brackets. The two cam-lock brackets may be mounted in 3 different positions (B, C and D) on the base of the Infinity Wash XL. The cam-lock brackets are affixed via a 1/4 nut. Please ensure that they are correctly seated and firmly tightened into position.

  • Page 9: Operating Voltage And Frequency

    5.1. Operating voltage and frequency The projector may operate at voltages of 200, 208, 230 or 240VAC at a frequency of 50 or 60Hz. Coemar presets (barring specific requests) a voltage of 230v at a frequency of 50Hz.. The preset voltage is indicated on the base of the projector.

  • Page 10: Mains Connection

    • Prior to powering up the projector, ensure that the model in your possession correctly mathces the mains supply avai- lable to you. • A good earth connection is essential for the correct operation of the Infinity Wash XL. Never connect the projector to main power if the green/yellow earth cable is not correctly connected...
  • Page 11 Control signal is digital and is transmitted via two pair screened ø0.5mm cable as per international standards for the transmission of DMX512 data. Connection is serial, utilising XLR3 and XLR5, male and female sockets located on the base of the Infinity Wash XL, labe- led DMX 512 IN and OUT (see diagram).

  • Page 12: Dmx Addressing

    The display and will show in sequnece the software version installed in the 3 onboard microprocessors - the display and the two “A” “B” master For example, upon turning on power, the Infinity Wash XL may show: D1.02 “D” (display pcb software version) A1.03...

  • Page 13: Dmx Functions

    English 7.2. DMX functions function type of control effect decimal percentage channel X axis, base movement proportional proportional coarse control of the base motor movement - 255 0% - 100% (pan) coarse X axis, base movement proportional proportional fine control of the base motor movement - 255 0% - 100% (pan) fine...
  • Page 14 English function type of control effect decimal percentage channel no colour, white beam 0% - color 1 - 14 2% - color 2 15 - 22 6% - step color 3 23 - 30 9% - 12% selecting colors from the color color 4 31 - 38 12% - 15%...

  • Page 15: Quick Guide To Menu Navigation

    English 8. Display panel functions The display panel of the Infinity Wash XL shows all the functions available; it is possible to change some of those parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the device so that it may not respond to a DMX 512 controller being used to control it.

  • Page 16: Measure And Test (Meas)

    The internal microprocessor of the Infinity Wash XL allows for several diagnostic and output parameters to be displayed. You may record, in this menu, determine the position in which the projector will come to rest when turned on with no dmx signal attached.

  • Page 17: Function Settings (Func)

    8.4. Rapid scrolling Via the Infinity Wash XL display it is possible to rapidly scroll through the various numbers displayed in the menu in the following manner: 1. Pressing the + or - buttons will cause the number to scroll more quickly.

  • Page 18: Connecting The Dr1

    8.6. Turning on the projector with no articulated movement This function may be useful should you need to power up the Infinity Wash XL whilst it is in its flight case or to re-address it or alter any parameters and you wish to in the absence of any articulated movement.

  • Page 19: Lamp Installation

    9. Lamp installation and alignment The Infinity WashXL utilises the Philips MSR GOLD 1200 SA/SE FastFit with PGJ50 base lamps. The use power is 1400W. These lamps are available via your Coemar distributor or service centre. Lamp Philips MSR GOLD 1200 SA/SE FastFit...

  • Page 20: Aligning The Lamp In The Optical Path

    English 4. Insert the lamp and rotate clockwise. The lamp used is manufactured from quartz glass and should be handled with care; always adhere to the instructions supplied in the lamp’ s packaging. Never touch the glass directly, use the tissue provided in the lamp’ s packaging. DO NOT USE UNDUE FORCE. 5.
  • Page 21 English 10. Removing the colour changer assembly By removing the casing, complete access is available to the internals of the projector. ATTENTION!! Disconnet the unit from mains power prior to attempting lamp installation or replacement Make sure the projector is sufficiently cooled. 1.

  • Page 22: Periodic Cleaning

    English 11. Maintenance Whilst every possible precaution has been taken to ensure the trouble-free operation of your Infinity Wash XL, the following periodic maintenance is highly recommended. ATTENTION!! Always remove mains power and ensure the unit is sufficiently cooled prior to opening up the housing.

  • Page 23: Electronic Motor Alignment

    This procedure should only be undertaken by qualified and experienced technical personnel. The display panel of the Infinity Wash XL allows for the electronic alignment of the projector’ s motors in the optical system. This pro- cedure is performed by Coemar at the factory. It may be useful to perform this procedure in the case of internal components being repla- ced.

  • Page 24: Error Messages

    The initial parameter settings are incorrect or corrupt; the projector has reloaded its factory default settings. Turn the projector off and on again. Should the error reoccur, refer the unit to your authorised Coemar service cen- tre to have the EEPROM check and possibly replaced.

  • Page 25: Frequently Asked Questions

    english 14. Frequently asked questions Question Possible cause Possible solution The projector is completely Projector not powered up. Check that the mains power cable is connected immobile. to power. The circuit breaker is switched off Set the circuit breaker to ON. The protection fuse is blown Disconnect the projector and replace the fuse.
  • Page 26 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
