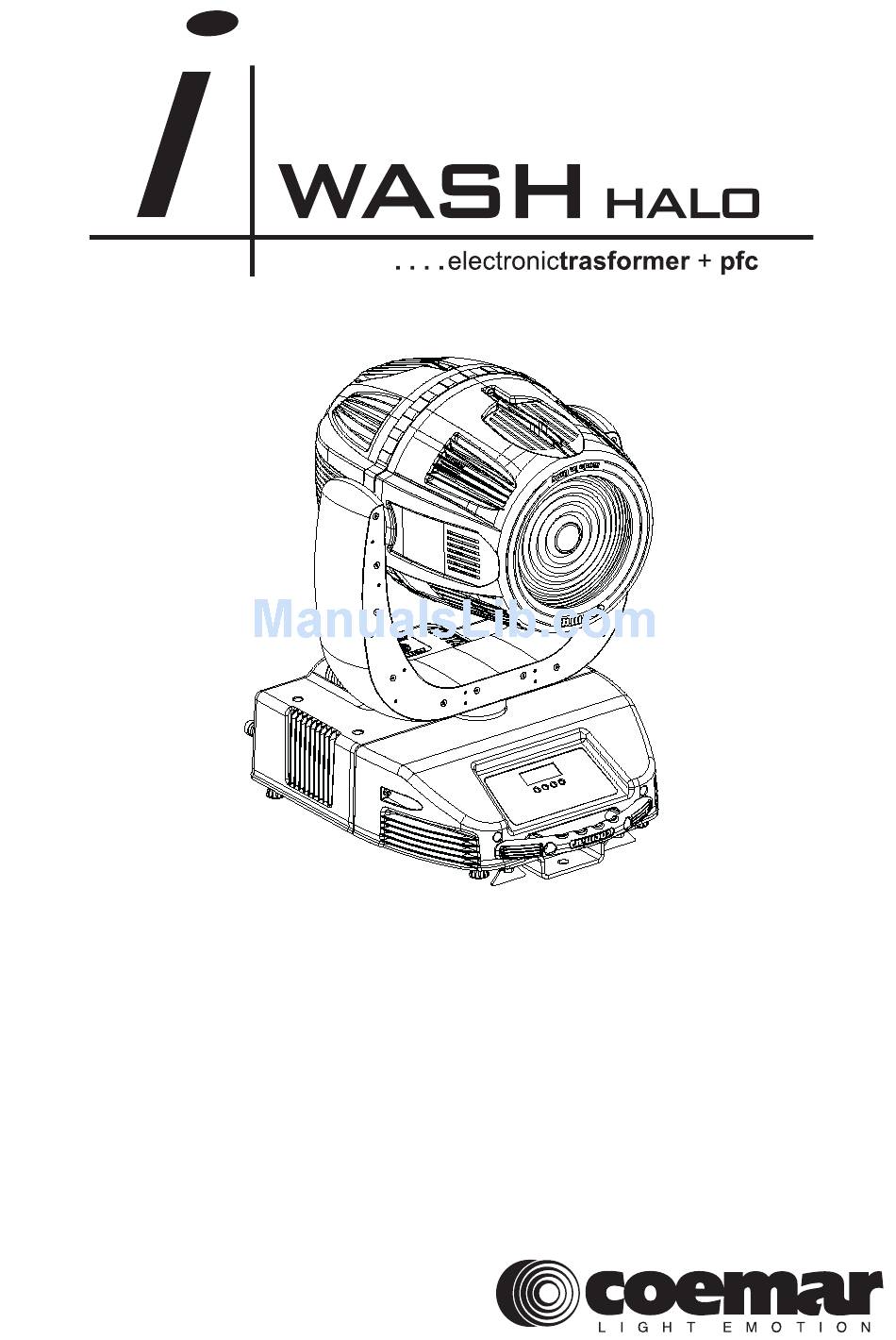

- Page 1 manuale di istruzioni instructions manual Version 1.0...
- Page 2 WASH halo numero di serie/serial number data di acquisto/date of purchase fornitore/retailer indirizzo/address cap/città/suburb provincia/capital city stato/state tel./fax/ Prendete nota, nello spazio apposito, dei dati relativi al modello e al rivenditore del vostro iWash Halo: ci per- metteranno di assistervi con la massima rapidità e precisione.
-
Page 3: Table Of Contents
English Index 1. Packaging and transportation Pag. 4 1.1. Packaging “ 1.2. Transportation “ 2. General information Pag. 4 2.1. Important safety information “ 2.2. Warranty conditions “ 2.3. CE norms “ 3. Product specifications Pag. 5 3.1. Technical characteristics “... -
Page 4: Packaging
English Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in compo- nentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expe- dite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). -
Page 5: Warranty Conditions
3. The warranty is immediately void if the projector has been operated or dismantled by unauthorised personnel. 4. The warranty does not extend to fixture replacement. 5. The serial number of the projector is required for any advice or service fro your authorised Coemar service centre. 2.3. CE norms The projector meets or exceeds all applicable CE requirements. -
Page 6: Mechanical Installation
“D” located on the base of the fixture and to the structure itself. If using an after-market safety chain not manufactured by Coemar, ensure that it is of sufficient rating to hold the weight of the unit. -
Page 7: Operating Voltage And Frequency
5.1. Operating voltage and frequency The projector may operate at voltages of 115, 208, 230 or 240VAC at a frequency of 50 or 60Hz. Coemar presets (barring specific requests) a voltage of 230v at a frequency of 50Hz.. The preset voltage is indicated on the base of the projector. -
Page 8: Mains Connection
331,IEC 332 3C,CEI 20 35. NB: In case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3x1.5 ø external 10 mm, rated 300/500V, tested to 2KV, operating temperature -40° +180°, Coemar cod. CV5309). Connecting to mains power For connection purposes, ensure your plug is of a suitable rating to sustain the maximum current: •115V... -
Page 9: Dmx Signal Connection
English 6. DMX signal connection Control signal is digital and is transmitted via two pair screened ø0.5mm cable as per international standards for the transmission of DMX512 data. Connection is serial, utilising XLR3 and XLR5, male and female sockets located on the base of the iWash Halo, labeled DMX 512 IN and OUT (see diagram). -
Page 10: Dmx Addressing
English 7. Turning on the projector After having followed the preceding steps, turn on the projector via the main Power switch. The display and will show in sequence the software version installed in the 2 onboard microprocessors: “D” “M” the display and the master For example, upon turning on power, the iWash Halo may show: D1.30... -
Page 11: Dmx Functions
English 7.2. DMX functions channel function type of control effect decimal percentage X axis, base movement control of the pan movement of the beam of light via proportional 0 - 255 0% - 100% (pan) proportional rotation of the base motor X axis, fine base movement fine control of the pan movement of the beam of light via proportional... -
Page 12: Quick Guide To Menu Navigation
Changing the preset settings made by Coemar can vary the functions of the device so that it may not respond to a DMX 512 controller being used to control it. Carefully follow the instructions before applying any variations or selections. -
Page 13: Measure And Test (Meas)
English 8.2. Measure and test (MEAS) The internal microprocessor of the iWash Halo allows for several diagnostic and output parameters to be displayed. You may record, in this menu, determine the position in which the projector will come to rest when turned on with no dmx signal attached. -
Page 14: Function Settings (Func)
English 8.3. Function settings (FUNC) The projector allows the altering of several functions and for selecting personalised settings. AOO1 menu FUNC enter P D I R +o– enter pan movement inversion + o– enter Clockwise To reverse horizontal movement direction of the beam C C W on DMX level variation. -
Page 15: Use Of Rj45 Connector
English The method for setting an identification number is shown below. AOO1 menu FUNC enter 1 - - 2 5 0 + o – enter + o – ID number setting enter numeric value To set the unit’s ID number from 0(no ID, to 250). For further information, consult the DR1 instruction manual. -
Page 16: Lamp Installation
Halo uses (Tungsten eXtreme Output) halogen lamp, high quality, compact and incredibly performing: a result of the co-operation between Coemar and Philips. The lamp is available at Coemar; its characteristics are listed in the following chart. Lamp Philips TXO 750W 100V... -
Page 17: Aligning The Lamp In The Optical Path
English 4. Insert the lamp The lamp used is manufactured from quartz glass and should be handled with care; always adhere to the instructions supplied in the lamp’ s packaging. Never touch the glass directly, use the tissue provided in the lamp’ s packaging. The GX 9,5 lampbase is symmetrical in construction. - Page 18 English 10. Opening up the projector By removing the casing, complete access is available to the internals of the projector. ATTENTION!! Disconnet the unit from mains power prior to attempting lamp installation or replacement Make sure the projector is sufficiently cooled. 1.
-
Page 19: Periodic Cleaning
Periodically check all mechanical devices for wear and tear; gears, guides, belts, etc., replacing them if necessary. Periodically check the lubrication of all components, particularly the parts subject to high temperatures. If necessary, lubricate with suitable lubricant, available from your Coemar distributor. Electrical components Check all electrical components for correct earthing and proper attachment of all connectors, refastening if necessary. -
Page 20: Electronic Motor Alignment
The display panel of the iWash Halo allows for the electronic alignment of the projector’ s motors in the optical system. This procedure is performed by Coemar at the factory. It may be useful to perform this procedure in the case of internal components being replaced. -
Page 21: Error Messages
The initial parameter settings are incorrect or corrupt; the projector has reloaded its factory default settings. Turn the projector off and on again. Should the error reoccur, refer the unit to your authorised Coemar service cen- tre to have the EEPROM check and possibly replaced. -
Page 22: Frequently Asked Questions
English 15. Frequently asked questions Question Possible cause Possible solution The projector is completely Projector not powered up. Check that the mains power cable is connected immobile. to power. The circuit breaker is switched off. Set the circuit breaker to ON. The protection fuse is blown. - Page 23 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
