Coemar Infinity ACL M Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Infinity ACL M
instruction manual
manuale di istruzioni
Version 1.0
DIS127

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity ACL M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar Infinity ACL M

Summary of Contents for Coemar Infinity ACL M

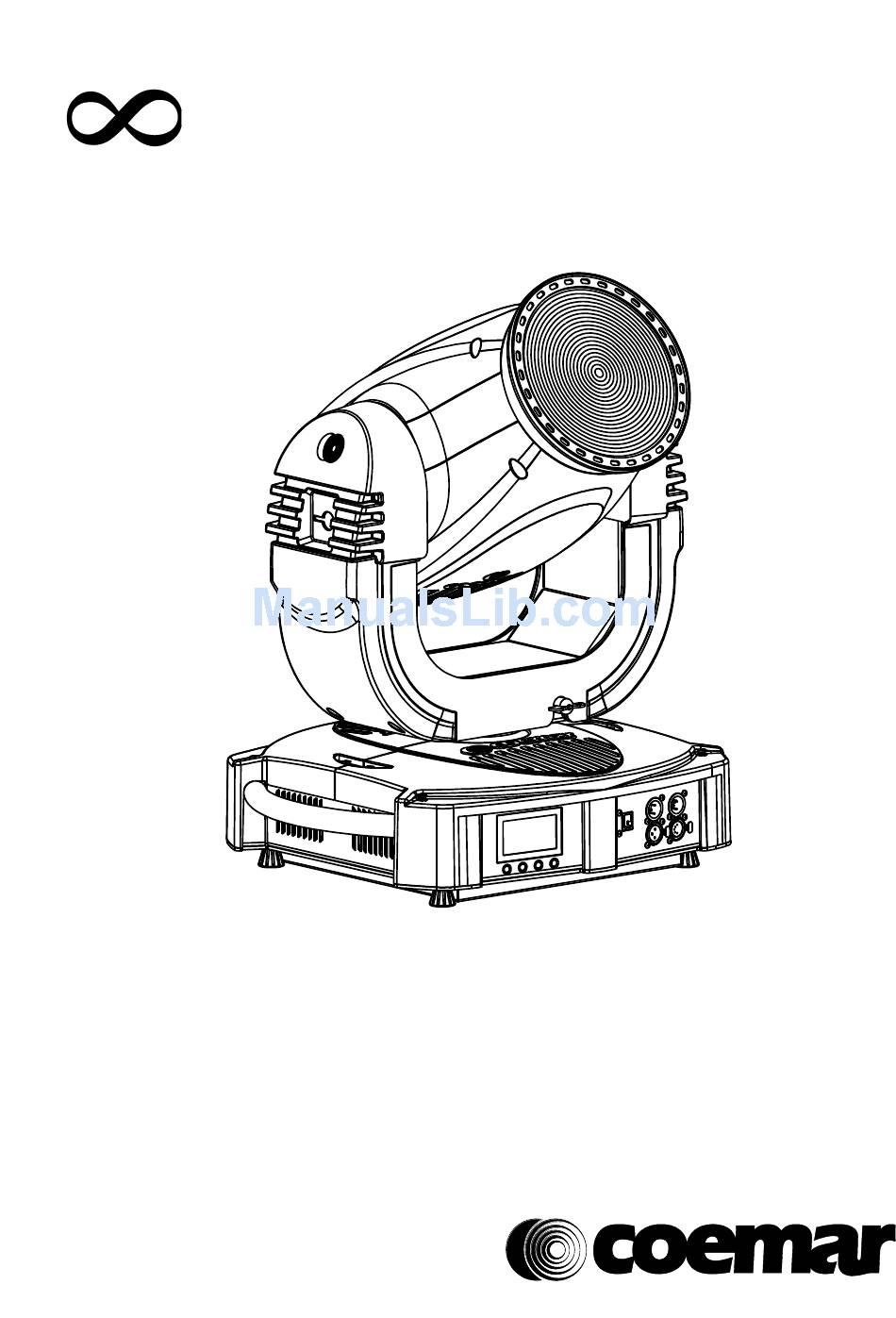

  • Page 1 Infinity ACL M instruction manual manuale di istruzioni Version 1.0 DIS127...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Infinity ACL M: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    English Index 1.Packaging and transportation ............................ 6 1.1 Packaging................................6 1.2 Trasportation ................................6 2. General information ..............................6 2.1 Important safety information............................ 6 2.2 Warranty conditions ..............................7 2.3 EC Norms ................................7 3. Product specifications ..............................7 3.1 Technical characteristics ............................7 3.2 Dimensions................................

  • Page 4: Packaging And Transportation

    Fire prevention: 1.Infinity ACL M utilizes a Philips MSR 700 Gold Mini Fast Fit or a Philips MSR Gold 575 MiniFast Fit lamp, the use of any alternative lamp might be risky and will make the warranty of the fixture null and void.

  • Page 5: Warranty Conditions

    English Protection rating against penetration by external agents: The fixture is classified as an ordinary apparatus; its protection grade against penetration by external agents, solid or liquid, is IP20. 2.2 Warranty conditions 1. The fixture is guaranteed for a period of 12 months from the date of purchase against manufacturing or materials defects. 2.

  • Page 6: Projector Components

    4.1 Mechanical installation Infinity ACL M may be either floor or ceiling mounted. It may also be installed on a structure. The unit is provided with four rubber feet mounted on its base, allowing it to be placed on a flat surface. For installations on a reticular structure, Coemar provides a set of Cam-lock support brackets, which are included in the packaging.

  • Page 7: Safety Connection

    4.2 Safety connection If the Infinity ACL M is fixed to a structure, the use of a safety chain is recommended in order to meet the current relevant safety standards. The safety chain must pass through the holes “A” and then fixed to the structure itself.

  • Page 8: Control Signal Connections

    • Infinity ACL M cannot be powered through Dimmer power units. • A good earth connection is necessary for the correct operation of the Infinity ACL M . Never connect the projector to main power if the green/yellow earth cable provided is not correctly connected.

  • Page 9: Turning On The Projector

    1 to 20 from your DMX 512 controller. A second unit must be addressed as A021, a third as A042 and so on. The operation must be carried out every Infinity ACL M which has an address different from A001.

  • Page 10: Dmx Functions

    English 7.2 DMX functions Note: the default setting is 16 bit/24 channels channel type of function effect decimal percentage control 16 bit 8 bit X axis, base movement proportional proportional coarse control of the base motor movement 0 - 255 0% - 100% (pan) coarse X axis, base movement...
  • Page 11 Note 7: turning off the lamp and all reset functions are delayed by 6 seconds to prevent accidental activation Note 8: the lamp on/off function can only be effected if an opposite level is set Infinity ACL M Table name: DMX 512 functions...

  • Page 12: Display Panel Functions

    English 8. Display panel functions By suitably using all the functions of Infinity ACL M, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 13: Main Functions

    English 8.3 Main functions The projector gives the opportunity to change and customize some functional settings. MAIN FUNCTIONS See diagram in It allows the complete management of the horizontal and vertical PAN/TILT at next page movements.. -Standard It allows to choose an alternative colour insertion curve. CMY SETTING -Special -Tungsten...
  • Page 14 English The following diagram explains the sub menu for the management of pan and tilt, regarding the pan/tilt menu item described in the diagram at previous page. It inverts the horizontal beam direction, from -Clockwise left to right or vice-versa by the same DMX PAN DIRECTION PAN/TILT -Counterclockwise...

  • Page 15: Measures

    T1max, T2max: Max temperatures (resettable) detected by the ballast. NStsk: lamp’s strike attempts with countdown. 8.5 Display setup The display setup allows tot une the Infinity ACL M functions according to your needs. The following diagram shows the section features. DISPLAY SETUP It allows 180°...

  • Page 16: Demo Mode

    The display panel of Infinity ACL M allows the electronic motor alignment of the projector motors in the optical system; this procedure is performed by Coemar at the factory during the testing: in order to obtain particular effects or in the case of internal components being replaced (motors, electronic boards, sensors, etc.) it may be necessary to change this setting.
  • Page 17 English WARNING! This mode is activable only by pressing for about 10 seconds SPECIAL MODE both ENTER and MENU keys after the reset has been launched. The DMX signal must be present. Pan movement alignment. MOTOR ADJUSTMENT Tilt movement alignment. TILT Dimmer alignment.

  • Page 18: Lamp Installation And Alignment

    9. Lamp installation and alignment Infinity ACL M utilizes a Philips MSR GOLD 700/2 Mini Fast Fit with PGJX28 base lamp.at maximum power of 700 W or a Philips MSR GOLD 575/2 Mini Fast Fit with adequate ballast setting.(menù MAIN FUNCTIONS/BALLAST SETTINGS). These lamps are available as a spare part at your Coemar’s distributor or service centre.

  • Page 19: Aligning The Lamp In The Optical Path

    English WARNING ! Each time you replace the lamp, we recommend the following operations. • realign the lamp in the optical system in order to avoid dichroic filters overheating and consequent effects. • reset the lamp odometer to obtain reliable information about the residual life of the lamp. 9.2 Aligning the lamp in the optical path Aligning the lamp in the optical system is achieved via the 3 adjusters at the rear of the projector.

  • Page 20: How To Extract The Gobos And Colour Changer Assembly

    Fino a 27 Fino a 26,8 Fino a 26,8 Diametro totale mm. In case of replacing of metal gobos, we strongly recommend to use special gobos provided by Coemar. In any case gobo’s thickness must never be below 0.5 mm.

  • Page 21: How To Replace Gobos

    English 10.4 How to replace gobos 1. Lift and gently extract from the gobo wheel the support which contains the gobo you are going to replace. 2. Remove the spring that fixes the gobo to the support. 3. Remove the old gobo. 4.

  • Page 22: Standard Color Wheel Configuration

    English 10.5 Standard color wheel configuration 40mm. CODE POS. ROSCO STANDARD N° VT357 026 Bright red VT351 022 Dark Amber FC050 441 Full CT straw VT359 UV405 VT353 079 Just blue 10.6 How to replace filters 1. Facing the front side of the wheel, push up the filter to replace inserting your finger through the plate hole, then remove the filter.

  • Page 23: Maintenance

    WARNING! Infinity ACL M is provided with a special Fresnel lens which is very fragile; in order to guarantee it’s maximum working efficiency for a long lasting time we recommend to never touch with bare hands or other tools that can scratch it, avoid to hurt it or make pressure on it.

  • Page 24: Error Messages

    English 13. Error messages If you have to check a malfunction, Infinity ACL M has an auto diagnostic system that visualizes in the lower part of the display one or more intermittent messages, preceded by “ERR”. The following table will help you to understand these messages correctly. If the problem persists despite carrying out the suggested procedure, contact your Coemar Customer Service Centre.

  • Page 25: Frequently Asked Questions

    English 14. Frequently asked questions Question Possible cause Suggested solution The projector is completely still. -Projector not powered up: Check that the mains power cable is The circuit breaker is switched off. connected to power. The protection fuse is blown. Set the circuit breaker to ON.
  • Page 26 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
