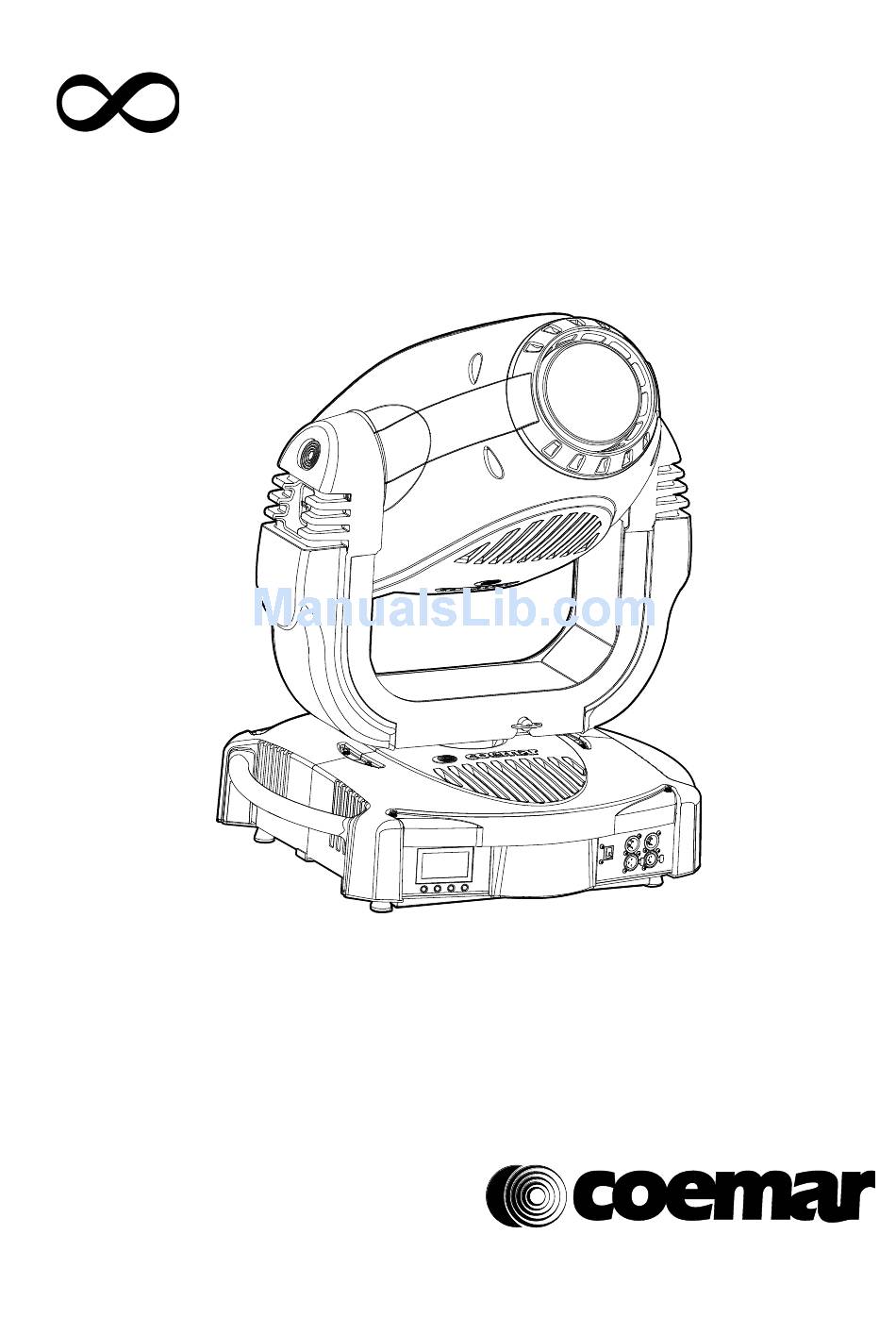

  • Page 1 Infinity Spot XL instruction manual manuale di istruzioni Version 1.1 DIS123...
  • Page 2 Prendete nota , nello spazio apposito, dei dati relative al modello e al rivenditore del vostro Infinity Spot XL: questi dati ci permetteranno di assistervi con la massima rapidità e precisione.
  • Page 3: Table Of Contents

    English Index 1. Packaging and transportation........................6 1.1 Packaging..............................6 1.2Transportation..............................6 2. General information………………………………………………………………………………………………...….6 2.1 Important safety information…………………………………………………………………………………..…...6 2.2 Warranty conditions............................7 2.3 UE norms..............................7 3. Product specifications………………………………………………………………………………………...……….7 3.1 Technical characteristics…………………………………………………………………………………….…..….7 3.2 Dimensions..............................7 3.3 Components..............................8 4. Installation.................................8 4.1 Mechanical installation ..........................8 4.2 Safety connection............................9 5.
  • Page 4: Packaging And Transportation

    2. General Information Fire prevention: 1.Infinity Spot XL utilises a Philips MSR GOLD 1500 FastFit; the use of any alternative lamp might be risky and will make the warranty of the fixture null and void. 2. Never locate the fixture on any flammable surface.
  • Page 6: Components

    4.1 Mechanical installation Infinity Spot XL may be either floor or ceiling mounted. It may also be installed on a structure. The unit is provided with four rubber feet mounted on its base, allowing it to be placed on a flat surface. For installations on a reticular structure, Coemar provides two cam-lock support brackets, which are included in the packaging.
  • Page 7: Safety Connection

    4.2 Safety connection If the Infinity Spot XL is fixed to a structure, the use of a safety chain is recommended in order to meet the current relevant safety standards. The safety chain must pass through the holes “A” and then fixed to the structure itself.
  • Page 8: Control Signal Connection

    • Infinity Spot XL cannot be powered through Dimmer power units. • A good earth connection is necessary for the correct operation of the Infinity Spot XL. Never connect the projector to main power if the green/yellow earth cable provided is not correctly connected.
  • Page 9: Turning On The Projector

    Infinity Spot XL leaves the factory ready to be connected to an ArtNet network without any further settings. Just connect the projector by means of the specific RJ45 connector located on the side of the DMX connectors and the relative patch to a common HUB Ethernet which will be connected to an ArtNet controller.
  • Page 10: Dmx Addressing

    7.1 DMX address of the projector NB: The following section is valid only in the case where Infinity Spot XL is controlled by the signal DMX 512. Each projector utilises 31 address channels (16 bit) for its complete operation and is controlled by a DMX 512 signal (for further information, see section 7.2, DMX functions).
  • Page 11: Dmx Functions Table

    English 7.2 DMX functions...
  • Page 12 English...
  • Page 13 English...
  • Page 14: Display Panel Functions

    English 8. Display panel functions By suitably using all the functions of Infinity Spot XL which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...
  • Page 15: Main Functions

    English 8.3 Main functions The projector gives the opportunity to change and customize some functional settings. MAIN FUNCTIONS Allows the complete management of the horizontal and vertical movements. see diagram in the following PAN/TILT page. CMY .CTO Allows to choose an alternative movement curve for colors and CTO. -STANDARD SETTING -SPECIAL...
  • Page 16 English The following diagram explains the sub menu for the management of pan and tilt, which the pan/tilt menu item described in the diagram in the previous page refers to. PAN/TILT -CLOCKWISE PAN/TILT PAN DIRECTION -COUNTERCLOCKWISE CMY.CTO Inverts the horizontal moving beam direction from left to right and viceversa at a similar variation of the DMX level.
  • Page 17: Measures

    VERSION 8.5 Display setup The Display setup allows to tune functioning of the Infinity Spot XL display functions according to your needs. The following diagram shows the section features. DISPLAY SETUP DISPLAY Allows to rotate of 180 the display graphics in case of reverse installation.
  • Page 18: Demo Mode

    The display panel of Infinity Spot XL allows the electronic motor alignment of the projector motors in the optical system; this procedure is performed by Coemar at the factory during the testing: in order to obtain particular effects or in the case of internal components being replaced (motors, electronic boards, sensors, etc.) it may be necessary to change this setting.
  • Page 19 English SPECIAL MODE MOTORS Panoramic movement alignment.. ADJUSTMENT TILT Vertical movement alignment. DIMMER LEFT Left Dimmer alignment DIMMER RIGHT Right Dimmer alignment SHUTTER Shutter alignment IRIS Iris mechanism alignment. FRONT LENS Front lens alignment ZOOM Zoom lens alignment. FOCUS Focus lens alignment GOBO WHEEL 1 Gobo 1 wheel alignment GOBO WHEEL 2...
  • Page 20: Lamp Installation And Alignment

    9. Lamp installation and alignment Infinity Spot XL utilises a Philips MSR Gold Fast Fit l with PGJ50 base lamp. The maximum power is 1500W. This lamp is available as a spare part at your Coemar’s distributor or service centre.
  • Page 21: Lamp Alignment In The Optical System

    English WARNING ! Each time you replace the lamp, we recommend the following operations. • realign the lamp in the optical system in order to avoid dichroic filters overheating and consequent effects. • reset the lamp odometer to obtain reliable information about the residual life of the lamp. 9.2 Aligning the lamp in the optical system.
  • Page 22: How To Extract The Gobos Assembly

    English 10.2 How to extract the gobos assembly. 1. Unscrew the two lateral fixing screws “B” and gently remove the gobos assembly. 10.3 Standard configuration of gobos wheel and colour wheel. Gobos wheel 1...
  • Page 23 English Gobos wheel 2 Color wheel...
  • Page 24: How To Replace The Gobos

    English 10.4 How to replace gobos 1. Lift and gently extract from the gobo wheel the support which contains the gobo you want to replace. 2. Remove the spring that fixes the gobo to its seat. 3.Remove the gobo to be replaced. 4.
  • Page 25: How To Extract The Effect Assembly

    English 10.5 How to remove the effect assembly Completely unscrew the blocking handle “C” of the “D” connector and remove it; unscrew the two lateral screws “E” fixing the effect assembly; if necessary manually move the internal lens forward and gently remove the effect assembly. When repositioning the assembly, make sure to insert it correctly into the specific lateral guides.
  • Page 26: How To Extract The Colour Changer Assembly

    English 10.7 How to remove the colour changer assembly. Unscrew the four lateral locking screws “G” of the assembly and remove it carefully. When repositioning the assembly, make sure to insert it correctly into the specific lateral guides. 11. Maintenance 11.1 Periodic cleaning Lenses and filters Even a fine layer of dust can substantially reduce the luminous output and alter the compactness of the beam.
  • Page 27: Error Messages

    English 12. Error Messages For cases of malfunctioning, Infinity Spot XL has an auto-diagnostics system that visualises one or more intermittent messages, preceded by “ERR”, in the lower part of the display. The following table will help you understand these messages correctly. If the problem persists despite carrying out the suggested operations, contact your Coemar Customer Service Centre.
  • Page 28: Frequently Asked Questions

    English EEPROM Error. The EEprom is either absent or defective; please refer to your Coemar service centre for a checking or replacing the component ERR: FLASH DATA Error: The initial parameter setting has failed, the projector has loaded its factory default setting. Turn the projector off and on again.
  • Page 29 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
