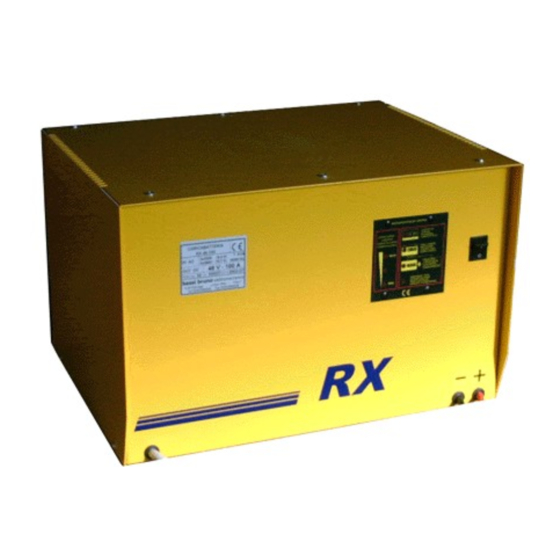

Page 1: Battery Charger

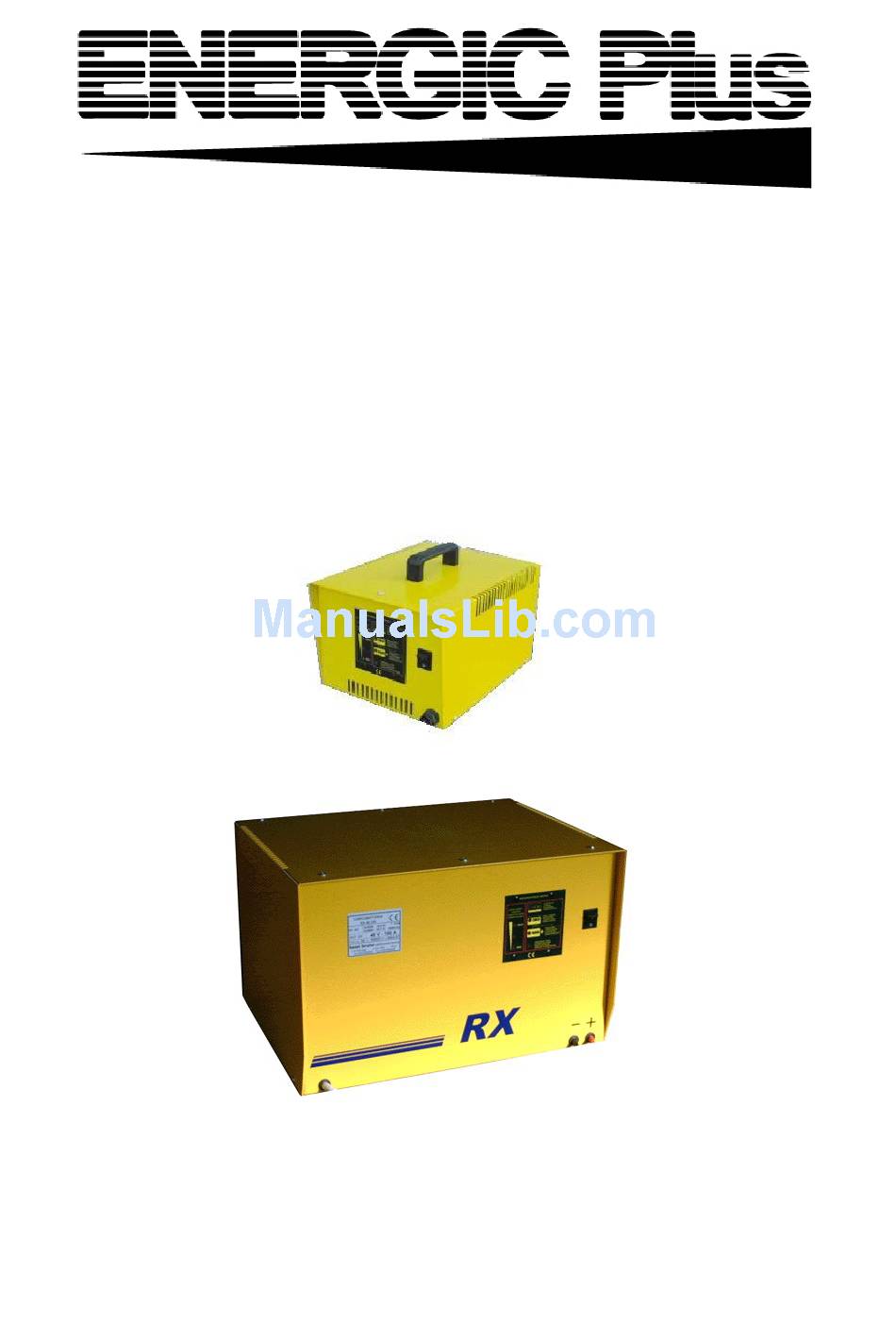

BATTERY CHARGER BATTERY CHARGER USER'S MANUAL USER'S MANUAL... - Page 2 (THIS PAGE WAS INTENTIONALLY LEFT BLANK)
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents · GENERAL....................4 · 1. Introduction....................... 4 · 2. Safety instructions and warnings..............5 · RX SINGLEPHASE..................7 · 3. Description......................7 · 4. Installation......................8 · 5. Operation......................11 · RX THREEPHASE..................14 ·... -
Page 4: General
RESPONSIBILITY DISCLAIMER The manufacturer of the Energic plus RX battery charger will not be responsible for damages and/or injuries caused by the charger in these situations: The charger is not installed properly by a qualified electrician;... -
Page 5: Safety Instructions And Warnings
Battery Charger RX User's Manual Safety instructions and warnings GENERAL Battery chargers can cause injury or death, or damage to other equipment or property, if the user does not strictly observe all safety rules and take precautionary actions. Safe practices must be learned through study and training before using this equipment. - Page 6 Battery Charger RX User's Manual BURN AND BODILY INJURY PREVENTION The battery produces very high currents when short circuited, and will burn the skin severely if in contact with any metal conductor that is carrying this current. Do not permit rings on fingers to come in contact with battery terminals or the cell connectors on top of the battery.
-
Page 7: Rx Singlephase
User's Manual RX SINGLEPHASE Description Energic plus RX battery chargers have been designed to charge Pb batteries. These units can convert the AC input voltage to a DC voltage at the correct level, in order to charge the battery cells. -
Page 8: Installation Of The Charger
Battery Charger RX User's Manual 4. Installation of the charger Conditions of use: Operating temperature: 5°C to 45°C • Storage temperature: -20°C to 60°C • Relative humidity: less than 75% • CAUTION The charger can be installed by qualified personnel only. - Page 9 Battery Charger RX User's Manual INTERNAL VIEW OF THE CHARGER NOTE Check the efficiency of earth circuitry (yellow/green cable); Connect the charger to the mains using an adeguate plug, with pushbutton and fuses; Use an adeguate plug to connect the charger to the battery.
- Page 10 Battery Charger RX User's Manual ELECTRICAL INSTALLATION OF THE CHARGER Check the efficiency of earth circuitry (yellow/green wire); • Connect the charger to the mains using an adeguate plugs, with pushbutton and fuses; • Use an adeguate plug to connect the charger to the battery;...
-
Page 11: Operation
Battery Charger RX User's Manual Operation PRELIMINARY CONTROLS Inspect the charger completey for loose screws, electrical connections or other damages; • Check that all the ventilation slots are not obstructed to assure proper air flow; • Make sure that the charger is installed as instructed in this manual and in accordance with •... - Page 12 WARNING ! ENERGIC Plus RX chargers are programmed to do a complete cycle of charge, however it’s recommended to survey the operations when the battery must remain connected to the charger for more than 12 hours (example: week-ends)
- Page 13 The EQUALIZATION function, performed by ENERGIC Plus RX chargers, has been developed to keep all the cells of the battery at the same level, even after years of continuous work.
-
Page 14: Rx Threephase
User's Manual RX THREEPHASE Description Energic plus RX battery chargers have been designed to charge Pb batteries. These units can convert the AC input voltage to a DC voltage at the correct level, in order to charge the battery cells. -
Page 15: Installation
Battery Charger RX User's Manual 7. Installation Conditions of use: Operating temperature: 5°C to 45°C • Storage temperature: -20°C to 60°C • Relative humidity: less than 75% • CAUTION The charger can be installed by qualified personnel only. NOTE This unit operates on threephase AC input, 380 Vac, 50Hz. - Page 16 Battery Charger RX User's Manual INTERNAL VIEW OF THE CHARGER NOTE Check the efficiency of earth circuitry (yellow/green cable); Connect the charger to the mains using an adeguate plug, with pushbutton and fuses; Use an adeguate plug to connect the charger to the battery.
- Page 17 Battery Charger RX User's Manual ELECTRICAL INSTALLATION OF THE CHARGER Check the efficiency of earth circuitry (yellow/green wire); • Connect the charger to the mains using an adeguate plugs, with pushbutton and fuses; • Use an adeguate plug to connect the charger to the battery.
-
Page 18: Operation
Battery Charger RX User's Manual 8. Operation PRELIMINARY CONTROLS Inspect the charger completey for loose screws, electrical connections or other damages; • Check that all the ventilation slots are not obstructed to assure proper air flow; • Make sure that the charger is installed as instructed in this manual and in accordance with •... - Page 19 1 second. This control is useful to be sure that the electronic control is working correctly. Energic Plus RX chargers are programmed to do a complete cycle of charge, however it’s recommended to survey the operations when the battery must remain connected to the charger...
- Page 20 During extra charge cycles the LEDs “ FINAL CHARGE” and “STOP-100%” flash alternately. NOTE The operations described in this chapter are done by ENERGIC Plus RX chargers automatically. END OF CHARGE When the battery is completely charged the charger is turned off and the LED “STOP – 100%”...
-
Page 21: Trouble Shooting Guide
Battery Charger RX User's Manual TROUBLE SHOOTING GUIDE SYMPTOM POSSIBLE CAUSES ACTION 1 Battery not connected properly. Check battery connectors/harness. Charger does not Charger has been connected to Disconnect forkift motor and react to battery forklift motor connector. connect battery. - Page 22 Battery Charger RX User's Manual Page 22 of 25 OWM-040906-RX Version: 02-AB...
- Page 23 Battery Charger RX User's Manual Page 23 of 25 OWM-040906-RX Version: 02-AB...
-
Page 24: Spare Parts List
COMMON PARTS – SINGLEPHASE CABINET S POSITION CODE DESCRIPTION 0203340 Base RE box S 0203341 Cover RE box S 0203129T Printcard external plate RX RLCBSRE-06-01 Printcard support (x4) 0201321 Main switch 0-1 0201829 Cable strain relief 0201828 Cable strain relief... - Page 25 Battery Charger RX User's Manual COMMON PARTS – THREEPHASE POSITION CODE DESCRIPTION 0203370 Base RE box B 0203374 Cover RE box B 0203125 Printcard external plate RE RLCBSRE-06-01 Printcard support (x4) 203141 Pushbutton 0-1 0203999 Varistor 275V 100001 Output fuse holder...
