Summary of Contents for Energic Plus 124TA1705

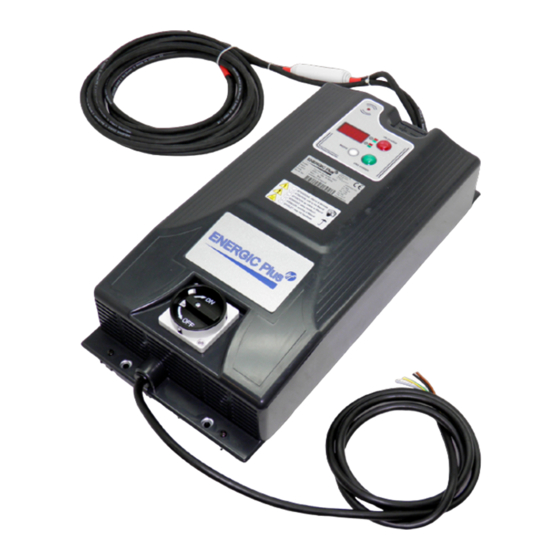

- Page 1 Original operating manual OPERATING MANUAL MULTIVOLTAGE CHARGER 124TA1705 IN CHARGE OF YOUR BATTERIES 07/2021 – V01 – from s/n … www.energicplus.com...
- Page 2 © 07-2021. Energic Plus is a trademark of TVH Parts Holding NV, Brabantstraat 15, B-8790 Waregem. All rights reserved. No part of this publication may be reproduced or communicated in any form or by any means, electronic or mechanical, including copying, recording or use in an information storage or retrieval system, without prior and explicit permission of TVH Parts Holding NV.
- Page 3 Bulgarian Можете да намерите това ръководство на Вашия език чрез линка, посочен по – долу. Czech Tento návod najdete ve svém jazyce prostřednictvím odkazu níže. Danish Du kan finde denne vejledning på dit sprog via nedenstående link. German Sie finden diese Bedienungsanleitung in Ihrer Sprache unter folgendem Link. Greek Μπορείτε...
- Page 4 Thank you for using our product. For your safety and to ensure a correct operation, we would like to bring to your attention some aspects of this manual: • This booklet supplies useful instructions for the correct operation and maintenance of the product. It is therefore necessary to pay the utmost attention to all of the paragraphs that illustrate the most simple and secure way to operate and use this product.
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................DESCRIPTION . -
Page 6: Introduction
INTRODUCTION This manual gives information about the commencement of operation, use and maintenance of your newly purchased multi-charger. Also included in this manual are a number of safety instructions to create a safe working environment. The multi-charger is used for charging lead-acid, AGM, gel and lithium-ion batteries. The charging current can be set between 0.1 A and 5.0 A, depending on the batteries connected and the number of cells and/or the capacity. -
Page 7: Description
DESCRIPTION 2.1. Technical data Always check the type plate for the correct information. Frequency (Hz) 50 ÷ 60 Inrush current (A) < 2.35 Absorbed minimum power (W) < 10 Absorbed maximum power (kW) Operating temperature (°C) From −20 to 50 Maximum relative humidity Switching frequency (kHz) 20 ±... -
Page 8: Main Components Of The Product
2.2. Main components of the product N° Component LED screen Control buttons Type plate Mounting materials Input cable Drill holes Ventilation ON/OFF switch Brand decal 10 Safety warnings 11 Output cable 2.3. Placement of the decals The safety and warning labels should be placed as described in the pictures below. If the decals are damaged or missing, replace them. -
Page 9: Safety Instructions
SAFETY INSTRUCTIONS 3.1. Explanation of the safety decals If the decals are damaged or missing, please replace them. Decal Explanation Reference High voltage 163TA4206 General warning Hot surface Read the manual before using the product Keep away from damp or wet places 3.2. - Page 10 Take a good look at the rating plate of both the charger and the battery. If in doubt, contact your dealer. Energic Plus is under no circumstances responsible if the charging curve selected was incorrect and caused irreversible damage to the battery or the multi-charger.
-
Page 11: Transport And Storage
TRANSPORT AND STORAGE Always wear safety shoes and gloves when working with the multi-charger or battery. 1. Transport You can find the weight of the charger in chapter 2.1. Technical data. Determine if it is too heavy for you to carry or not. If you can carry the charger yourself, carry it in an upright position, with the ventilation facing down. -
Page 12: Installation
INSTALLATION 5.1. Packing list Description Amount Reference Charger 124TA1705 Input cable 106TA9617 Output cable 166TA5463 Manual 166TA8760 5.2. Safety instructions • Always wear safety shoes and gloves when working with the multi-charger or battery. If you do come into contact with battery acid, follow the instructions in chapter 10.3. Attach the equipment to a stable surface using the appropriate holes on the mounting flanges. -
Page 13: Installation Of The Product
5.4. Installation of the product When mounting the charger, it is important that you attach the charger upright to the wall or to the vehicle. This means that the ventilation should be at the bottom of the unit. Bottom Ventilation Each charger has drill holes to attach it to the wall or to your Drilling holes vehicle. -
Page 14: Operation
Take a good look at the rating plate of both the charger and the battery. If in doubt, contact your dealer. • Energic Plus is under no circumstances responsible if the charging curve selected was incorrect and caused irreversible damage to the battery or the charger. -
Page 15: Operating Instructions
6.2. Operating instructions Please see chapter 7 for the daily maintenance schedule. If any of the following occurs while using the multi-charger, stop using it immediately by unplugging the power cord. • Smoke and/or fire • Burnt smell • Inflation of the housing of the multi-charger or battery 1. - Page 16 Phase Red LED Green LED ON CHARGE Phase 1 Phase 2 On with short flashing Phase 3 On with short flashing Phase 4 On with short flashing On with short flashing Phase 5 + Phase 6 On with short flashing END CHARGE End of charge When using the CG mode, the red LED is always on, while the green one is always off.
- Page 17 2. CG mode 1. After selecting the CG mode of operation, the rated voltage must be set: press ROLL to scroll through all options, then press ENTER to confirm and move on to the next selection. 2. For the current setting, press ROLL to increase the current value by 10 A increments, then press ENTER to confirm and move on to the next step, the unit.
-
Page 18: Maintenance
MAINTENANCE 7.1. Safety instructions for the repair of the product When carrying out maintenance on the battery or the multi-charger, it is strongly recommended to wear full body protection such as safety glasses, safety suit, safety shoes and safety gloves. If you do come into contact with battery acid, follow the instructions in chapter 10.3. - Page 19 1. General checkup of the machine and accessories A daily check of the multi-charger can limit wear to a minimum: • Be sure that the instruction manual is complete, legible and available for reference. • Check the entire machine for damage, corrosion or cracks in structural components before each use.
- Page 20 4. Check all ventilation slots for obstructions Make sure that the ventilation holes are not blocked by excessive dust, objects or other items that can’t dissipate the heat sufficiently. Do not use a high-pressure cleaner or a high- Bottom pressure air sprayer. This will damage the charger irreversibly.
-
Page 21: Troubleshooting
TROUBLESHOOTING When checking the multi-charger or battery, wear safety shoes and safety gloves. If you do come into contact with battery acid, follow the instructions in chapter 10.4. When an emergency situation occurs in which the charging has stopped, the display screen will show one of the following indications, depending on the malfunction detected: <A><Alarm code identified with a 2 digit code>... - Page 22 Alarm Problem Charge Cause Action code stop? Deep discharge This is a battery status message. The default charge starts anyway There's a deeply discharged battery Battery Temporary The battery is disconnected while Check that the charger is still disconnected charging correctly connected to the battery.
-
Page 23: Final Decommissioning And Disposal
FINAL DECOMMISSIONING AND DISPOSAL Final, proper decommissioning or disposal of the product must be performed in accordance with the regulations of the country in which the product is used. In particular, regulations governing the disposal of batteries, fuels and electronic and electrical systems must be observed. Waste packaging should be sorted and put into solid dustbins according to the materials and needs to be collected by the local special environment protection bureau. -
Page 24: Annexes
/ Laden der Batterie / Carga de la batería / Carica della batteria Merk / Marque / Brand / Marke / Marca ENERGIC PLUS Type / Typ / Tipo Modelnummer / N° de modèle / Model number / TVH/******* Modellnummer / Número de modelo / Numero di... - Page 25 o die Richtlinie 2014/30/EC ; 2014/35/EC; 2011/65/EU einschließlich nachfolgende Änderungen und Ergänzungen entspricht. EN – IEC 61000-6-4:2019; EN – IEC 61000-6-2:2016; EN – IEC 61000-4-2:2009; EN – IEC 61000-4- 3:2006+A2:2010;; EN – IEC 61000-4-5:2014; EN – IEC 61000-4-6:201 EN61010-1:2010+AMD 1:2016 o la Directiva 2014/30/EC ;...
-
Page 26: Spare Parts List
10.2. Spare parts list Description Reference Input extrafast fuse 500 V 20 A 166TA5400 Clips for 500 V input and output 166TA5403 Output extrafast fuse 240 V 180 A 166TA5416 Plastic rotory handle 166TA3171 Fuse 125 A 103TA2867 3-poles 32 A rotory switch 166TA3172 Connector kit 166TA8432... - Page 27 If the person is not breathing Start artificial breathing immediately such as mouth to mouth. If available, provide oxygen by means of an oxygen balloon. If pulse is absent Begin artificial circulation immediately. Start chest compressions; 30 chest compressions followed by 2 breaths.
- Page 28 Your distributor: Manufactured within the EU for: info@energicplus.com • www.energicplus.com TVH PARTS HOLDING NV • Brabantstraat 15 • 8790 Waregem • Belgium...
