  • Page 1: Operating Instructions

    User ManUal Operating Instructions TST-D Battery Chargers Users Manual 2013 www.energicplus.com...
  • Page 2: Table Of Contents

    INDEX SAFETY INSTRUCTIONS AND WARNINGS GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 SHOCK PREVENTION .
  • Page 3: Safety Instructions And Warnings

    SAFETY INSTRUCTIONS AND WARNINGS Before you start using your Energic Plus battery charger, please take the time to read these instructions carefully . The owner’s manual is an important part of the charger . It’s recommended to keep it in good condition for the lifetime of the charger .
  • Page 4: Burn And Bodily Injury Prevention

    BATTERY TERMINALS – Do not touch battery terminals while equipment is operating . SERVICE AND MAINTENANCE – Shut OFF all power at the disconnect switch or line breaker BEFORE inspecting, adjusting, or servicing the equipment . Lock switch OPEN (or remove line fuses) so that the power cannot be turned ON accidentally .
  • Page 5: Description Of The Charger

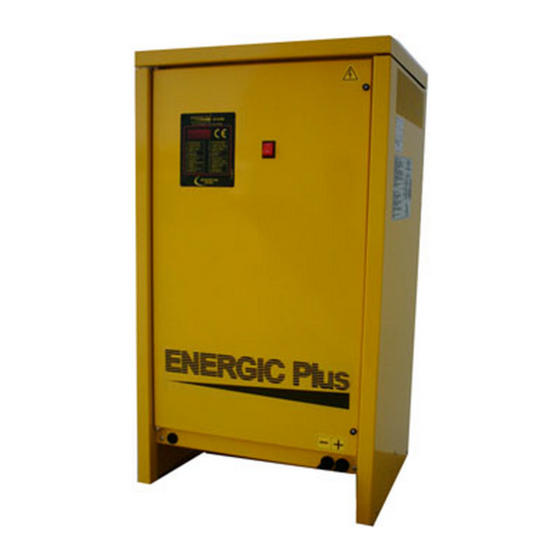

    DESCRIPTION OF THE CHARGER Energic Plus TST-D battery chargers have been designed to charge Pb batteries . These units convert the AC main supply in a DC output at the correct voltage, in order to charge the battery cells .
  • Page 6: Installation Of The Charger

    INSTALLATION OF THE CHARGER Conditions of use: • Operating temperature: 5°C to 45°C • Storage temperature: -20°C to 60°C • Relative humidity: less than 75% CAUTION! Risk of electrical shock! The charger must be installed by qualified personnel only. To prevent fire or shock hazard, do not expose the unit to rain or moisture. Don’t use the unit in presence of flammable gas, because it can generate sparks.
  • Page 7: Internal View Of The Charger, Cabinet A

    INTERNAL VIEW OF THE CHARGER – CABINET A CONTROL BOARD OUTPUT FUSE BOARD FOR INPUT VOLTAGE SELECTION CONTACTOR TERMINAL BLOCKS FOR AC INPUT CORD PLUGS FOR INPUT VOLTAGE ADJUSTMENT POWER TRANSFORMER NOTE The BOARD FOR INPUT VOLTAGE SELECTION is present only in chargers with 3x 208 / 240 / 480 Vac input, and is not NOT present in chargers with 3x600 Vac input.
  • Page 8: Internal View Of The Charger, Cabinet B

    INTERNAL VIEW OF THE CHARGER – CABINET B CONTROL BOARD CONTACTOR TERMINAL BLOCKS FOR AC INPUT CORD OUTPUT FUSE PLUGS FOR INPUT VOLTAGE ADJUSTMENT BOARD FOR INPUT VOLTAGE SELECTION POWER TRANSFORMER NOTE The BOARD FOR INPUT VOLTAGE SELECTION is present only in chargers with 3x 208 / 240 / 480 Vac input, and is NOT present in chargers with 3x600 Vac input.
  • Page 9: Ac Voltage Selection 3 X 240/480 V (Not For 600V Input Models)

    AC VOLTAGE SELECTION 3 x 208/240/480 V (not for 600V input models) The input voltage setting of the charger is made using two devices: 1) BOARD FOR INPUT VOLTAGE SELECTION (BVS) (two selectable ranges: 200-250V or 440-524V) 2) PLUGS FOR INPUT VOLTAGE ADJUSTMENT (five taps within the selected range, see next chapter) The BOARD FOR INPUT VOLTAGE SELECTION has three metal bars, to be connected in one of the two configurations represented...
  • Page 10: Grounding And Line Connection

    GROUNDING AND LINE CONNECTION CAUTION! Risk of electrical shock! The cabinet of the battery charger must be properly grounded to protect personnel against hazard of electrical shock in case of fault on the charger! The grounding conductor must have a current carrying capacity equal or higher than the current carrying capacity of the AC-input wires If the charger is to be connected to the AC power supply with a flexible jacketed cable, one having a sep- arate grounding conductor should be used .
  • Page 11: How To Use The Charger

    HOW TO USE THE CHARGER CAUTION! DON’T connect the battery to the charger if the digital display is ON. DON’T disconnect the battery from the charger while it is being charged. ARCING AND BURNING OF CONNECTORS OR BATTERY EXPLOSION MAY RESULT! PRELIMINARY CHECKS •...
  • Page 12: Battery Connection, Voltage Check And Autostart

    BATTERY CONNECTION, VOLTAGE CHECK AND AUTOSTART CAUTION ! ENERGIC Plus chargers are programmed to do a complete cycle of charge automatically, however it’s always recommended to survey the operations, especially when the battery is connected to the charger for more than 12 hours.
  • Page 13: Charge Process

    CHARGE PROCESS While the charge is in progress the following parameters are continuously displayed in sequence: • Battery voltage/cell (Output voltage) (Volt); • Charge current (Output current) (Ampere); • Capacity charged (Ah); • Effective time of charge (Hours); The letter after the value (U-A-C-h) indicates which parameter being is displayed .
  • Page 14: Automatic Data Saving

    If this error message appears, it’s recommended to call (for service) for a complete check of the system . The cause if this problem may be a wrong setting of the input voltage: if the input is set to a certain value (for example: 610 V) but the real voltage is lower (for example: 575 V), the charging current will be significantly lower than the nominal value, therefore it will take more time to reach the gassing voltage .
  • Page 15: Equalization

    NOTE After the charge termination, while the battery remains connected, the final values of [Voltage/cell], [Time] and [Capacity charged] remain stored in memory. If the red STOP pushbutton is pressed, the display will show these values in sequence. If the charge has been terminated manually, equalization and maintenance functions are automatically disabled.
  • Page 16: Maintenance

    MAINTENANCE The MAINTENANCE function is useful to keep the battery in perfect condition when it’s not used for an indefined time (weeks, months, . . .) . It is sufficient to leave the battery connected to the charger: the control board will keep the battery voltage under control and will activate the charger automatically when the voltage falls below a predefined minimum threshold .
  • Page 17: Trouble Shooting

    TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSES ACTION Charger does not Battery not connected properly . Check battery connectors/harness . react to battery be- Charger has been connected to Disconnect forkift motor and connect ing connected, and forklift motor connector . battery . display remains OFF .
