Energic Plus MVM User Manual

Multivoltage portable battery charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Battery charger MVM
USER'S MANUAL
___________________________________________________________________________________________________________________________________________________
M
MULTIVOLTAGE PORTABLE

BATTERY CHARGER

MVM
User's MANUAL
__________________________________________________________________________________________________________________________________________________
Code: MVM Version: 01-BF Date: OCT 2005
Page 1/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVM and is the answer not in the manual?

Questions and answers

Related Manuals for Energic Plus MVM

Summary of Contents for Energic Plus MVM

  • Page 1: Battery Charger

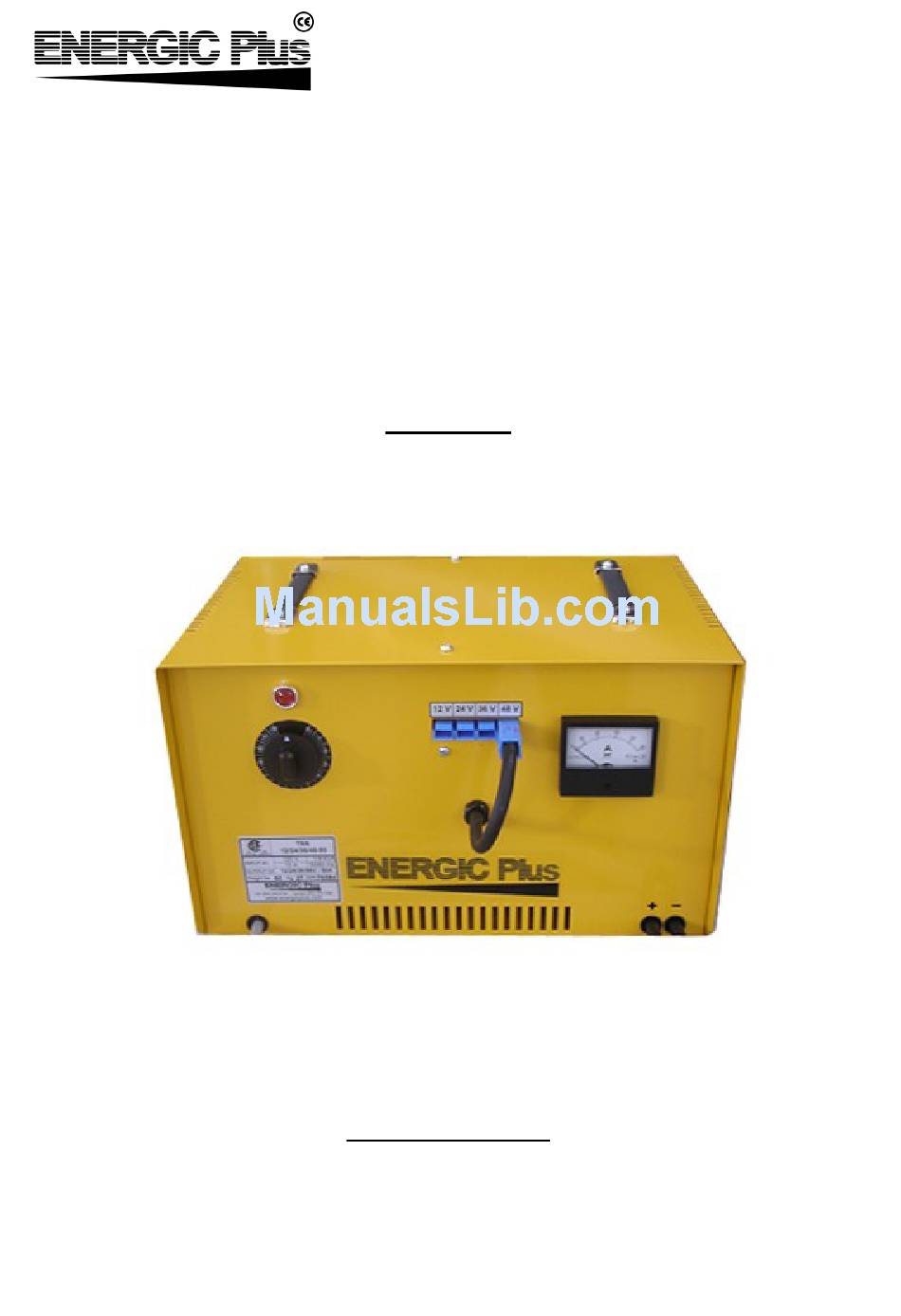

    Battery charger MVM USER'S MANUAL ___________________________________________________________________________________________________________________________________________________ MULTIVOLTAGE PORTABLE BATTERY CHARGER User's MANUAL __________________________________________________________________________________________________________________________________________________ Code: MVM Version: 01-BF Date: OCT 2005 Page 1/10...

  • Page 2: Responsibility Disclaimer

    USER'S MANUAL ___________________________________________________________________________________________________________________________________________________ 1. INTRODUCTION Before starting to use your Energic plus MVM battery charger, please take the time to read these instructions carefully. The owner’s manual is an important part of the charger. It’s recommended to keep it in good condition for the lifetime of the charger.

  • Page 3: Safety Instructions And Warnings

    USER'S MANUAL ___________________________________________________________________________________________________________________________________________________ SAFETY INSTRUCTIONS AND WARNINGS This manual includes instructions and suggestions for the users of Energic Plus MVM battery chargers. The code and the version of this manual are written on the bottom of each page. If you need more copies please specify Code and Version.
  • Page 4 In case of acid in the eyes, flush very well with clean water and obtain professional medical attention immediately. EQUIPMENT WARNING LABELS Inspect all precautionary labels on the equipment. Order and replace all labels that cannot be easily read. __________________________________________________________________________________________________________________________________________________ Code: MVM Version: 01-BF Date: OCT 2005 Page 4/10...

  • Page 5: Description Of The Charger

    ___________________________________________________________________________________________________________________________________________________ DESCRIPTION OF THE CHARGER The Energic Plus MVM battery chargers have been designed to charge Pb batteries. These units can convert the AC main supply in a DC output at the correct voltage, in order to charge the battery cells.

  • Page 6: Technical Data

    Inside the charger there are the following devices, not available to the user: • Power transformer; • Rectifier; • Termination for input cable connection; • TAPS for input voltage adjustment; • Output fuse. __________________________________________________________________________________________________________________________________________________ Code: MVM Version: 01-BF Date: OCT 2005 Page 6/10...

  • Page 7: Installation Of The Charger

    Check the efficiency of earth circuitry; • Connect the charger to the mains using an adequate plug, with switch and fuses; • Use an adequate plug to connect the charger to the battery; • __________________________________________________________________________________________________________________________________________________ Code: MVM Version: 01-BF Date: OCT 2005 Page 7/10...

  • Page 8: Main Supply Voltage Preset

    Disconnect the wire A from the original plug; • Connect the wire A to the correct position (220, 230, 240 or 250 Vac); • Close the cabinet; • Connect the charger to main supply. • POSITION VOLTAGE __________________________________________________________________________________________________________________________________________________ Code: MVM Version: 01-BF Date: OCT 2005 Page 8/10...

  • Page 9: How To Use The Charger

    Read immediately the output current on the ammeter, to make sure that it's not too high, otherwise the output fuse of the charger will blow. Attention: The operations described in this chapter are done by Energic Plus MVM chargers automatically.

  • Page 10: Technical Documents

    Battery charger MVM USER'S MANUAL ___________________________________________________________________________________________________________________________________________________ 6. TECHNICAL DOCUMENTS This manual includes the following technical documents: • ELECTRIC DIAGRAM __________________________________________________________________________________________________________________________________________________ Code: MVM Version: 01-BF Date: OCT 2005 Page 10/10...
