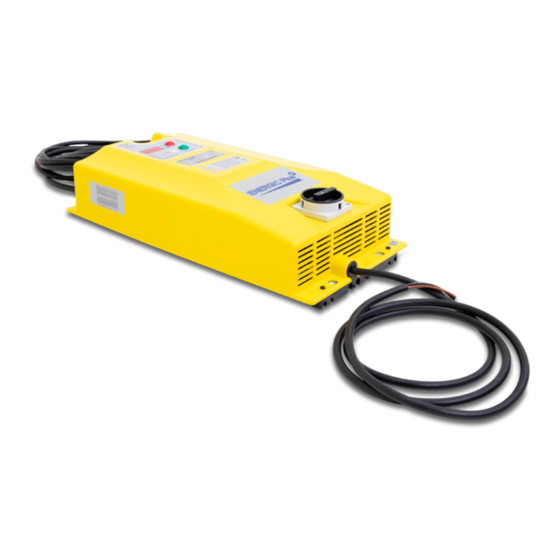

- Page 1 Original operating manual OPERATING MANUAL HIGH-FREQUENCY BATTERY CHARGER NG1 – NG3 – NG5 – NG7 – NG9 IN CHARGE OF YOUR BATTERIES 07/2021 – V01 – from s/n … www.energicplus.com...
- Page 2 © 07-2021. Energic Plus is a trademark of TVH Parts Holding NV, Brabantstraat 15, B-8790 Waregem. All rights reserved. No part of this publication may be reproduced or communicated in any form or by any means, electronic or mechanical, including copying, recording or use in an information storage or retrieval system, without prior and explicit permission of TVH Parts Holding NV.
- Page 3 Bulgarian Можете да намерите това ръководство на Вашия език чрез линка, посочен по – долу. Czech Tento návod najdete ve svém jazyce prostřednictvím odkazu níže. Danish Du kan finde denne vejledning på dit sprog via nedenstående link. German Sie finden diese Bedienungsanleitung in Ihrer Sprache unter folgendem Link. Greek Μπορείτε...
- Page 4 Thank you for using our product. For your safety and to ensure a correct operation, we would like to bring to your attention some aspects of this manual: • This booklet supplies useful instructions for the correct operation and maintenance of the product. It is therefore necessary to pay the utmost attention to all of the paragraphs that illustrate the most simple and secure way to operate and use this product.
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................DESCRIPTION . -
Page 6: Introduction
INTRODUCTION This manual gives information about the commencement of operation, use and maintenance of your newly purchased high frequency charger. Also included in this manual are a number of safety instructions to create a safe working environment. The high-frequency battery charger is an electronic device for professional use only, designed to charge different types of batteries, depending on the firmware installed. -
Page 7: Description
Lead-acid – Lead-acid – Lead-acid – AGM – gel – AGM – gel – AGM – gel – AGM – gel – AGM – gel – lithium-ion lithium-ion lithium-ion lithium-ion lithium-ion NG1 without air pump NG1 with air pump 7/36... - Page 8 NG3 without air pump NG3 without air pump NG5 without air pump NG5 with air pump 8/36...
- Page 9 NG7 without air pump NG7 with air pump NG9 without air pump NG9 with air pump 9/36...
-
Page 10: Main Components Of The Product
2.2. Main components of the product With air pump N° Component Sticker that indicates battery percentage Typeplate Decal with safety warnings Brand Drilling hole Output cable Indication table with the indicated amperes and charging time Ventilation Air pump 10 Plug Without air pump N°... -
Page 11: Type Plate
N° Decal Explanation Reference Indication table with the indicated amperes and 166TA4354 charging time Type plate 166TA5462 Brand 166TA4355 Indicates battery percentage 166TA4356 Safety warnings 163TA4206 2.4. Type plate N° Explanation Brand Model Input Output Unique code per product. Serial number Additional data of the charger CE marking Address... -
Page 12: Safety Instructions
SAFETY INSTRUCTIONS 3.1. Explanation of the safety decals If the decals are damaged or missing, please replace them. Decal Explanation Reference This is an electrical device 163TA4206 Be careful when working with electrical equipment This device emits heat Read the manual before using the product Keep the product away from rain or damp places... - Page 13 • The person responsible for the use of the product must make sure that all of the safety rules in force in the country of its use are applied, to guarantee that the equipment is used in conformity with the use for which it is destined and to avoid any dangerous situation for the user.
-
Page 14: Transport And Storage
TRANSPORT AND STORAGE Always wear safety shoes and gloves when working with the high frequency charger or battery. 1. Transport You can find the weight of the high frequency charger in chapter 2.1: Technical data. Determine if it is too heavy for you to carry or not. If you decide that the high frequency charger is too heavy to carry, you can transport it on a cart with wheels. -
Page 15: Assembly And Installation
ASSEMBLY AND INSTALLATION 5.1. Packing list Description Amount Reference High frequency charger Check your type plate for the correct reference Input cable 166TA3457 Output cable 166TA3458 Manual 166TA8759 5.2. Safety instructions • The high frequency charger must be installed by qualified personnel only. •... -
Page 16: Required Material For Assembling
5.3. Required material for assembling The following supplies are a suggestion and not an instructional obligation. • levelling scale • pencil or marker • 4 plugs (6 mm) • drilling machine • drill (6 mm) • 4 screws (5 mm) 5.4. -
Page 17: Operation
Take a good look at the rating plate of both the high frequency charger and the battery. If in doubt, contact your dealer. • Energic Plus is under no circumstances responsible if the charging curve selected was incorrect and caused irreversible damage to the battery or the high frequency charger. - Page 18 For N1–N3 1. Visualisation front high frequency charger 1. LED screen 2. Small LEDs indicating the value 3. LED light showing that the charger is charging 4. Small LEDs indicating the value 5. LED light showing that the charger has stopped ON CHARGE 6.
- Page 19 – CU4: user programmable curve – CU5: desulphurisation curve 6. Press ENTER: Confirmation of your charge curve. Now you can choose a capacity selection. 7. ROLL: make a capacity selection. The starting point for capacity selection is the nominal value, but you can choose a value between 50% and 140% of the nominal value in 10% increments.
- Page 20 4. Compensation setting of the voltage drop on the output cables. During charging, you can programme the voltage drop of the cables by pressing and holding the MODE button. Perform the following steps while the high frequency charger is at maximum current. 1.
- Page 21 Version of the pressure sensor In addition to the features of the standard version, an electronic circuit with an air pressure sensor is also available. At the beginning of the charging process, the sensor checks if the pressure in the circuit is included in a certain window between a minimum and a maximum value.
-
Page 22: Maintenance
MAINTENANCE 7.1. Safety instructions for the repair of the product The high frequency charger requires a minimum of maintenance. When carrying out maintenance on the battery or the high frequency charger, it is strongly recommended to wear full body protection such as safety glasses, safety suit, safety shoes and safety gloves. - Page 23 3. Check all the ventilation slots for obstructions Remove all dust and dirt if necessary. Dust and/or dirt prevents the high frequency charger from ventilating optimally. Make sure that the ventilation slots are open and not obstructed by objects. This maintenance may be carried out by the operator. 23/36...
-
Page 24: Troubleshooting
TROUBLESHOOTING When checking the high frequency charger or battery, wear safety shoes and safety gloves. If you do come into contact with battery acid, follow the instructions in chapter 11.5. When an alarm situation occurs that causes the operation to be stopped, the display will show one of the following codes, depending on the malfunction detected. - Page 25 Alarm Problem Charge Cause Action code stop? Mismatch There are problems in the voltage Turn the high frequency charger off, voltage circuit wait 5 seconds and turn the high frequency charger back on. If the problem persists, contact your dealer. Timeout Temporary End of the first phase as a result of Check if the high frequency charger...
- Page 26 For N5–N7–N9 If you hear a two-tone audible alarm with a flashing LED, an alarm situation has occurred. Displayed Problem Cause Action colour LED Red Flash There is a problem The battery is disconnected or Verify the connection with the battery does not conform with the high If the connection is correct, check frequency charger...
-
Page 27: Temporarily Out Of Order
TEMPORARILY OUT OF ORDER If the high frequency charger will not be operated for more than 14 days straight, take the following points into account: • Pull out the plug. • Place a light cloth over the high frequency charger. Do this only when the plug is out of the socket. •... -
Page 28: Final Decommissioning And Disposal
FINAL DECOMMISSIONING AND DISPOSAL Final, proper decommissioning or disposal of the product must be performed in accordance with the regulations of the country in which the product is used. In particular, regulations governing the disposal of batteries, fuels and electronic and electrical systems must be observed. Waste packaging should be sorted and put into solid dustbins according to the materials and needs to be collected by the local special environment protection bureau. -
Page 29: Annexes
/ Caricare le batterie la batteria Merk / Marque / Brand / Marke / Marca ENERGIC PLUS Merk / Marque / Brand / Marke / Marca ENERGIC PLUS Type / Typ / Tipo Type / Typ / Tipo NG * Modelnummer / N°... - Page 30 Charging batteries / Laden von Batterien / Carga de baterías / Caricare le batterie Merk / Marque / Brand / Marke / Marca ENERGIC PLUS Type / Typ / Tipo Modelnummer / N° de modèle / Model number / TVH/ ******** Modellnummer / Número de modelo / Numero di...
-
Page 31: Spare Parts Lists
INPUT FUSE 10 A 5x20 delayed 166TA5397 Fuse schurter plug 166TA5398 Output extra fast fuse 240 V 80 A (for 12 V NG1) 166TA5399 Output extra fast fuse 500 V 20 A (for 48 V NG1) 166TA5400 Output extra fast fuse 500 V 25 A (for 36 V NG1) -
Page 32: Medical And First-Aid Treatment
166TA3172 Plastic base plate for 32 A rotary switch 166TA5417 Display label NG5+ CAN bus 166TA5418 12 V fan NG5–7–9 80x80x25 166TA5419 Yellow cover Energic Plus NG5–7–9 display 166TA5420 NG7/9 input cable 166TA5421 NG5 input cable 166TA5422 11.3. Medical and first-aid treatment Working with batteries and/or chargers is always a risk. - Page 33 In case of swallowing Do not try to induce vomiting but drink fresh water immediately and ingest activated carbon tablets. Do not drink carbonated (such as cola, lemonade, etc) or flavoured drinks (such as tea, coffee, etc.). Always seek medical advice afterwards! 2.
- Page 34 NOTES ................................
- Page 35 NOTES ................................
- Page 36 Your distributor: Manufactured within the EU for: info@energicplus.com • www.energicplus.com TVH PARTS HOLDING NV • Brabantstraat 15 • 8790 Waregem • Belgium...
