Rose electronics UltraLink 2 Quick Start Manual

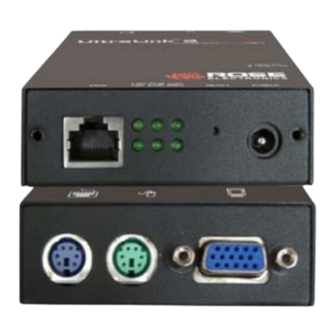

UltraLink 2
UL2-SA (Single Access)
Switch 1 - Power Option switch
Switch 2 - unit configuration switch
Located on the side of all models
(S1 and S2 Off for normal operation)
To configure the UL 2, the default IP address (192.168.1.42) must be changed to be compatible with
your network. There are two different ways to configure the UltraLink 2's network information, using the
USB ports or a network crossover cable. Following explains both methods.

1- Unit Configuration via USB ports

The configuration procedure using USB connections is shown below.
Computer Requirements
OS – XP or Vista
2 – USB 2.0 ports
1. Position Switch 2 on the UltraLink 2 to the ON position
2. Disconnect unit from the network if connected (computer and monitor should be ON)
3. Connect the PS/2 to USB adapters to the CPU adapter cable and to the computer's USB ports.
4. Connect the PS/2 connectors on the other end of the cable to the UltraLink 2's PS/2 connectors.
5. When the keyboard and mouse connectors are connected to the UltraLink 2, the computer
operating system will detect the UltraLink 2 unit as a removable drive.
6. Using Windows explorer, select the UL-2 removable drive and you should see a text file name
"Config.txt". Edit this text file using a text editor like Notepad and change the IP Address, IP
NetMask and IP Gateway to the IP address information assigned to the UltraLink 2 unit. Also the
Unit name, Use DHCP, and Reset Admin Password options can be selected here. Complete
instructions are included in the "Config.txt" file.
7. When changes are complete, save the file and close the text editor.

Quick Start Guide

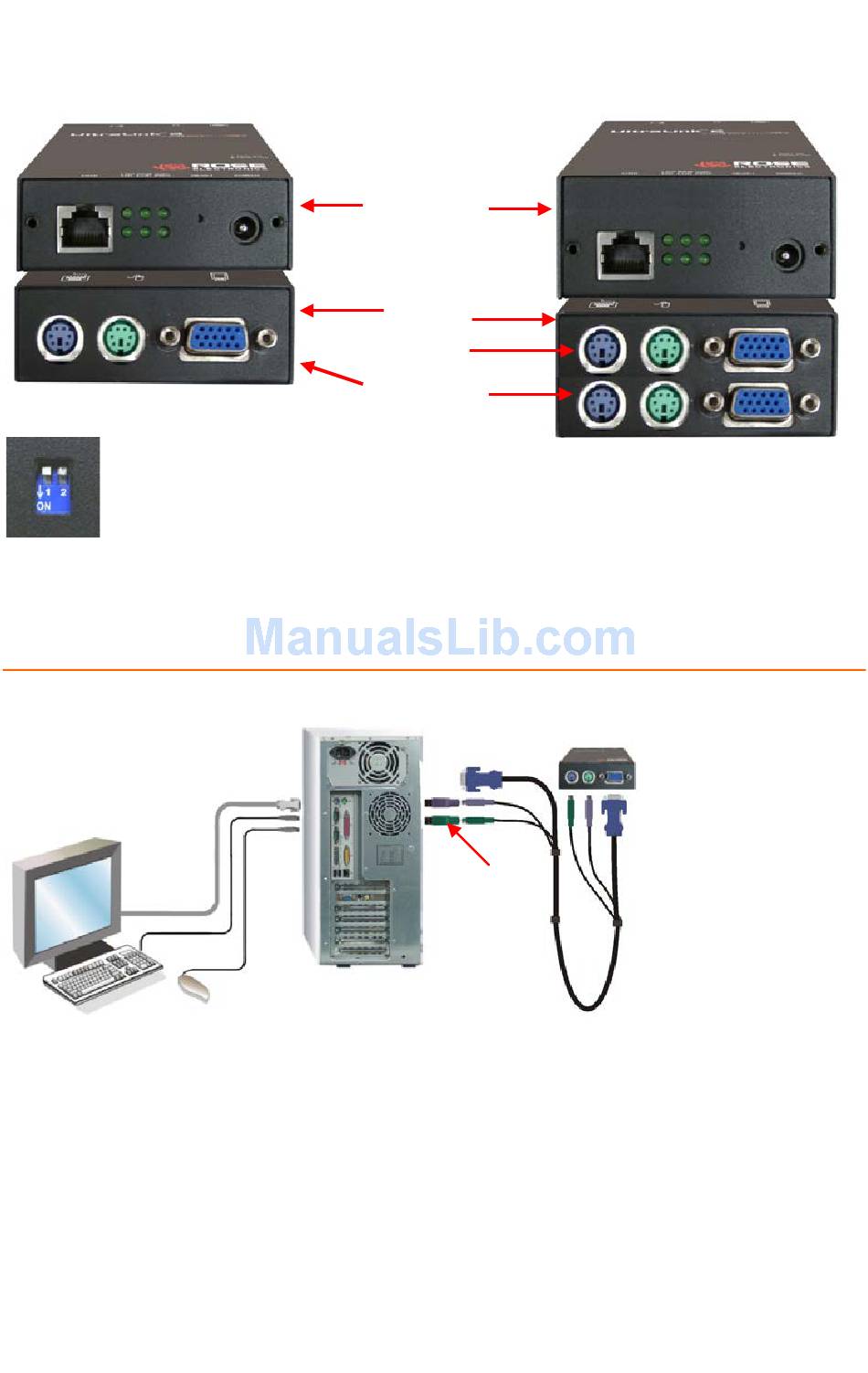

FRONT
REAR
To KVM
To Computer
PS/2 to USB
adapters
UL2-DA (Dual Access)
Dual access model
connect to lower
PS/2 ports
DO NOT
Connect the monitor
HD15 connectors
CPU Adapter
Cable
