- Page 1 VISTA KVM-SERIES INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
-
Page 2: Limited Warranty
LIMITED WARRANTY Rose Electronics warrants the Vista™ to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. -
Page 3: European Union Declaration Of Conformity
FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipme nt generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication. -
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer... 1 Introduction... 1 Product Registration ... 2 Features ... 2 Compatibility ... 3 System overview... 4 KVM station ... 4 CPU connections ... 4 Rose Electronics web site ... 5 Vista KVM-Series models... 6 Installation ... 9 Step 1 - Connecting the KVM station... -
Page 5: Disclaimer
The Vista switch is the result of Rose Electronics commitment to providing state-of-the-art switching solutions for today’s demanding work place. The Vista switch has proven to be a valuable investment for users that have a need to access multiple CPUs from a single KVM station. -
Page 6: Product Registration
Product Registration Take advantage of the following when you register your Rose Electronics products online at www.rose.com/htm/warranty.htm: § Rose Standard Warranty Plus... § Free Lifetime Firmware Updates § Free Lifetime Technical Support § 30 Day Money Back Guarantee § Priority “First-in-Line” Status for Tech Support Features §... -
Page 7: Compatibility
Compatibility Computers Industry standard PCs, Unix computers such as RS-6000, HP 9000, SGI, DEC Alpha, MAC and others Monitors SVGA Keyboards PC PS/2, AT, PC and Apple USB Mouse Standard PS/2 Mouse (2 or 3 button) PC and Apple USB Serial Mouse (2 or 3 button) Monitors SVGA... -
Page 8: System Overview
Figure 1 shows a typical configuration using the Vista 4 port switch with DB25 connectors. Up to 4 CPUs can be connected to the Vista 4 port switch and accessed from a single KVM station. -
Page 9: Rose Electronics Web Site
The optional power connector on the Vista switch is for a supplemental power adapter. Supplemental power may be needed if the cable length from the computers to the Vista switch is long or you are using a wireless keyboard and mouse. If your system only switches video, the power adapter must be used. -
Page 10: Vista Kvm-Series Models

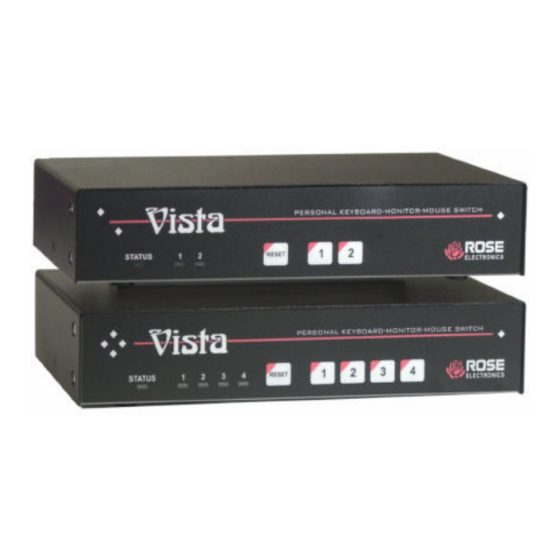

MODELS Vista KVM-Series models Figure 2. Vista 2 port Figure 3. Vista 4 port Status LED Select LEDs Reset button CPU Select buttons (1 – 2 or 1 – 4) Table 2. Front panel description Vista KVM-Series Installation and Operations Manual Lit when selected CPU has power. -
Page 11: Table 3. Vista 2Uph/4Uph Description
KVM-2UPH rear connectors KVM-4UPH rear connectors Label (2UPH) 1,2 (4UPH) 1,2,3,4 Monitor Mouse Keyboard Table 3. Vista 2UPH/4UPH description * KVM-2/4UPMH models do not have a serial mouse connector Vista KVM-Series Installation and Operations Manual Connector type Description DB25F Computer connectors DB25F Computer connectors HD15F... -
Page 12: Table 4. Vista 2Pca/4Pca Description
KVM-2PCA rear connectors KVM-4PCA rear connectors Label Monitor Mouse Keyboard Table 4. Vista 2PCA/4PCA description * KVM-2/4UPMH models do not have a serial mouse connector Vista KVM-Series Installation and Operations Manual Connector Type Keyboard (MiniDin-6F) Mouse (MiniDin-6F) Video (HD15F) HD15F MiniDin-6F or DB9F MiniDin-6F or... -
Page 13: Installation
INSTALLATION Installation Installation of the Vista switch consists of the following steps: 1. Connect the KVM station to the Vista switch 2. Connect the CPUs to the Vista switch 3. Sequentially apply power, boot the CPUs 4. Verify keyboard, mouse and CPU operation It is recommended that the CPUs be powered off. -
Page 14: Step 2 - Connect The Cpus
Step 3 - Applying power It is recommended that each connected CPU be booted up starting with the CPU connected to Port #1. Switch the Vista to the CPU port by pressing the appropriate numbered button on the front panel (1-2 or 1-4). -
Page 15: Figure 6. Vista To Crystalview
Rack mounting The Vista switch is designed to mount in a CPU rack or under a desktop. Rackmount kits are available in three different sizes, 19", 23", and 24". Each is 1 rack unit high (1.75"). (See Appendix D and Appendix E for rack mounting instructions.) Your Vista switch is now ready for operation using the initial factory settings. -
Page 16: Operating Instructions
OPERATIONS Operating instructions The Vista switch is very easy to operate. Computer selection and set-up functions are entered from the keyboard. You can also select computers manually from the Vista’s front panel by using buttons 1-2 or buttons 1-4 depending on your model. -
Page 17: Table 5. Keyboard Commands
Keyboard commands (continued) Command Key Sequence Maximum <Ctrl> P x <Enter> computers (x = 1 – 2 or 1 – 4) Typematic <Ctrl> Ax <Enter> value See Attachment F. Mouse type <Ctrl> Q x <Enter> Where: x = 0 for PS/2 x = 1 for Serial x = 2 for Wheel x = 3 for MAC ADB... -
Page 18: Keyboard Command Description
To select a computer from your keyboard, press and release the left <Ctrl> key and then type in the computer number (1-2 or 1-4). Next computer To switch to the “Next computer”, press and release the left <Ctrl> key, then press the plus/equal key. Previous computer To switch to the “Previous computer”, press and release the left <Ctrl>... - Page 19 “R”. This command is used to reset the mouse and keyboard on the currently selected Vista port without removing power from the Vista switch. This is most useful to reset a PS/2 mouse that has been unplugged and plugged back in. Upon issuing this command, all keyboard LEDs will go on and then return to their previous state.
- Page 20 Maximum computers Press and release the left <Ctrl> key, type “P”, enter the total number of computers, and press <Enter>. This command limits the number of computers to scan. For example on an four-port unit, if no computers were connected to ports 3 and 4, setting maximum computers to 2 would bypass scanning computers 3 and 4.
-
Page 21: Flash Upgrade Procedure
In order for the KVM Utility to detect the correct device to flash, it must be connected directly to a PC and the PC must be connected to port 1 on the switch. Running the KVM Utility When the KVM Utility has been successfully installed, it can now be run. - Page 22 6. The updated firmware file (xxxx.hex) will be installed on the unit 7. The Flash Upgrade utility can also be used to configure the KVM switch. Click on "File", then "Configure Device". The configuration screen will display, allowing you to configure the "MaxPorts", keyboard and mouse type for each port and other...
- Page 23 8. When the firmware has been successfully installed the unit is now operational with the firmware upgrade. A more comprehensive explanation of the firmware upgrade process can be viewed by clicking on "Help". The on-line help walks you through each step in detail Vista KVM-Series Installation and Operations Manual...
-
Page 24: Troubleshooting
Cable is defective; try using a cable from another CPU. If the problem goes away cable is defective. Port on the Vista switch is defective; try using another port. If the problem goes away port is defective. Port on CPU is defective, try plugging in keyboard or mouse directly. - Page 25 Video fuzzy Cable too long or wrong type. Use coax cable for high resolution. Mouse does not move The Vista is turned off after or not connected when CPU was booted or the application using the mouse was run. Exit and re-enter application or operating system using mouse or issue reset command.
-
Page 26: Maintenance And Repair
Technical support If you are experiencing problems, or need assistance in setting up, configuring or operating your switch, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support Department at: Phone: (281) 933-7673 E-Mail: TechSupport@rose.com... -
Page 27: Safety
SAFETY Safety This Vista switch has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the Vista switch should be used with care. To protect yourself from possible injury and to minimize the risk of damage to this Unit, read and follow these safety instructions. - Page 28 Safety and EMC regulatory statements Safety Information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death. CAUTION A CAUTION in the manual denotes a hazard that can damage equipment.
- Page 29 Safety and EMC regulatory statements Informations concernant la sécurité Symbole de référence à la documentation. Si le produit est marqué de ce symbole, reportez-vous à la documentation du produit afin d’obtenir des informations plus détaillées. WARNING CAUTION Ne continuez pas au-delà d’une rubrique WARNING ou CAUTION avant d’avoir bien compris les conditions présentant un danger et pris les mesures appropriées.
-
Page 30: Appendix A. Initial Factory Settings
Typematic Value Mouse translation Press and hold computer select buttons 1 and 2 and press the reset button to reset the Vista switch to the factory settings listed. All other settings remain unchanged. Vista KVM-Series Installation and Operations Manual Default Value... -
Page 31: Appendix B. Parts And Cables
Appendix B. Parts and cables Vista Part Numbers KVM-2/4PCA KVM-2/4UPH KVM-2UPMH KVM-4UPMH Note: KVM2UPMH has CPU port 2 pre-configured for MAC KVM-4UPMH has CPU ports 3 & 4 pre-configured for MAC CPU Adapter Cables for Models with DB25 Connectors Part Number CAB-CX0606Cnnn CAB-ZX0606Cnnn CAB-CXUSBCnnn... -
Page 32: Appendix C. General Specifications
RM-UM19 RM-UM23 RM-UM24 Rm-UD-1U Appendix C. General specifications Size Weight Environment Input Power CPU Connectors Video Connector Keyboard Connector Mouse Connector Chassis Controls Indicators Vista KVM-Series Installation and Operations Manual Rackmount Kits Black anodized, for installation in 19" racks. Black anodized, for installation in 23" racks. -
Page 33: Appendix D. Rack Mount Instructions
The following general guidelines should be observed when installing your unit into a rack. 1. The Vista switch is designed to work in an ambient temperature of 0 C to 55 C (32 F – 131 F). 2. Do not block power supply vents or otherwise restrict airflow when rack-mounting this unit. -
Page 34: Appendix F. Typematic Rate
Appendix F. Typematic rate Typematic Command Press the left <Ctrl> key, type “A”, enter the typematic value (1-3 digit) followed by <Enter>. The typematic value is determined from the following tables using the equation: Typematic Value = Rate value + Delay Value. Pick the desired rate in keys/sec. - Page 36 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
