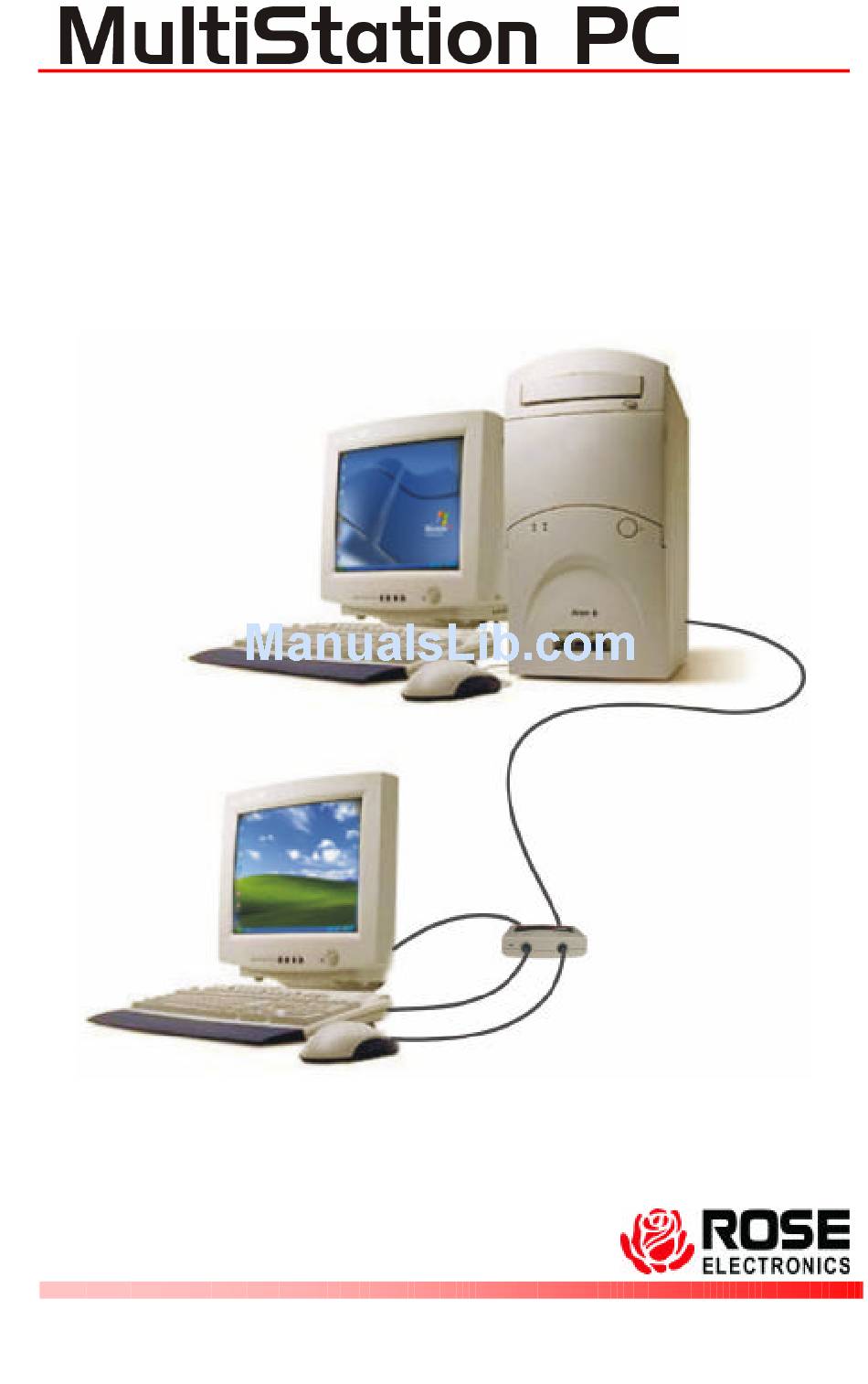

- Page 1 PC SHARING SYSTEM INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
-
Page 2: Limited Warranty
® Rose Electronics warrants the MultiStation PC™ to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. - Page 3 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer ... 1 System introduction ... 1 Features ... 2 Compatibility ... 3 Package contents ... 3 Hardware... 4 Cables ... 5 Installation ... 6 Pre-installation requirements ... 6 Installing the PCI card... 7 Installing the Remote user module ... 8 Applying power ... -
Page 5: Disclaimer
The MultiStation PC system consists of a PCI card and the remote user module. The PCI card installs in an unused PCI slot in the computer being shared. -
Page 6: Features
Features With the MultiStation PC you get all the benefits of a second computer without the expense of purchasing another computer. Allows multiple users to use one computer at the same time. Video resolution up to 1280 x 1024 x 16 bit High Color at 60 Hz Each user can work independently on the same or different application with no interference. -
Page 7: Compatibility
Rose Electronics web site Visit our web site at www.rose.com for MultiStation PC product software updates and additional information on other products that are designed for data center applications, classroom environments and other applications. -
Page 8: Hardware
Rear § RJ45 CAT5 cable connection § HD15M VGA monitor connection PCI card § RJ45 CAT5 cable connection § Dip Switch Configuration setting switches MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL Front Remote user module Rear Remote user module PCI card... -
Page 9: Cables
15 feet of standard CAT5 STP “solid core” cable terminated with RJ45 connectors (included). Rose Electronics cable part number CAB-08STPnnn. The maximum length of CAT5 cable that should be used is 50 feet (optional). MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL Local User Remote User Module... -
Page 10: Installation
Please refer to the safety section first before proceeding with any installation or configuration of the MultiStation PC. Installation of the MultiStation PC is an addition to Microsoft Windows XP or Windows 2000 operating system and must be performed correctly. Due to the variations in computer systems, installation of the MultiStation PC on non-approved hardware may require assistance. -
Page 11: Installing The Pci Card
Installing the PCI card Figure 2. PCI card Note: The two dipswitches located on the MultiStation PC’s PCI card should initially be in the “OFF” position (Default shipped position). If the dipswitches are not in the “OFF” position, set them both to the “OFF”... -
Page 12: Installing The Remote User Module

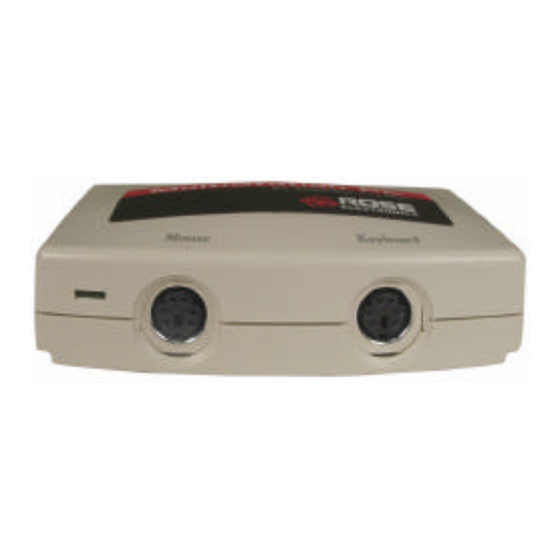

Remote User Station Figure 3. Remote user module Connect the CAT5 cable from the Remote user module’s RJ45 connector to the RJ45 connector on the MultiStation PC’s PCI card. Applying power Turn on both the local computer’s monitor and the remote video monitor and turn on the shared computer. -
Page 13: Installing The Software
Login to Windows XP or 2000 with an account that has administrator privilege. Close any applications that might be running and insert the MultiStation PC CD. If the installation procedure does not start automatically, run the “Index.htm”... -
Page 14: Figure 6. User Information
When all information has been entered, click "Next". Figure 6. Destination folder You can install the MultiStation PC software in the default folder name “C:\Program Files\MultistationPC\” or change it to a folder name of your choosing by clicking on the “Browse” button. -
Page 15: Figure 8. Installation Successful
Figure 7. Installation successful When the installation is complete, the final “Finish” screen will display. (Figure 7). Click on the “Finish” button and restart the computer to initialize and load the MultiStation PC software. MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL... -
Page 16: User Operation
Due to the many differences in motherboards, Bios, and system configurations, some configuration of the MultiStation PC’s PCI card or the system BIOS may be needed to correct the video problem. The MultiStation PC, once installed and configured if needed, allows two users to independently use a single computer. -
Page 17: Figure 10. Station Properties
The “Station” tab displays information about the selected station. Figure 10. Station options The ‘Option” tab (Figure 10) allows you to name the station, assign a Logon program, logon program folder, and automatically turn the station on when the system starts. MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL... -
Page 18: Figure 12. Start/Stop Window
“No”. Check the item whose value is “No” and click on the “Reset” button. This will reinitialize the user module, keyboard, and mouse. The value should change from “No” to “Yes” for that item. MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL... -
Page 19: Figure 14. Broadcast Message Screen
Type in your message in the message box and click “OK”. The text message will display on the other station in a pop-up message box (Figure 14). Figure 14. Message box MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL... -
Page 20: Service Information
Technical Support If you are experiencing problems, or need assistance in setting up, configuring or operating your MultiStation PC, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support... -
Page 21: Safety
The MultiStation PC has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the MultiStation PC should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. - Page 22 Servicing There are no user-serviceable parts inside these products. Only service-trained personnel must perform any servicing, maintenance, or repair. The user may adjust only items mentioned in this manual. MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL...
-
Page 23: Troubleshooting
OPTION 1 – Change dipswitch settings First verify that the two dipswitches located on the MultiStation PC’s PCI card are both in the “OFF” position. (Refer to Figure 1) If the dipswitches are not in the “OFF” position, shut down the computer, set both switches to “OFF”... - Page 24 MultiStation PC’s PCI card and move your PCI video card to the slot that was occupied by the MultiStation PC’s PCI card. Do not install the MultiStation PC’s PCI card at this time. Re- boot your system and Windows XP will recognize the new hardware and install it.
-
Page 25: Appendices Appendix A. General Specifications
Max power to keyboard – 1W (0.1A, 5V) Environmental Operating temp. 34° to 104°F (0° to 40° C) Storage temp. -40°F to 140°F (-40° to 60° C) Humidity - Approvals FCC Class B, CE MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL 20% to 90% non-condensing... -
Page 26: Appendix B. Parts And Cables
ASUS P4P800S-X ECS “848P-A V2.0” (848p Chipset Motherboard for Intel Socket ECS “865PE-A” i865PE Chipset Motherboard for Intel Socket 478 EPoX “EP-4PDA3I-3” i865PE Chipset Motherboard for Intel MULTISTATION PC INSTALLATION AND OPERATIONS MANUAL Description MultiStation PC PCI card /Module CAT5 cable... - Page 28 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
