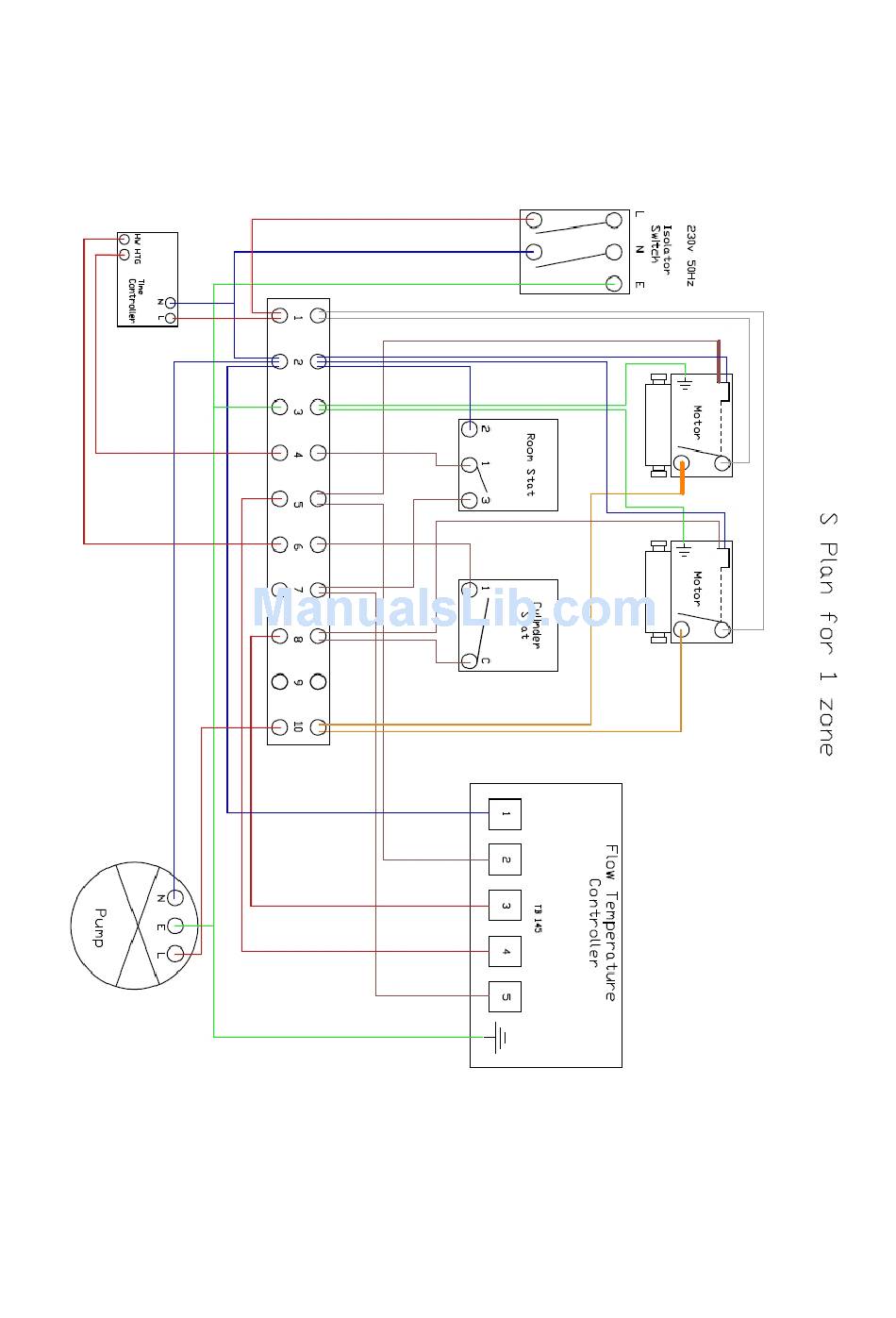

Detailed Honeywell wiring diagram
EcoDan Main Supply
The main supply for the EcoDan should be installed to the exterior wall within 1m of the EcoDan. The
supply should terminate at a waterproof isolator, and should be to the right hand side of the unit.
EcoDan Installation Manual Version 1.0 (26/01/09)
Ice Energy Heat Pumps Ltd © 2008
