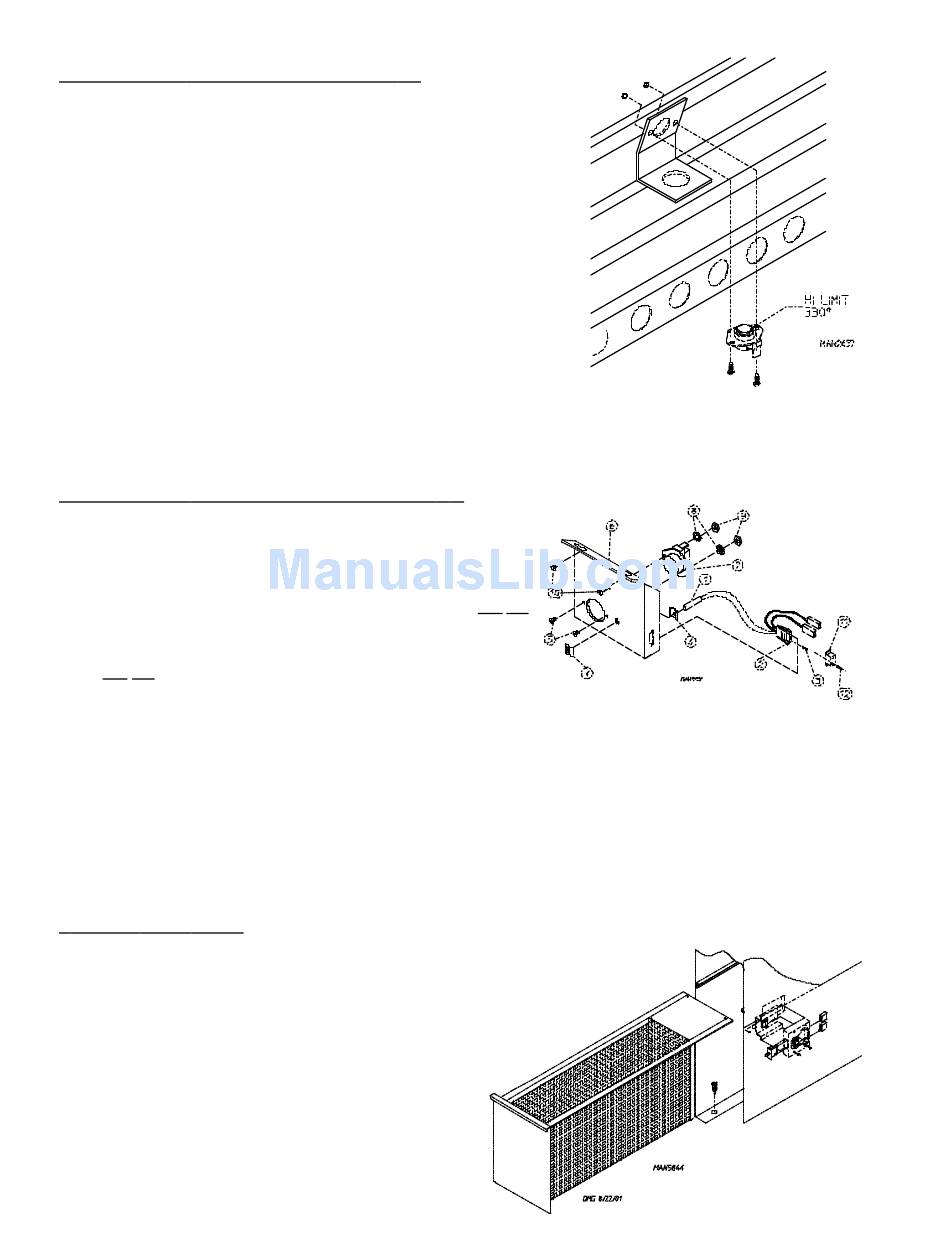

N. HI-LIMIT (GAS MODELS ONLY)
A hi-limit thermostat is located at the burner. This is an automatic
reset disc-type thermostat set at 330º F (166º C). If the flame in
the burner should get too hot, this thermostat will shut off the
burner. This is generally caused by low airflow through the dryer.
O. AUTOMATIC RESET THERMOSTAT
This is located inside the dryer in the lint compartment above the
lint drawer. This thermostat senses the heated air after it has
passed through the basket (tumbler). If the air temperature gets
too hot, the thermostat will shut off the burner. The dryer will not
run until the air temperature cools down. At this time, the
thermostat will reset. Basket (tumbler) and blower will run, but
dryer will not heat.
P. LINT DRAWER
The lint drawer is a pullout type and is located at the
bottom of the dryer in the lint compartment. Simply
grab the lint drawer handle, slide out the drawer, brush
off the lint, and slide the drawer back in. The lint
screen must be kept clean in order for the dryer to
operate properly and efficiently.
14
