Source Input Wall Plate Setup

The system supports up to four audio input sources. Each audio
source component connects to a source input wall plate (Model
ENC-SIWP).
The source input wall plates can connect to analog stereo audio,
coaxial digital audio, or optical digital audio provided by the source
component. The audio input type is selected by the input selector
switch on the face of the wall plate.

Input Gain Switches

The source input wall plate has internal switches for adding gain to
low level audio signals. In most cases these switches can be left in
the OFF position for no increase in gain.
To add gain to the audio signal at the wall plate, set the switches
as shown in the table below:
GAIN
RIGHT CHANNEL
1
+0db
OFF
+4db
ON
+8db
OFF
+10db
ON
The clipping indicator will light if the signal level is too high.

IR Out Connection

The source input wall plate features an IR OUT jack for connection
to an infrared emitter. The infrared emitters have an adhesive back
so they can be attached to the source component's faceplate near
the component's infrared sensor. Each keypad has an infrared
sensor that will repeat a remote control's signal using the emitters.
This allows controlling the selected source component remotely
from any keypad location.

Source Input Wall Plate Installation

Source input wall plates should be mounted in locations where
audio source components will be placed. Each source component
will have an audio connection to the wall plate using coax or optical
cable, and an infrared emitter wire connection.
For installations where the audio source components are located
in the same vicinity, a double, triple, or quad J-box can be used to
mount multiple source input wall plates.
1.
Determine the location for the source input wall plates and install one or
more J-boxes.
2.
Route Cat-5 cable from the hub to each of the source input wall plate
locations.
3.
Connect the cables to the Type 110 punch-down
connectors on the hub. Use Type RJ-45 connectors on the wall plate end
of the cable.
4.
Install the wall plate into the J-box and cover it using a Decora type wall
plate.
110 PUNCH DOWN
STANDARD FOR
CAT-5 CABLE
WIRE ALL 110 PUNCH DOWN
CONNECTORS THIS WAY
BLUE POST

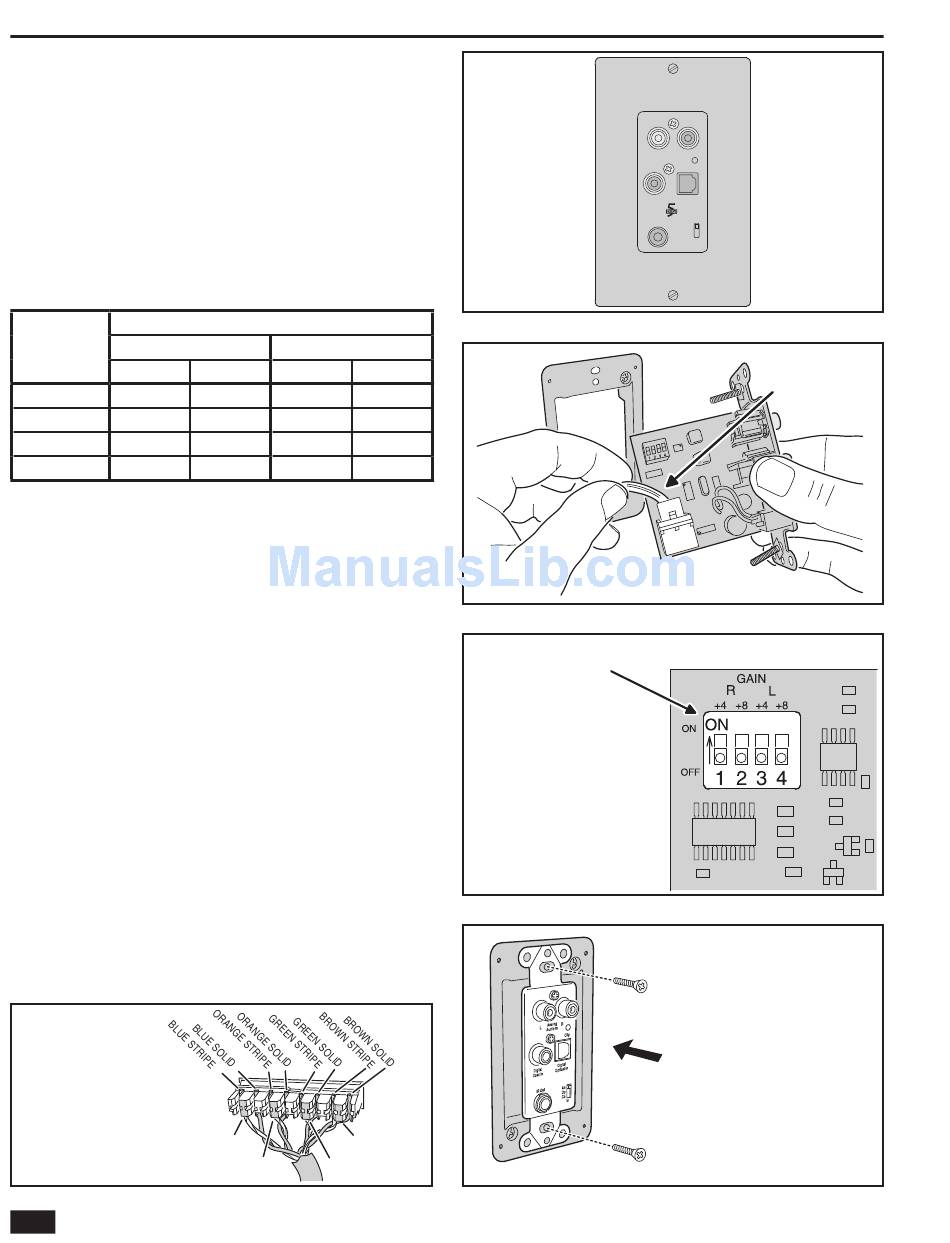

Figure 9.
Source Input Wall Plate
6
SWITCH #
LEFT CHANNEL
2
3
OFF
OFF
OFF
ON
ON
OFF
ON
ON
SOURCE INPUT
BROWN POST
ORANGE POST
GREEN POST
Figure 10.
4
OFF
OFF
ON
ON
Figure 11.
GAIN SWITCHES
SWITCHES 1-2
ADD GAIN FOR
THE RIGHT CHANNEL
SWITCHES 3-4
ADD GAIN FOR
THE LEFT CHANNEL
Figure 12.
Figure 13.
Audio
L
R
In
Clip
Coax In
Optical In
IR Out
Analog
Optical
Coax
Source Input Wall Plate
Source Input Wall Plate Connection
Source Input Wall Plate Gain Switches
INSTALL SOURCE INPUT
WALL PLATE INTO THE
J-BOX AND SECURE IT
WITH THE TWO MOUNTING
SCREWS
Source Input Wall Plate Mounting
CONNECT CAT-5
CABLE FROM HUB
TO WALL PLATE
