Linear ENC-PS Installation Instructions

Multi-Room Audio
Distribution System
ENC-PS
Power
Supply
Installation
Instructions
USA & Canada (800) 421-1587 & (800) 392-0123
(760) 438-7000 - Toll Free FAX (800) 468-1340
www.linearcorp.com
3. CABINET WITH AC OUTLET INSTALLED
STRUCTURED
WIRING
ENCLOSURE
(LINEAR
H312KIT
ENCLOSURE
SHOWN)
120 VAC OUTLET IN J-BOX
INSTALLED BY LICENSED ELECTRICIAN
1. PRODUCT DESCRIPTION
The Encore power supply (Model ENC-PS) is a new or
replacement power supply for the Encore Multi-Room Audio
Distribution System.
This switching power supply is designed for structured
wiring grid mounting in Linear's structured wiring enclosures
and on Linear's structured wiring mounting brackets.
The AC line cord connects the 120 VAC supply. The
two-terminal low voltage connector on the 26 VDC
output connects to the system's music distribution hub
(Model ENC-HUB).
An internal green power indicator lights when the supply is
operating and is visible through the unit's case vents.

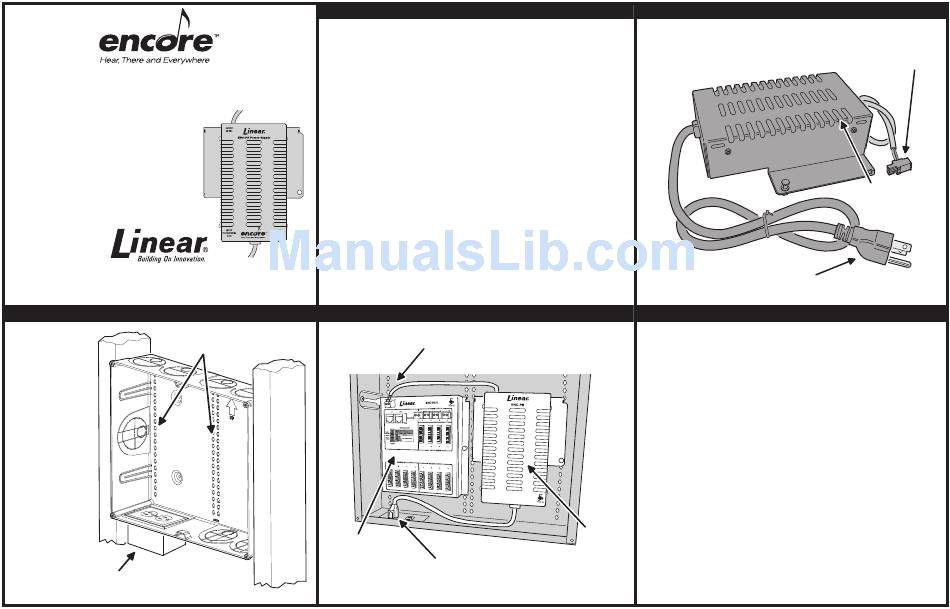

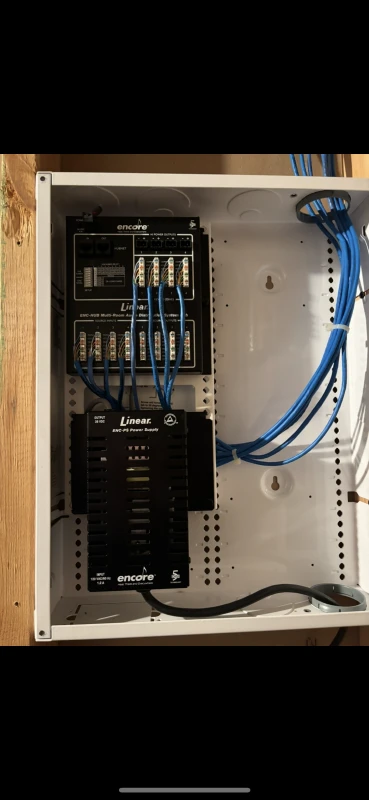

4. HUB AND POWER SUPPLY INSTALLATION
MOUNTING
GRID
ENC-HUB
(LINEAR MODEL H336
ENCLOSURE SHOWN)
CONNECT POWER SUPPLY
OUTPUT CABLE TO HUB
POWER INPUT CONNECTOR
ENC-PS
CONNECT POWER SUPPLY
INPUT CABLE TO 120 VAC
OUTLET IN WIRING ENCLOSURE
2. POWER SUPPLY FEATURES
ENC-PS
POWER INPUT
120 VAC
LIMITED WARRANTY
This Linear product is warranted against defects in material and
workmanship for twenty four (24) months. This warranty extends only
to wholesale customers who buy direct from Linear or through Linear's
normal distribution channels. Linear does not warrant this product to
consumers. Consumers should inquire from their selling dealer as to the
nature of the dealer's warranty, if any. There are no obligations or liabilities
on the part of Linear LLC for consequential damages arising out of or
in connection with use or performance of this product or other indirect
damages with respect to loss of property, revenue, or profi t, or cost
of removal, installation, or reinstallation. All implied warranties, including
implied warranties for merchantability and implied warranties for fi tness, are
valid only until the warranty expires. This Linear LLC Warranty is in lieu of
all other warranties express or implied.
All products returned for warranty service require a Return Product
Authorization Number (RPA#). Contact Linear Technical Service at 1-800-
421-1587 for an RPA# and other important details.
Copyright © 2009 Linear LLC
POWER OUTPUT
26 VDC @ 1.2 A
POWER
INDICATOR
(INSIDE CASE)
227876 A
