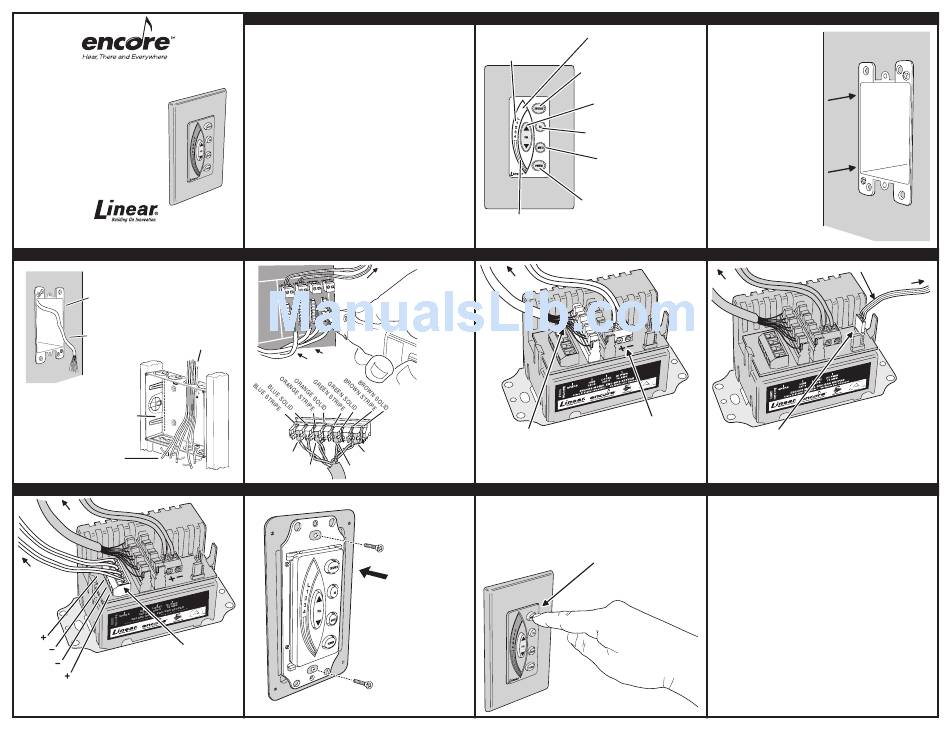

Linear ENC-DRS Installation Instructions

Multi-Room Audio
Distribution System
ENC-DRS
Keypad
Installation
Instructions
USA & Canada (800) 421-1587 & (800) 392-0123
(760) 438-7000 - Toll Free FAX (800) 468-1340
www.linearcorp.com
4. ROUTE CAT-5 CABLE FOR KEYPAD
MAXIMUM WIRE RUN:
300 FEET OF CAT-5 CABLE
FROM SYSTEM HUB TO
KEYPAD
ANY KEYPAD
J-BOX
CAT-5 CABLES
FROM KEYPADS AND
CAT-5 CABLE SOURCE INPUT
TO HUB WALL PLATES
ENCLOSURE
UP TO FOUR KEYPADS
CAN BE USED WITH
STRUCTURED
EACH SYSTEM HUB
WIRING
ENCLOSURE
LABEL KEYPAD
AND WALL PLATE
LOCATIONS ON
CABLES
8. CONNECT SPEAKERS TO KEYPAD
TO HUB
TO
SPEAKERS
RIGHT
RIGHT
SPEAKER TERMINAL BLOCK
LEFT
LEFT
CONNECT SPEAKERS
TO THE KEYPAD
WITH 16 AWG WIRE
1. PRODUCT DESCRIPTION
The Encore keypad (Model ENC-DRS) serves as a speaker zone
controller for the Encore Multi-Room Audio Distribution System. Up to
four keypads can be connected to each hub. Each keypad in the system
selects its speaker zone's audio source, controls the volume, tone,
balance, loudness, and all other functions of the system. The keypad
contains a Class D digital stereo amplifier with 60 watts maximum output
power (30 watts per channel) and is designed to connect to a pair of
6 or 8-ohm speakers.
The keypad connects to the hub with Cat-5 cable and mounts in a
single-gang J-box. For maximum output installations, four independent
high current power supply outputs are provided on the hub for supplying
dedicated power to the keypads through 2-conductor 16 gauge wire.
At each speaker zone, the keypad selects between the four primary
hub audio sources from source input wall plates (Model ENC-SIWP), or
from its local audio source connected to a local input wall plate (Model
ENC-LIWP).
The system features IR remote control. An infrared repeater system
monitors the infrared receivers at each keypad and repeats the infrared
remote control signals to the audio source components through infrared
emitters connected to the wall plates. IR emitters are sold in a 4-pack
as Model 2171-4.
5. PUNCH DOWN CABLE AT HUB
16 AWG POWER
USE A 110 PUNCH DOWN
TO KEYPADS
TOOL TO CONNECT CAT-5
(OPTIONAL)
FROM THE KEYPADS TO
THE HUB
ENC-HUB
FROM KEYPADS
110 PUNCH DOWN
STANDARD FOR
CAT-5 CABLE
WIRE ALL 110 PUNCH DOWN
CONNECTORS THIS WAY
BLUE POST BROWN POST
ORANGE POST GREEN POST
9. INSTALL WALL PLATE
INSTALL KEYPAD INTO
THE J-BOX AND SECURE
IT WITH THE TWO
MOUNTING SCREWS
INSTALL COVER PLATE
MOUNTING RING WITH
TWO SCREWS AND
SNAP ON COVER PLATE
2. KEYPAD FEATURES
IR SENSOR
SOURCE INDICATORS
DETECTS INFRARED SIGNALS FROM
SHOW SELECTED
REMOTE CONTROLS, SYSTEM PASSES
AUDIO SOURCE
IR TO EMITTERS AT INPUT WALL PLATES
SOURCE BUTTON
SELECTS INPUT SOURCE,
SELECTS WHOLE-HOUSE MODE
VOLUME BUTTON
ADJUSTS VOLUME, EQUALIZER,
AND AUDIO DYNAMICS OPTIONS
EQ BUTTON (EQUALIZER)
SELECTS EQUALIZER MODE
MUTE BUTTON
MUTES THE SOUND FROM THE
KEYPAD'S SPEAKER, SELECTS
DO NOT DISTURB MODE FOR
THE KEYPAD
POWER BUTTON
TURNS KEYPAD POWER ON OR OFF,
VOLUME INDICATORS ALSO CAN TURN SYSTEM POWER OFF
DISPLAYS THE KEYPAD'S VOLUME
AND EQUALIZER SETTINGS
6. CONNECT CABLE TO KEYPAD
TO HUB
CONNECT 16 AWG
POWER WIRE IF
PUNCH DOWN CAT-5
HI POWER HUB
CABLE FROM HUB
OUTPUTS ARE USED
TO KEYPAD HUB
(OPTIONAL)
CONNECTOR
10. POWER UP AND TEST
AFTER THE INSTALLATION IS COMPLETE, APPLY POWER
TO THE SYSTEM AND PLAY AUDIO FROM ALL CONNECTED
AUDIO SOURCE COMPONENTS
VERIFY THAT SOUND IS HEARD AS EACH ACTIVE SOURCE
IS SELECTED FROM EACH KEYPAD
3. INSTALL JUNCTION BOX
INSTALL A SINGLE-GANG
JUNCTION BOX 56" TO 60"
ABOVE THE FLOOR FOR
THE KEYPAD
BE SURE THAT THE KEYPAD
IS NOT MOUNTED IN THE
SAME JUNCTION BOX WITH
120 VAC WIRING
7. EXTERNAL IR TARGET (OPTIONAL)
RED
TO REMOTE
IR TARGET
TO HUB
PLUG REMOTE IR
SENSOR INTO
EXTERNAL IR
CONNECTOR
LIMITED WARRANTY
This Linear product is warranted against defects in material and
workmanship for twenty four (24) months. This warranty extends only
to wholesale customers who buy direct from Linear or through Linear's
normal distribution channels. Linear does not warrant this product to
consumers. Consumers should inquire from their selling dealer as to
the nature of the dealer's warranty, if any. There are no obligations
or liabilities on the part of Linear LLC for consequential damages
arising out of or in connection with use or performance of this
product or other indirect damages with respect to loss of property,
revenue, or profit, or cost of removal, installation, or reinstallation.
All implied warranties, including implied warranties for merchantability
and implied warranties for fitness, are valid only until the warranty
expires. This Linear LLC Warranty is in lieu of all other warranties
express or implied.
All products returned for warranty service require a Return Product
Authorization Number (RPA#). Contact Linear Technical Service at
1-800-421-1587 for an RPA# and other important details.
Copyright © 2009 Linear LLC 228022 B
