System Components; Enc-Hub System Hub; Enc-Ps Power Supply; Enc-Drs Keypad - Linear Encore! Installation & Setup Instructions Manual

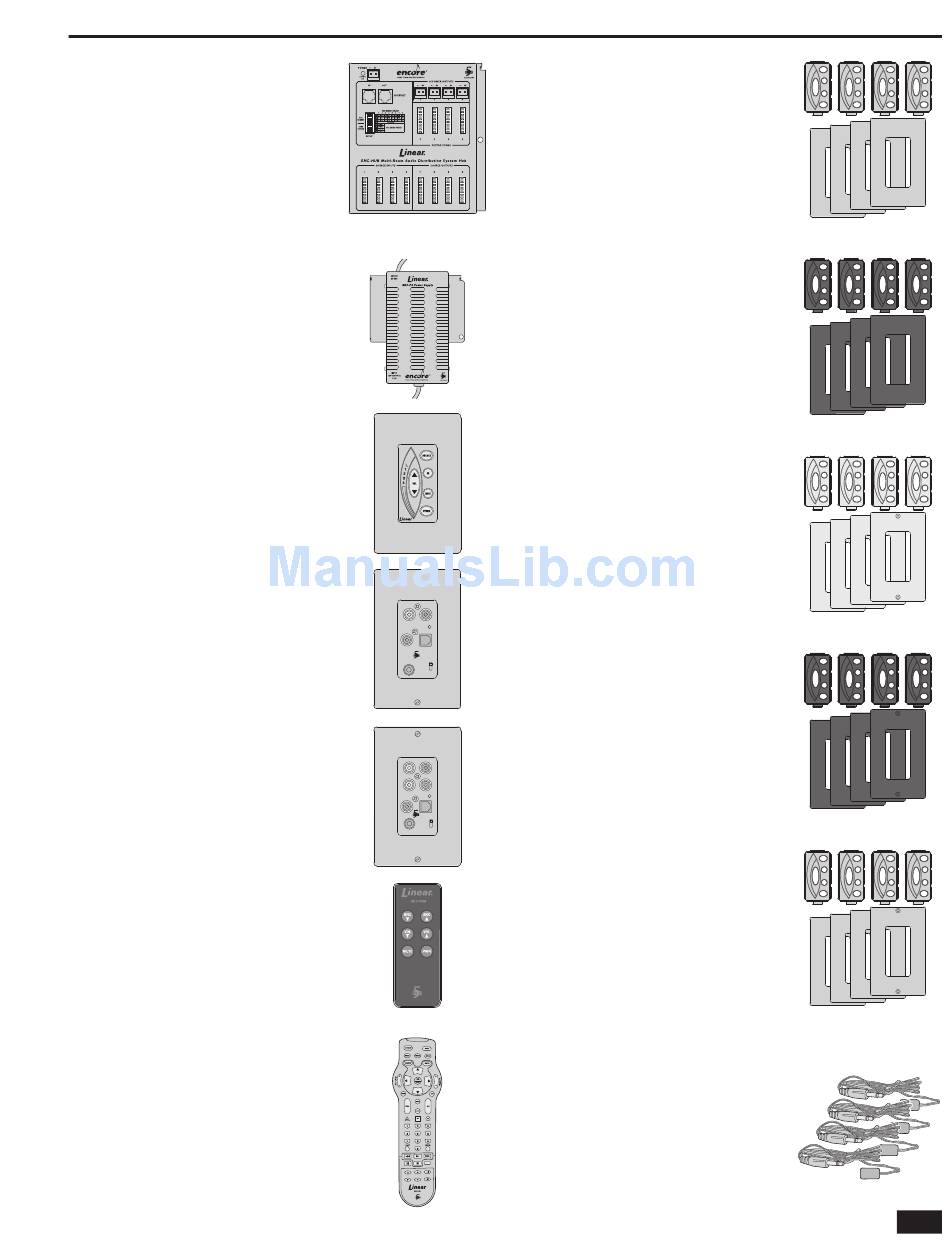

ENC-HUB
System Hub
• Pure digital audio delivers crystal clear
sound to all zones with no signal loss
• Four speaker zones
• Expandable to 32 speaker zones
• Cat-5 wiring
• Mounts in structured wiring
enclosure or on H275 bracket
• Four high power terminals
for long keypad runs
ENC-PS
Power Supply
• 120 VAC input, 26 VDC
@ 8 Amp output
• Output cable has connector for hub
• Green power indicator
• Mounts in structured wiring
enclosure or on H275 bracket
ENC-DRS
Keypad
• Controls speaker zone's volume,
tone, balance, and loudness
• Integrated Class D digital amplifi er
• Built-in IR receiver for IR remote
control of source components
• Blue LED backlit buttons
• White keypad bezel and faceplate
ENC-SIWP
Source Input Wall Plate
• Stereo analog audio inputs
• Coaxial digital and SPDIF
optical digital audio inputs
• High quality analog-to-digital converter
• IR emitter output
ENC-LIWP
Local Input Wall Plate
• Coaxial digital and SPDIF
optical digital audio inputs
• Two stereo analog audio inputs
• High quality analog-to-digital converter
• IR emitter output
ENC-REM
Basic Remote Control
• Miniature size
• Selects audio source
• Adjusts speaker volume
and has mute function
• Remotely controls system power
ENC-LRM
Learning Remote Control
• Remote can learn codes from
other remotes, providing ability
to control source components
from a remote location
• Selects audio source
• Adjusts speaker volume
and has mute function
• Remotely controls system power
• Programmable macros with
up to 19 steps each
ENC-DRSFA-SL-4
Screwless Faceplate Kit
(4-pack) (Almond)
• Four almond keypad bezels
• Four almond screwless faceplates
• Changes keypad color or replaces
damaged or worn faceplate
• For ENC-DRS keypad
ENC-DRSFB-SL-4
Screwless Faceplate Kit
(4-pack) (Black)
• Four black keypad bezels
• Four black screwless faceplates
• Changes keypad color or replaces
damaged or worn faceplate
• For ENC-DRS keypad
ENC-DRSFW4
Faceplate Kit
(4-pack) (White)
• Four white keypad bezels
• Four white faceplates
• Includes matching plate screws
• For changing color or replacing
damaged or worn faceplates
• For ENC-DRS keypad, ENC-SIWP
and ENC-LIWP input plates.
Audio
L In R
Clip
Coax In Optical In
ENC-DRSFB4
IR Out
Analog
Optical
Coax
Faceplate Kit
(4-pack) (Black)
• Four black keypad bezels
• Four black faceplates
• Includes matching plate screws
Audio
In
• For changing color or replacing
1
L R
damaged or worn faceplates
2
Clip
Coax In
• For ENC-DRS keypad.
Optical In
Analog
Optical
Coax
IR Out
ENC-DRSFA4
Faceplate Kit
(4-pack) (Almond)
• Four almond keypad bezels
• Four almond faceplates
• Includes matching plate screws
• For changing color or replacing
damaged or worn faceplates
• For ENC-DRS keypad.
2171-4
Single-head IR Emitter
(4-pack)
• Single-head IR emitter, 4-pack
• Repeats IR signals from keypads
to source components
• Ten foot cord with mini plug
• Adhesive back on emitter

System Components

3
