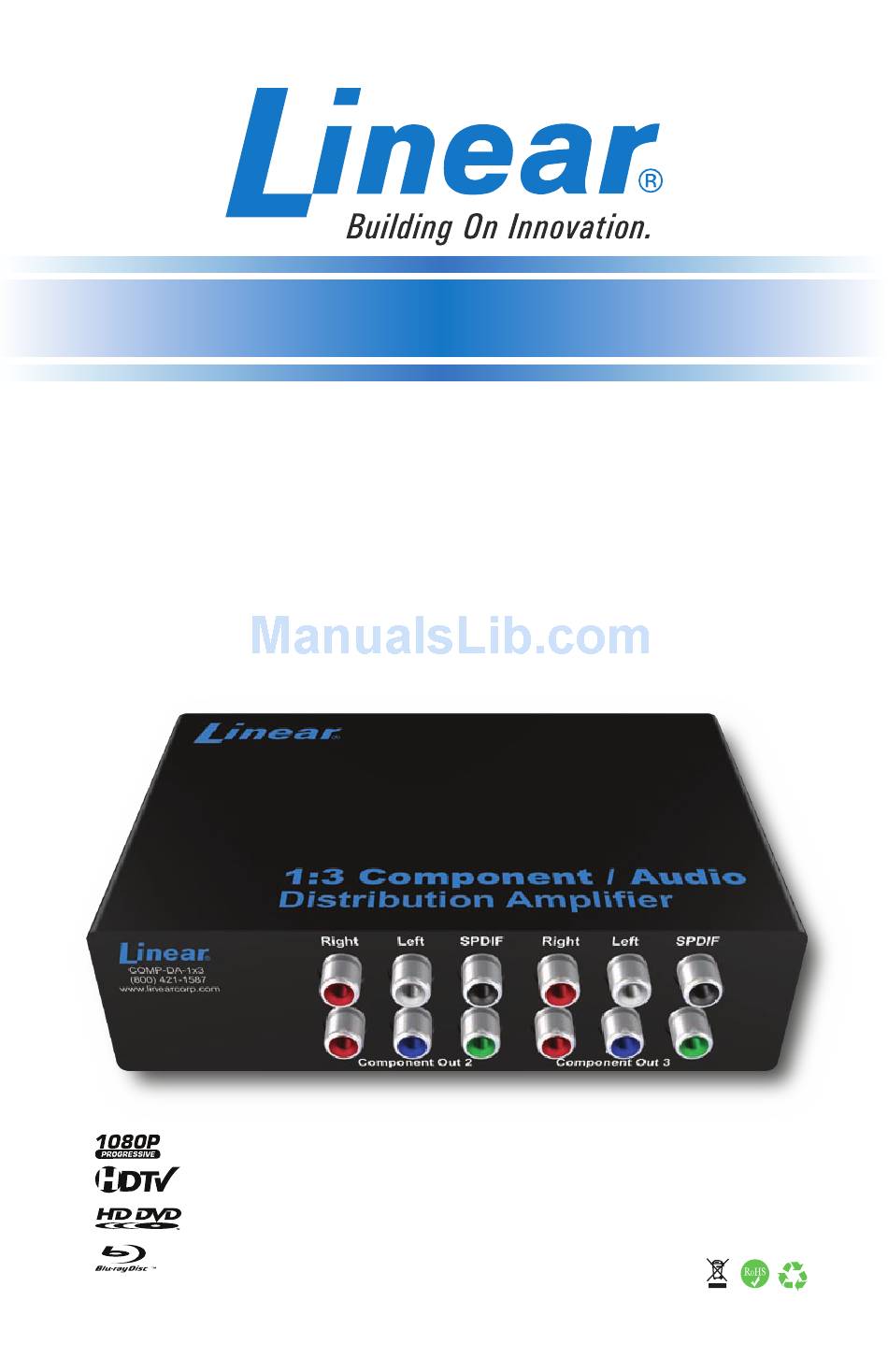

- Page 1 1x3 Component / Audio Distribution Amplifier Model # COMP-DA-1X3 U S E R M A N U A L www.linearcorp.com...
- Page 3 6:30 AM - 4:30 PM PST Monday through Friday. Email: techsupport@linearcorp.com Website: www.linearcorp.com Linear LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. © 2008 Linear LLC, All Rights Reserved ASKING FOR ASSISTANCE (800) 421-1587...
-
Page 4: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 1x3 Component / Audio Distribution Amplifier (DA) and Application Diagram Wiring Diagram Specifications Warranty TABLE OF CONTENTS... -
Page 5: Introduction
INTRODUCTION The Linear 1:3 Component With Audio Distribution Amplifier is the perfect solution for anyone who needs to send one source of high definition component video and analog or digital audio to multiple displays at the same time. It supports all component equipment, such as DVD players and satellite set top boxes and all component displays. -
Page 6: Features
Features • Connects up to three component displays at the same time to one video source • Supports HDTV (Component, YPbPr, RGsB) and SD (Composite, YCbCr) input signals • Supports HDTV resolutions up to 1080p • Both analog and digital audio outputs are active Includes: (1) 1x3 Component / Audio DA (1) 6ft Component cable... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Analog Audio Analog Audio Digital Audio Digital Audio Out 3 Out 2 Out 2 Out 4 Component Component Out 3 Out 2 Analog Audio Digital Audio Analog Audio Digital Audio Out 1 Out 1 Input Input Component Component 5V DC Out 1 Input... - Page 8 Also, Composite video can also be fed into the Component video input to split and distribute Composite video. Multiple COMP-DA-1X3 devices can be daisy chained together to distribute a single Component signal to 13 units maximum, for a total of 27 displays.
-
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Specifications
SPECIFICATIONS Input ... YPbPr x1 or RGsB x1 (or RGBHV), or Composite x 1 (1 Vp-p@ 75 Ohm) Output ... YPbPr x3, or RGsB(or RGBHV), or Composite x 3 Audio input ... Digital (SPDIF) x1 + R/L x1 Audio output ... Digital (SPDIF) x3 + R/L x3 Analog audio input/output ... -
Page 11: Warranty
This Linear LLC Warranty is in lieu of all other warranties express or implied. Some states and countries do not allow limitations or how long an implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the above exclusions may not apply. - Page 12 COM P-D A- 1X 3 Re v A...
